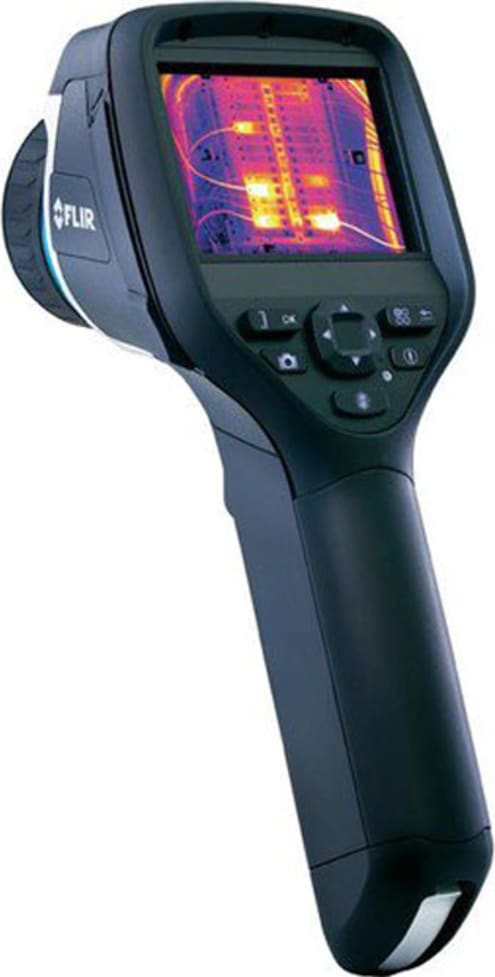

FLIR E50 Compact Thermal Camera (240 × 180 IR Resolution)

Name: FLIR E50 Compact Thermal Camera (240 × 180 IR Resolution)
Brand: FLIR
SKU: FLIRE50
Price: 5995.00 USD
Availability: InStock
Rating: 4.00 (1 reviews)

4 (1 Review) | Catalog: 64501-0201 | UPC: 845188005177 | Model: FLIR E50

Images (15) | Videos (21)

Compare

FLIR E50 IR Camera w/MSX 240 x 180 Resolution/60Hz

High Resolution 240 × 180 (43,200 pixel) infrared imaging
3.1 megapixel digital visible light camera
FLIR Tools Mobile app allows Wi-Fi connectivity to mobile devices
FLIR MeterLink embeds clamp and moisture meter data via Bluetooth
Thermal sensitivity of 0.045°C (45mK)
FLIR MSX thermal fusion
4× digital zoom
Delta T temperature difference function
3 moveable spots and 3 box areas
Isotherm and automatic hot/cold detection marker
3.5” touch-screen LCD
Laser pointer
Manual & Autofocus modes
60 Hz frame rate

View Product Details

List Price: $5,995.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the FLIR E50

FLIR T198509 Cigarette Lighter Adaptor Kit (T10XX, T6XX, GF3XX, EXX, KXX)

Catalog: T198509

(0)

In Stock!

Add to Cart

FLIR T198125 Stand-Alone 2-Bay Battery Charger, Including Power Supply with Multi...

Catalog: T198125

(2)

In Stock!

Add to Cart

FLIR T910814 Power Supply, incl. multi plugs (EXX, T6XX, T10XX, GF3XX)

Catalog: T910814

(0)

In Stock!

Add to Cart

FLIR T911093 Toolbelt for Ex Series

Catalog: T911093

(0)

In Stock!

Add to Cart

FLIR MR40 Moisture Meter Pen

Catalog: MR40

(0)

In Stock!

Add to Cart

FLIR T197771ACC Bluetooth Headset (EXX, T6XX, T10XX)

Catalog: T197771ACC

(0)

In Stock!

Add to Cart

FLIR IRW-2C FLIR IRW InfraRed Window 2" (O.D. 2.87"/73mm)

Catalog: 19250-100

(0)

In Stock!

Add to Cart

FLIR IRW-2S IRW Stainless Steel InfraRed Window 2 inch

Catalog: 19250-200

(0)

In Stock!

Add to Cart

FLIR IRW-3C FLIR IRW InfraRed Window 3" (O.D. 3.9"/99mm)

Catalog: 19251-100

(3)

In Stock!

Add to Cart

FLIR IRW-3S IRW Stainless Steel InfraRed Window 3 inch

Catalog: 19251-200

(0)

In Stock!

Add to Cart

FLIR IRW-4C FLIR IRW InfraRed Window 4" (O.D. 5.01"/127mm)

Catalog: 19252-100

(0)

In Stock!

Add to Cart

FLIR IRW-4S IRW Stainless Steel InfraRed Window 4 inch

Catalog: 19252-200

(2)

In Stock!

Add to Cart

FLIR ITC Level I ITC Level I Thermography Certification (4-Day), per attendee

Catalog: ITC Level I

(0)

In Stock!

Add to Cart

FLIR E50 Thermal Imaging Camera

Industrial Inspection & Building Diagnostics

The FLIR E50 is a powerful handheld thermal imaging camera, part of the FLIR Exx Series. The E50 has a 240 x 180 pixel resolution, as well as 50mK (0.05°C) thermal sensitivity, providing consistently clear and accurate thermal images. The E50 also features 4x continuous digital zoom and a scalable picture-in-picture mode. The E50 thermal imager is designed specifically for electricians, plant maintenance experts, building inspectors, energy auditors, and HVAC professionals who regularly perform and report thermal inspections. The E50 incorporates many features which make creating inspection reports easier and faster, including FLIR MSX, FLIR Tools Mobile, and FLIR MeterLink.

E50 Specifications

High-temperature range up to 650°C/1,202°F
Accuracy of ±2% of reading
60 Hz frame rate for smooth video
3 moveable spots and 3 box areas
Telephoto & wide angle lens options
3.5” LCD touch screen w/ Auto Orientation
Integrated 3.1 megapixel digital camera
Drop Tested to 2 meters

FLIR MSX Thermal Image Enhancement

FLIR MSX is the company's unique take on thermal fusion technology. With MSX enabled on the FLIR E50, highlights and details are extracted from the camera's visible light digital images and overlayed with the identical thermal images. The result, as you can see in the images below, is a much more detailed and easier to read thermal image. Words and numbers can be easily recognized in these images, virtually eliminating the need for visible light reference images and saving time during reporting. MSX can also be enabled when capturing thermal video.

FLIR Tools Mobile

FLIR Tools Mobile is a free Wi-Fi app available for Apple and Android smartphones and tablets. With FLIR Tools Mobile, the E50 can stream video and import images to directly to mobile devices via a wireless internet connection. Once images have been imported to FLIR Tools Mobile, you can use the app to adjust span and level, change palettes, add up to 3 measurement spots, and add additional notes. Once image processing is done, FLIR Tools Mobile can also help you easily create professional reports and distribute them via email. Reporting has never been easier or faster with the FLIR E50.

FLIR MeterLink

FLIR thermal imagers like the E50 have the power to clearly reveal electrical problems, moisture damage and energy loss. However in some cases, more than just simply locating and recording these issues is necessary. With FLIR MeterLink, you can quantify these problems using FLIR or Extech MeterLink-enabled clamp and moisture meters. With MeterLink, these meters can transmit data to the E50 via a Bluetooth connection. This data is then embedded in thermal images, providing you and your colleagues with a more complete picture of the problem at hand.

Digital Camera with LED Light

If you need to generate regular reports from your thermal camera findings, a visible-light camera and built-in light are essential. The FLIR E50 features an integrated 3.1 megapixel digital camera as well as a powerful LED light for capturing sharp, descriptive digital images even in dark areas. The E50 also features a built-in laser pointer for increased shooting accuracy. The laser can be used to pinpoint a reference spot in an image which you can then align a marker to via the E50's touchscreen. These features consistently give images from the E50 a professional level of detail and precision.

Intuitive Touchscreen Interface

Touchscreen technology is a common technology in today's world which has come a long way in a short amount of time. FLIR has incorporated the best and latest touchscreen technology into the E50, meaning its 3.5 inch LCD touch interface is responsive, precise and smooth. FLIR calls this technology Dark Precision. With this technology on the E50, you can instantly tap into multiple temperature measurement tools, image modes, archived JPEGs, data overlays and more. Plus, with FLIR's Auto-Orientation feature, on-screen images and overlays remain upright no matter how the camera is held.

High-Temperature Range & Sensitivity – The FLIR E50 features a high-temperature measurement range, extending from -4 to 1202°F (-20 to 650°C). The E50 also features high thermal sensitivity of 50mK (0.05°C). The combined power of these features allow you to measure hotter-running equipment more accurately.

High Accuracy – The FLIR E50 is accurate to ±2% of reading. This high level of accuracy means you can be confident the E50 will give consistent, repeatable results every time it's used.

Annotations – The FLIR E50 allows you to easily add voice or text comments to images. This makes inspections more streamlined and saves you time during the image analysis process.

Multiple Measuring Modes – The FLIR E50 supports up to 3 spot meters, 3 moveable area boxes with min/max/avg., color alarms, auto hot/cold spot, and Delta T measuring. In addition, the E50 features a scalable picture-in-picture mode with the option to use FLIR MSX.

Accessories – FLIR offers a range of accessories for the E50. Currently available accessories include 15° and 45° lenses, sun shield, tripod adapter, car charger kit, Bluetooth headset, video cable, extra batteries, dual-bay charger, and carrying pouches.

FLIR Warranty

FLIR’s exclusive Double Diamond 2-5-10 warranty covers the whole camera for 2 years, the battery for 5 years, and the detector for 10 full years. To be eligible for this warranty you must register your E50 camera with FLIR within 60 days of purchase. Only FLIR can give you the peace of mind that comes with a warranty program like this because only FLIR makes all of its thermal cameras' critical components from the ground up.

Infrared E50 camera with 25 degree lens
Hard transport case
Battery
Power supply w/ multi-plugs
Calibration certificate
Camera lens cap
Downloads brochure
FLIR Tools software
Handstrap
Memory card
Printed Getting Started Guide
Printed Important Information Guide
Service & training brochure
USB cable
User documentation CD-ROM
Video cable
Warranty extension card

FEATURES	FLIR E40	FLIR E50	FLIR E60
Temperature range	-4 to 1202°F (-20 to 650°C)	-4 to 1202°F (-20 to 650°C)	-4 to 1202°F (-20 to 650°C)
Thermal sensitivity (N.E.T.D)	<0.07°C at 30°C	<0.05°C at 30°C	<0.05°C at 30°C
Detector Type - Focal plane array; (FPA) uncooled microbolometer	160 x 120 pixels	240 x 180 pixels	320 x 240 pixels
MSX ® Thermal Image Enhancement	Yes	Yes	Yes
Picture-in-Picture (P-i-P)	Fixed P-i-P	Scalable P-i-P	Scalable P-i-P
MPEG 4 Video Recording	Yes	Yes	Yes
Video Camera w/Lamp & Laser	3.1MP/LED Lamp/Laser pointer	3.1MP/LED Lamp/Laser pointer	3.1MP/LED Lamp/Laser pointer
Digital Zoom	2X Continuous	4X Continuous	4X Continuous
Image annotation	Voice (60s)/Text Comments	Voice (60s)/Text Comments	Voice (60s)/Text Comments
Moveable Spot	3 Spotmeters	3 Spotmeters	3 Spotmeters
Area Box	3 Area Boxes (full image with min/max/avg)	3 Area Boxes (full image with min/max/avg)	3 Area Boxes (full image with min/max/avg)
Delta T	Yes	Yes	Yes
Data Communication Interface	USB-mini, USB-A, Composite Video, Bluetooth, Wi-Fi	USB-mini, USB-A, Composite Video, Bluetooth, Wi-Fi	USB-mini, USB-A, Composite Video, Bluetooth, Wi-Fi
COMMON FEATURES
Frame Rate	60Hz
Field of view / Focus	25° x 19° / Manual (Minimum focus distance 1.3ft/0.4m)
Spectral range	7.5 to 13µm
Display	Built-in 3.5" color LCD
Image modes	Thermal, visual, MSX, and image gallery
Image Storage	>1000 radiometric JPEG images (SD card memory)
Laser Classification/Type	Mode selector, color palettes, configure image info, units, language, date and time formats, and image gallery
Measurement modes	Auto hot/cold spot, Isotherm (above/below/interval)
Measurement Correction	Reflected ambient temperature & emissivity correction
Battery Type/Operating Time	Li-lon/ >4 hours, Display shows battery status
Charging system	In camera AC adapter/2 bay charging system
Shock/Vibration/Drop / Encapsulation; Safety	25G, IEC 60068-2-29/ 2G, IEC 60068-2-6/ Drop-proof 2m (6.6ft) IP54; EN/UL/CSA/PSE 60950-1
Dimensions/Weight	9.7x3.8x7.2" (246x97x184mm)/<1.82lbs (825g), including battery

Tech Specs

Thermal Imagers/Building and Industrial Thermal Imagers Template
Detector Size	240 x 180 Sensor
Thermal Sensitivity	50 mK (NETD) Thermal Sensitivity <0.05°C at 30°C
Temperature Range Max	1202 F
Temperature Range Min	-4 F
Image Frequency	60 Hz
Field of View	25x19 Degrees
Screen Size	3.5 IN Screen Size Landscape
IR/Overlay Fusion Image	Yes
Video Output	Yes
Focus	Adjustable
Laser Spot	Yes
Picture in Picture	Yes Picture in Picture Scalable
Video Recording	Yes
Moveable Spots	Yes
Touch Screen Display	Yes
Minimum Focus Distance	0.4 M
Accuracy	+/-2%
Battery operating time Continuous	4 HR
Camera Light	Yes
IR Digital Zoom	Yes IR Digital Zoom 4X
Voice Annotation	Yes
Test Equipment General Attributes
Unique Features	MSX Image Enhancement, 3.1MP digital camera, composite video out, Wi-Fi, Bluetooth, text comments, LED lamp, METERLiNK
Warranty	2 YEARS
Warranty Details	10-Year Detector Protection 5-Year Battery 2-Year Parts & Labor (when camera is registered within 60 Days)
Safety Approval	CE, CSA, RoHS, UL
Interfaces I/O	Bluetooth, Wifi, USB
Storage	SD Card
IP Rating	IP54
Product Weight	1.82 LBS
Product Height	7.2 IN
Product Length	9.7 IN
Product Width	3.8 IN
Data Logging	Yes Data Logging Records images on SD card
HTS/Schedule B Number	9027502000
ECCN Number	6A003
Calibration Included	Factory Calibration
Battery Type	Li-ion
Power Supply Voltage	120V/220V Universal
Country of Origin	China
