| Model |

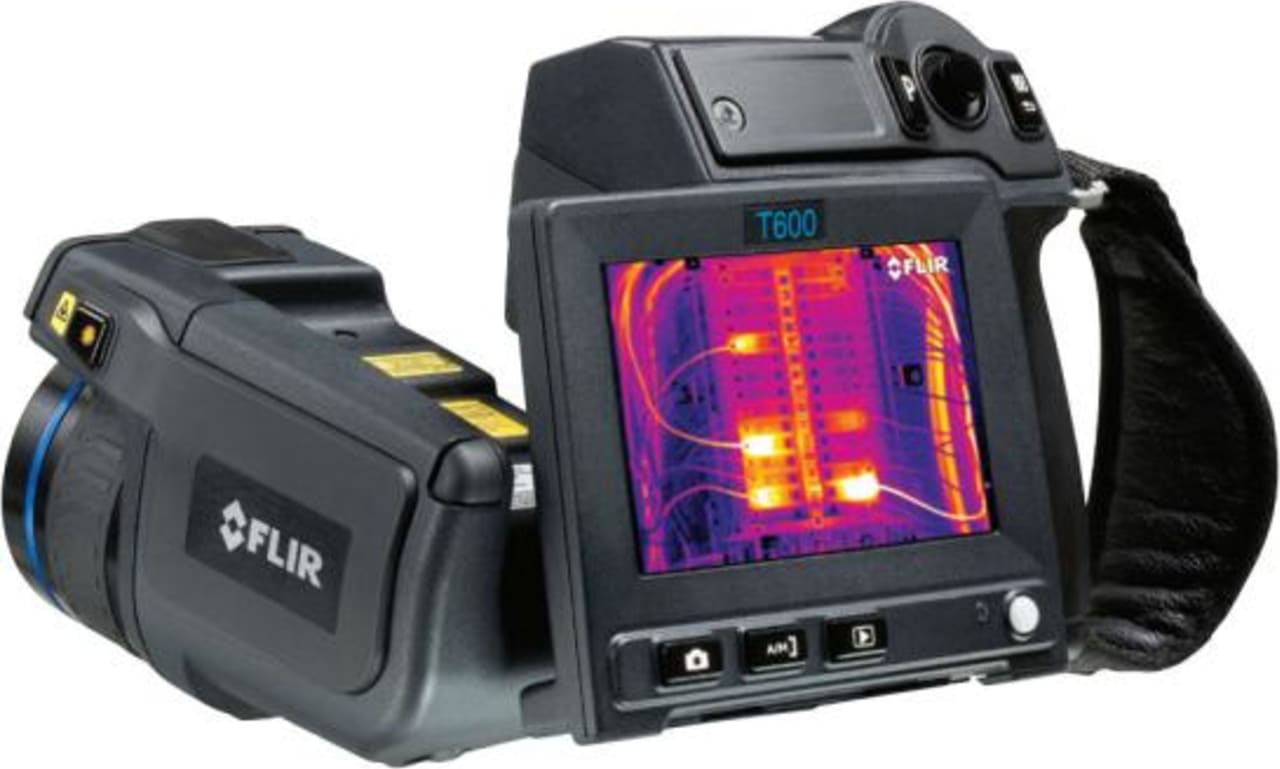

T600-NIST-25 |
T600-NIST-45 |
| Lens Degree |
25° |
45° |
| Temp. range |
-40 to 1202 deg. F (-40 to 650 deg. C) |
| Thermal sensitivit y (N.E.T.D) |
-<0.04 deg. C @ 30 deg. C |
| Digital Zoom |
-4X Continuous |
| Focus |
-Manual or Automatic (one shot) |
| LCD Image Sketch |
-Draw on stored images using the touchscreen |
| Multi-Spectral (MSX) Dynamic Imaging |
-IR imaging w/ enhanced details |
| Frame Rate |
-30 Hz |
| Field of view/Minimum focus distance/FOV Match |
-Built-in touch-screen 4.3" color LCD (800 × 480 pixels) |
| Detector - (FPA) Focal plane array, uncooled micro-bolometer |
-480 x 360 pixels |
| Lens |
-30 Hz |
| Display |
-Built-in touch-screen 4.3" color LCD 800 × 480 pixels |
| Image Modes |
-Thermal/Visual/Fusion/P-i-P/MSX (Resizable and movable ) and Thumbnail Gallery |
| Auto Image Adjustments |
-Continuous/manual; linear or histogram based; possible to lock max, min or span temperature |
| Manual image adjustments |
-Level / span / max / min |
| Imaging Storage |
-1000 JPEG radiometric images - SD memory card |
| Image annotations |
-60 seconds Voice - Sketch, text comments |
| Periodic storage for images |
-7 sec. - 24 hrss (Infrared) & 14 sec. - 24 hours (IR and visual) |
| Video Lamp and Laser Pointer |
-Built-in dual LED lamps plus onboard laser pointer |
| Laser Classification / Type |
-Class 2 Semiconductor Diode Laser AlGalnP - 1 milliWatt / 635nm (red) |
| Set-up controls |
-Color palettes, Mode selector, con?gure information shown inside image, local units adaptation, language, date and time formats, and image gallery |
| Measurement modes |
-10 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T |
| GPS |
-Location data automatically added to every image from built-in GPS |
| Compass |
-Indicates direction camera is pointing for target documantation |
| Video Recording in Camera and Video Streaming |
-Non-radiometric IR-video recording (MPEG-4 to memor y card), Visual and Radiometric IR-video streaming (Full dynamic to PC using USB or Wi-Fi), and Non-radiometric IR-video streaming (MPEG-4 using Wi-Fi and uncompressed colorized video using USB) |
| Battery Type/operating time |
-Li-lon/ 2.5 hours, Display shows battery status |
| Charging |
-AC adapter In-camera - 2 bay charge system |
| Encapsulation Safety, Vibration, Shock |
-25G, IEC60068 2 29/2G, IEC60068-2-6/IP54; CSA / UL / EN / PSE60950-1 |
| Dimensions/Weight |
-5.6in. x 7.7in. x 3.7in. (143 x 196 x 94 millimeters) / 2.87 pounds (1.3 kilograms) w/ battery |
| Included Accessories |
-SD Memor y Card, 100 - 260 Volt AC adaptor & charger, 2 - Li-Ion batteries (rechargeable), power supply w/ multi plugs, 2 bay battery charger, USB cable, FLIR Tools software, Bluetooth headset, video cable, lens cap, hard case, neckstrap |
