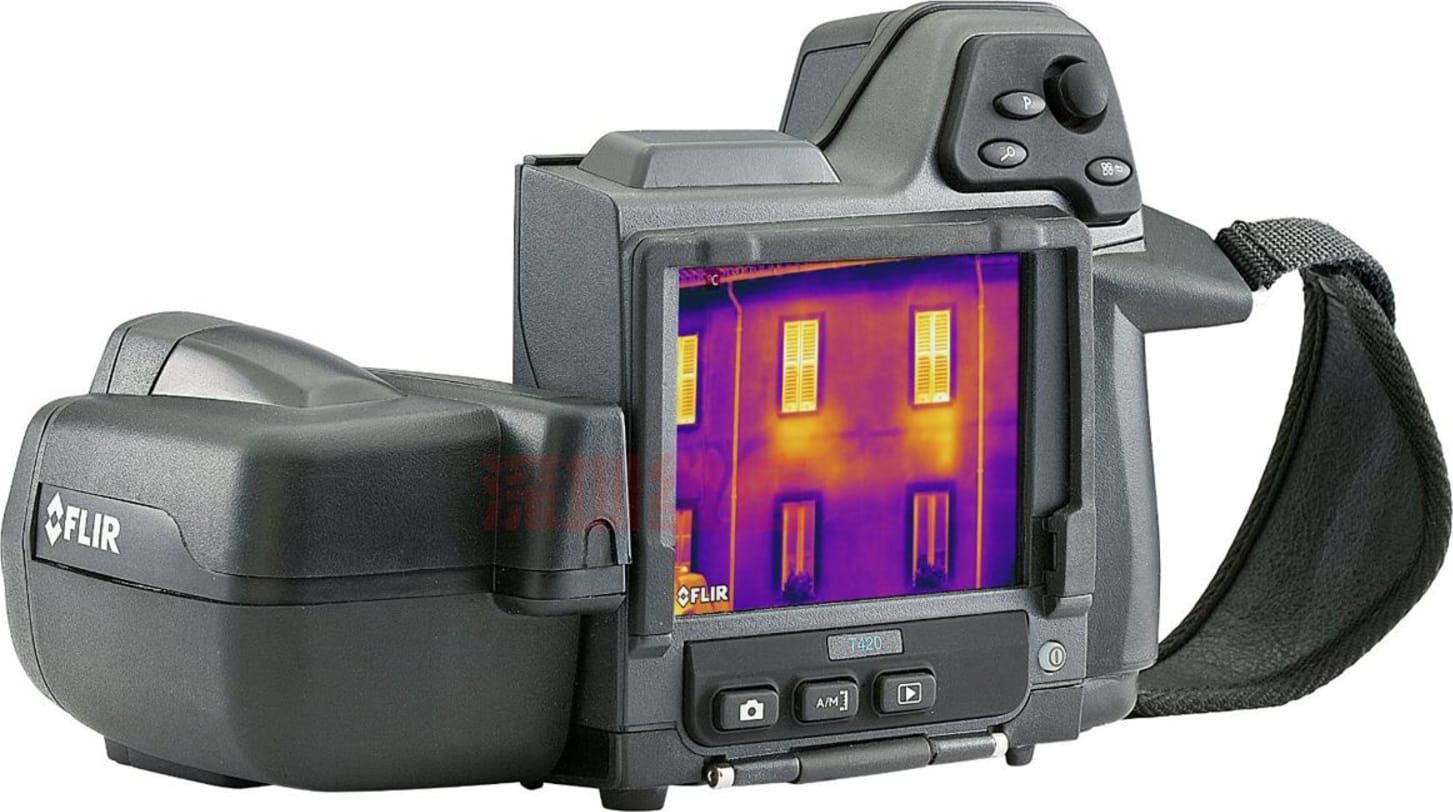

Thermal Imagers/Building and Industrial Thermal Imagers Template |
| Detector Size | 320 x 240 Sensor Detector Size 76,800 pixels |
|---|
| Thermal Sensitivity | 30 mK (NETD) Thermal Sensitivity <0.030°C at 30°C |
|---|
| Temperature Range Max | 662 F Temperature Range Max Dual Range:
–20°C to +120°C (–4°F to +248°F)
0°C to +350°C (+32°F to +662°F) |
|---|
| Temperature Range Min | -4 F |
|---|
| Image Frequency | 60 Hz |
|---|
| Field of View | 45x34 Degrees Field of View Kit also includes standard 25° Lens |
|---|
| Screen Size | 3.5 IN Screen Size Landscape |
|---|
| IR/Overlay Fusion Image | Yes IR/Overlay Fusion Image MSX Image Enhancement is a FLIR exclusive feature. It augments the Infrared image with visual details like numbers, labels and other structural features. |
|---|
| Video Output | Yes |
|---|
| Focus | Adjustable |
|---|
| Laser Spot | Yes |
|---|
| Picture in Picture | Yes Picture in Picture Scalable |
|---|
| Video Recording | Yes Video Recording Non-radiometric IR (MPEG-4 to memory card) |
|---|
| Moveable Spots | Yes Moveable Spots 5 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T |
|---|
| Touch Screen Display | Yes |
|---|
| Minimum Focus Distance | 0.4 M |
|---|
| Accuracy | ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal. |
|---|
| Battery operating time Continuous | 4 HR |
|---|
| Camera Light | Yes |
|---|
| IR Digital Zoom | Yes IR Digital Zoom 2X and 4X |
|---|
| Voice Annotation | Yes Voice Annotation 60 seconds (via Bluetooth) stored with the image |
|---|
Test Equipment General Attributes |
| Unique Features | 3.1MP digital camera, compositve video out, instant report function, rotating optical block, Wi-Fi, Bluetooth, text comments, LED lamp, METERLiNK
Includes 45° lens, along standard 25° lens
Include FLIR Tools+ |
|---|
| Warranty | 2 YEARS |
|---|
| Warranty Details | 10-Year Detector Protection
5-Year Battery
2-Year Parts & Labor
(when camera is registered within 60 Days) |
|---|
| Safety Approval | CE, CSA, RoHS, UL |
|---|
| Interfaces I/O | Bluetooth, Other, Wifi, USB Interfaces I/O Exclusive FLIR Meterlink for communicating with certain other test instruments (such as current and moisture). |
|---|
| Storage | SD Card |
|---|
| IP Rating | IP54 |
|---|
| Product Weight | 1.94 LBS |
|---|
| Product Height | 4.9 IN |
|---|
| Product Length | 4.2 IN |
|---|
| Product Width | 7.9 IN |
|---|
| Shipping Weight | 13 LBS |
|---|
| Data Logging | Yes Data Logging Records images on SD card |
|---|
| HTS/Schedule B Number | 9027502000 |
|---|
| ECCN Number | 6A003 |
|---|
| Calibration Included | Factory Calibration |
|---|
| Battery Type | Li-ion |
|---|
| Power Supply Voltage | 120V/220V Universal |
|---|
| Country of Origin | China |
|---|
