FLIR CM83-NIST 600A Power Clamp with NIST

Name: FLIR CM83-NIST 600A Power Clamp with NIST
Brand: FLIR
SKU: FLIRCM83-NIST
Price: 609.00 USD
Availability: InStock

0 reviews | Catalog: CM83-NIST | UPC: 793950371831 | Model: FLIR CM83-NIST

Compare

600A Power Clamp with NIST

600A True RMS AC/DC Power Clamp with NIST
Voltage and Current
Bright White LED Backlight
Analog Bargraph
Power Factor
Phase Rotation
Integrated Non Contact
Voltage Detector, Min, Max, Average,
Auto Power Off, Data Hold,
Relative,
Peak Hold,
DCA Zero,
Battery Status

View Product Details

Your Price: $609.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	FLIR CM83-NIST 600A Power Clamp with NIST	FLIR CM83 600A Power Clamp	FLIR CM82-NIST FLIR Industrial 600A Power Clamp with VFD Mode and NIST
Price
In Stock
True RMS	Yes	Yes	Yes
Maximum Current AC	600 A	600 A	600 A
Maximum Current DC	600 A	600 A	600 A
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

FLIR CM83-NIST Accessories

Choose a Category

Line Splitters

for the FLIR CM83-NIST

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

FLIR CM83 600A True RMS AC/DC Power Clamp with NIST

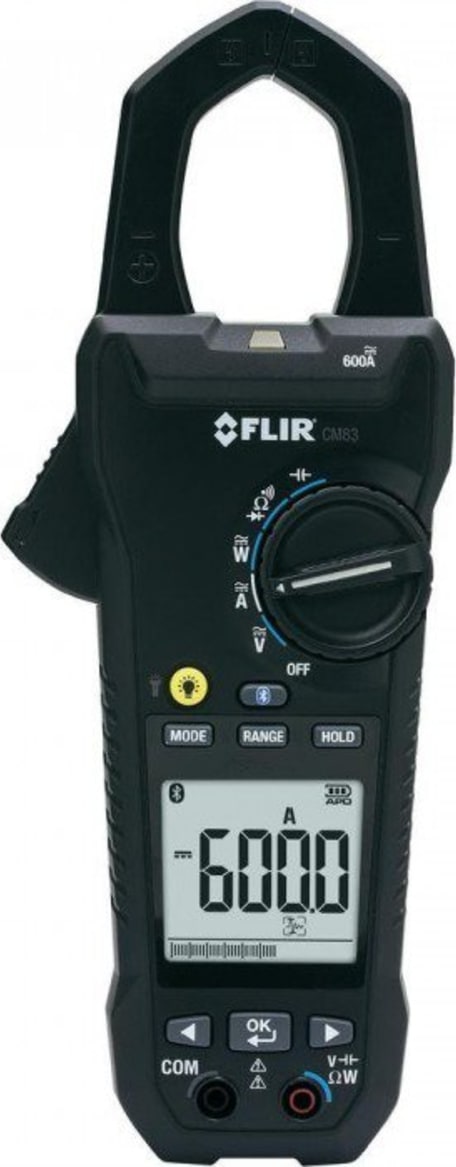

The FLIR CM83-NIST is an industrial-grade Power Clamp Meter engineered with advanced power analysis and VFD filtering functions required by electrical troubleshooters.

VFD Mode provides superior accuracy for working on VFD-controlled equipment
Advanced power efficiency and harmonics measurements for system level performance analysis
Powerful Worklights not only assist with clamping but are bright enough to serve as a primary worklight
FLIR Tools Mobile connects the FLIR CM83 to your compatible smartphone and tablet via Bluetooth*
METERLiNK technology wirelessly integrates electrical readings on your infrared image with FLIR Thermal Cameras

TECHNICAL SUMMARY	MAX RANGE	BASIC ACCURACY
AC/DC Current	600A	±2%
AC/DC Voltage	1000V	±1% / 0.7%
Harmonics	1st-25th Order	±5%
Total Harmonic Distortion	0.0 to 99.9%	±3%
Inrush Current	600ACA (Integration Time 100ms)	±3%
Active Power	10kW to 600kW (10V, 5A min)	±3%
Diode Test	0.4 to 0.8V	±0.1V
Capacitance	3.999mF Max	±1.9%
Resistance	99.99kΩ Max	±1%
Continuity Threshold	30Ω	±1%
Frequency	20.00Hz to 9.999kHz	±0.5%
GENERAL INFORMATION
Bluetooth Range Max	32ft (10m)
Jaw Opening	1.45in (37mm, 1500MCM)
Category Rating	CAT IV-600V, CAT III-1000V
Warranty	Limited Lifetime*

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Current DC	600 A
Maximum Voltage AC	1000 V
Maximum Voltage DC	1000 V
Resistance	Yes
Capacitance	Yes
Test Equipment General Attributes
Product Weight	1.29 LBS
Product Height	1.9 IN
Product Length	10.3 IN
Product Width	3.9 IN
Shipping Weight	2.25 LBS
Country of Origin	Taiwan
Shipping Height	12.6 IN
Shipping Length	4.3 IN
Shipping Width	5.5 IN
