FLIR CM57-NIST 3000A Flexible Clamp Meter with LCD and Bluetooth, 18 in with NIST

Name: FLIR CM57-NIST 3000A Flexible Clamp Meter with LCD and Bluetooth, 18 in with NIST
Brand: FLIR
SKU: FLIRCM57-NIST
Price: 446.99 USD
Availability: InStock

0 reviews | Catalog: CM57-NIST | UPC: 793950371572 | Model: FLIR CM57-NIST

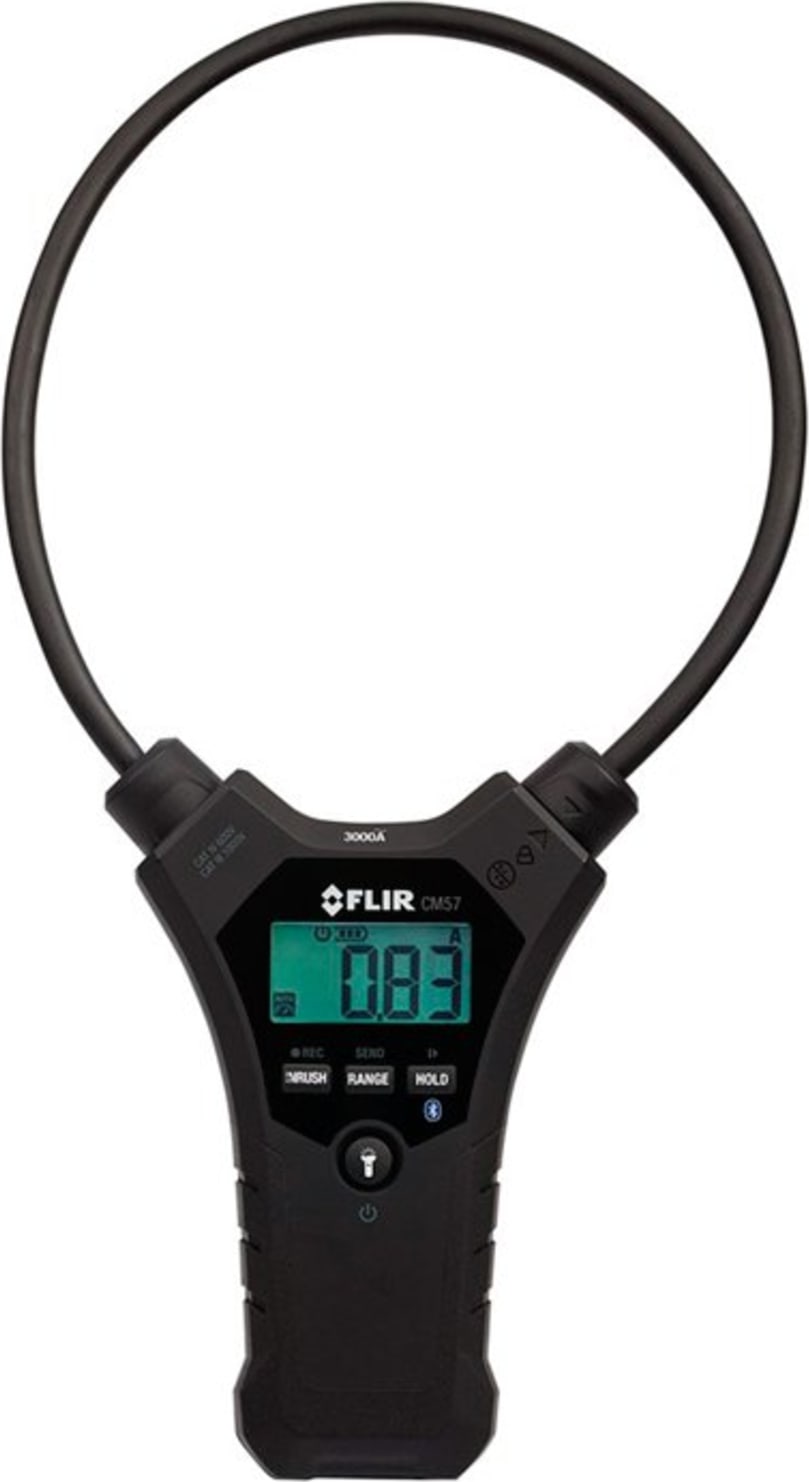

FLIR_CM57-NIST_3000A_Flexible_Clamp_Meter_With_LCD_And_Bluetooth_Main_View

Images (7) | Videos (1)

Compare

Flexible Clamp Meter with LCD and Bluetooth, 18 in with NIST

CM57-NIST 3000A Flexible Clamp Meter with LCD and Bluetooth, 18 in with NIST

TAKE ACCURATE MEASUREMENTS IN TIGHT OR AWKWARD SPOTS.
Tricky conductors conquered

Snake the coil around obstacles with ease, even in deep, crowded cabinets
True RMS AC Current up to 3,000 Amps for multiple conductor measurements
Inrush current function for equipment start-up spikes

EASY INSPECTION AND NAVIGATION.
Designed with your convenience in mind

Standalone flexible clamp meter displays the readings you need
Bright, dual LED worklights provide built-in illumination for dark cabinets
Drop tested to 3 meters, portable, lightweight, and tangle-free without compromising measurement range

REMOTE VIEWING FROM A SAFE DISTANCE.

Transfer & view data on mobile devices with FLIR Tools Mobile App
Connect to iOS and Android smartphones or tablets
Multiple units wirelessly connect for remote viewing of multiphase systems
Data recording for trend analysis transferable via Bluetooth

CHOOSE FROM TWO FLEXIBLE COIL LENGTHS:

CM55 - 10" (25.4cm) for easy maneuverability and compact convenience
CM57 - 18" (45.72 cm) for larger and multiple conductor measurements, double-wrap requirements, and deeper access

View Product Details

List Price: $446.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the FLIR CM57-NIST

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

FLIR CM57-NIST - 3000A Flexible Clamp Meter with LCD and Bluetooth, 18 in with NIST

REMOTE VIEWING FROM A SAFE DISTANCE.

Transfer & view data on mobile devices with FLIR Tools Mobile App
Connect to iOS and Android smartphones or tablets
Multiple units wirelessly connect for remote viewing of multi-phase systems
Data recording for trend analysis transferable via Bluetooth

The FLIR Flexible Clamp Meters with Bluetooth are ergonomic tools designed to simplify difficult current measurements. Made with a narrow flexible coil clamp, the CM55 and CM57 let you easily take measurements in tight or awkward spots - a difficult task with a traditional hard jaw clamp meter. With Bluetooth communication for remote viewing and data transfer to iOS and Android devices via the FLIR Tools Mobile App, you can analyze and share data fast right from the job site.

IGM technology guides you where to measure

Verify moisture with Pinless measurements

FLIR CM55/57 Flexible Clamp Meters Diagram.

Model	CM55	CM57
Maximum AC current	3000A
AC response	True RMS
AC current ranges and resolution	30.00A, 300.0A, 3000A
Basic AC current accuracy (of reading)	± 3.0% + 5 digits
Maximum resolution	0.01A
AC current bandwidth	45Hz – 500Hz (sine wave)
Inrush current	Min 0.5A, 100mS
Data record mode	20,000 points , 1 min sample rate
Positional error (distance from optimum)	0.6" (15mm) ± 2.0% 1.0" (25mm) ± 2.5% 1.4" (35mm) ± 3.0%	1.4" (35mm) ± 1.0% 2.0" (50mm) ± 1.5% 2.4" (60mm) ± 2.0%
Meter Data
Display	3000 count LCD with backlight and multi-function indicators
Max conductor diameter	2.4" (6cm)	4.7" (12cm)
Flex coil length	10" (25cm)	18" (45cm)
Flex coil diameter	0.3" (7.5mm)
Flex coil tip diameter	0.5" (13mm)
Worklight	Two white LEDs
Bluetooth range max	32' (10m)
Wireless ID# max	Up to 20
Power supply	(2) 1.5V “AAA”
Drop test	9.8' (3m)
Agency approvals	FCC Class B, CE, UL
Safety rating	CAT IV 600V, CAT III 1000V
Standards	EN61010-1, EN61010-2-032, EN61326-1
Warranty	Limited lifetime with registration*

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	3000 A
Maximum Conductor Size	4.7 IN
Resistance	No
Capacitance	No
In-Rush Current	Yes
Test Equipment General Attributes
Unique Features	Bluetooth communication for remote viewing and data transfer to iOS® and Android™ devices via the FLIR Tools Mobile App. Bright Dual LED worklights
Warranty Details	Limited Lifetime with Product Registration
Safety Approval	CE, UL
Interfaces I/O	Bluetooth
Product Weight	200 GRAMS (0.441 LBS)
Product Height	11.0 IN
Product Length	1 IN
Product Width	4.7 IN
Shipping Weight	2 LBS
Data Logging	Yes
HTS/Schedule B Number	9030.31.0000
ECCN Number	EAR99
Calibration Included	NIST Calibration
Battery Type	AAA
Country of Origin	Taiwan
Shipping Height	6.8 CM (2.68 IN)
Shipping Length	32 CM (12.60 IN)
Shipping Width	18.5 CM (7.28 IN)
