FLIR CM44-NIST True RMS AC/DC Clamp Meter with NIST

Name: FLIR CM44-NIST True RMS AC/DC Clamp Meter with NIST
Brand: FLIR
SKU: FLIRCM44-NIST
Price: 315.99 USD
Availability: InStock

0 reviews | Catalog: CM44-NIST | UPC: 793950370452 | Model: FLIR CM44-NIST

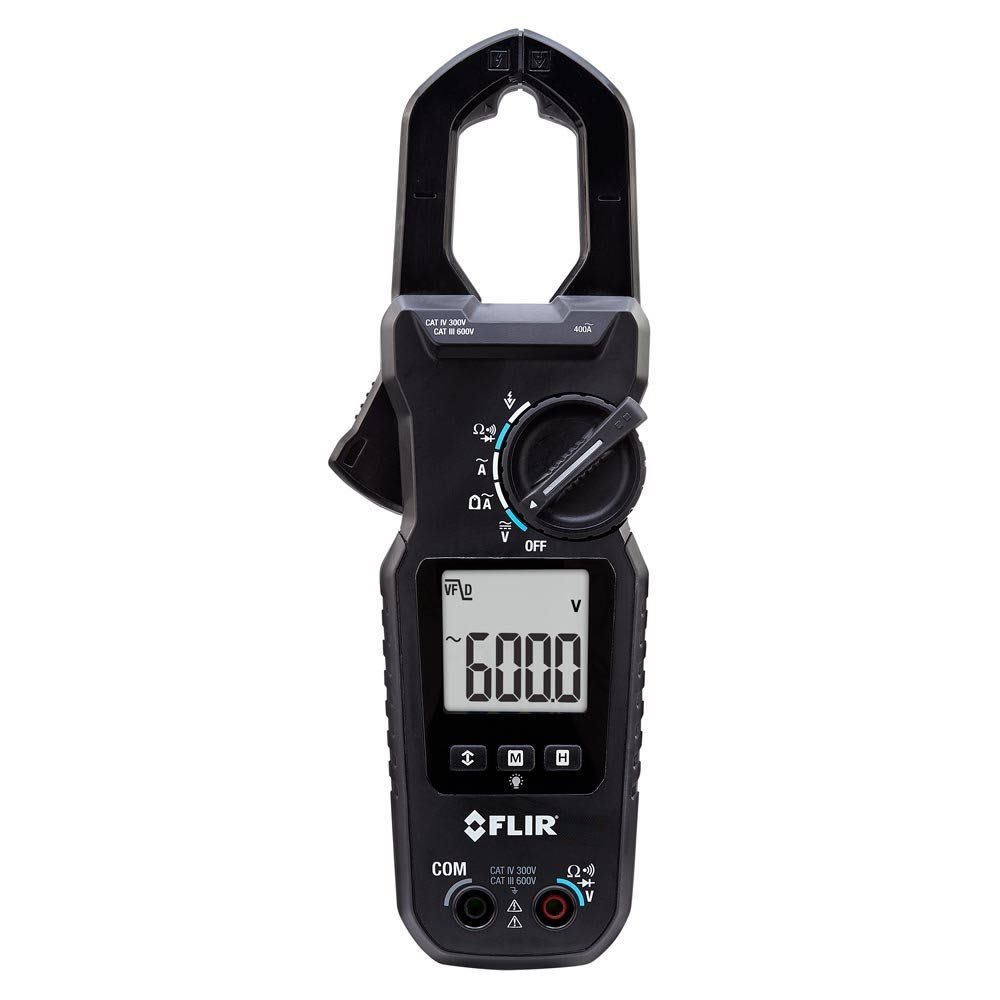

FLIR_CM44-NIST_True_RMS_AC-DC_Clamp_Meter_With_NIST_Main_View

Compare

400A AC Digital TRMS Clamp Meter with Type K and NIST

Includes NIST Calibration Certificate
Accu-Tip enables more accurate amperage measurements on smaller- gauged wires
MAX/MIN/AVG recording, and frequency and diode measurement
Data hold, zero function, and low pass filter for voltage measurement
Durable to withstand a 1-meter drop, and operates at -10 to 50°C (14 to 122°F)
Large, bright backlit display makes readings easy to see
Tough, over-molded, easy-to-grip design and slim, portable size
Built to accept up to a 30mm max conductor
Electrical field detection determines if voltage is present and the relative strength of the field for safety
True RMS professional clamp meters

View Product Details

List Price: $315.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the FLIR CM44-NIST

FLIR TA55 Universal AC Current Line splitter

Catalog: TA55

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

FLIR TA80 Universal CAT IV Silicone Test Probes

Catalog: TA80

(0)

In Stock!

Add to Cart

FLIR TA60 Universal Thermocouple probe with adapter

Catalog: TA60

(0)

In Stock!

Add to Cart

FLIR TA70 Universal CAT IV Insulated Alligator Test Probe Clips

Catalog: TA70

(0)

In Stock!

Add to Cart

FLIR CM44-NIST True RMS AC/DC Clamp Meter with NIST

True RMS professional clamp meter
Includes NIST Calibration Certificate
Large, bright backlit display makes readings easy to see
Built to accept up to a 30mm max conductor

The CM44 from Flir is another great model in the CM4X Clamp Meter Family. Featuring a long list of applicable features suited for the modern job site. From AC clamp measurement to bright back lit display this meter takes ‘ease of use’ from words on a bow to a product engineered with you in mind. The machine is great in and around electrical panels. Dim, low, or no light situation? The CM44 conquers all.

Allow the CM44 from Flir and the slim form factor to share your work space and go anywhere you go. Precise, accurate measurements are why you do what you do now carry the tool that does it best.

DC Voltage 600 V
AC Voltage 600 V
Clamp-On AC Current 400A
Frequency 50-400 Hz
Resistance 60 kΩ
Limited Lifetime Warranty
Capacitance 2500 μF

Measurements	CM42	CM44	CM46	Basic Accuracy
DC Voltage	600 V	600 V	600 V	±1.0%
AC Voltage (Digital Low Pass Filter)	600 V	600 V	600 V	±1.0%
AC + DC Voltage (Digital Low Pass Filter)	—	—	600 V	±1.2%
Clamp-On AC Current (50-100 Hz) (100-400)	400 A	400 A	400 A	±1.8% ±2.0%
Accu-Tip Clamp-On AC Current	60 A	60 A	60 A	±1.5%
Clamp-On DC Current	—	—	400 A	±2.0%
Accu-Tip Clamp-On DC Current	—	—	60 A	±2.0%
Frequency	50-400 Hz	50-400 Hz	50-400 Hz	±1.0%
Resistance	60 kΩ	60 kΩ	60 kΩ	±1.0%
Capacitance	2.0 V	2500 µF	2500 µF	±2.0%
Diode	—	2.0 V	2.0 V	±1.5%
DCµA	—	2000 µA	2000 µA	±1.0%
Temperature	—	-40°C to 400°C (-40°F to 752°F)	-40°C to 400°C (-40°F to 752°F)	±1.0%
General Meter
Display	5/6 digits 6000 counts
Operating Temperature	-10°C to 50°C
Continuity	10Ω< & < 250Ω
Recording	Min / Max / Avg
Backlight LCD	Yes
Drop Test	2m
Certifications	UL , CE
Category	CAT IV: 300V / CAT III 600V
Jaw Opening	30 mm Max
NCV	Yes
Warranty	Limited Lifetime
Battery Type	2x AAA

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	400 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	1.18 IN
Resistance	Yes
Capacitance	Yes
Test Equipment General Attributes
Product Weight	186 GRAMS (0.410 LBS)
Product Height	1.5 IN
Product Length	8.5 IN
Product Width	3.0 IN
Shipping Weight	1.8 LBS
Country of Origin	Taiwan
Shipping Height	13 IN
Shipping Length	4.3 IN
Shipping Width	5.5 IN
