FLIR CM174-NIST 600A AC/DC Imaging Clamp Meter with IGM and NIST, 9Hz

Name: FLIR CM174-NIST 600A AC/DC Imaging Clamp Meter with IGM and NIST, 9Hz
Brand: FLIR
SKU: FLIRCM174-NIST
Price: 44265.00 USD
Availability: InStock

0 reviews | Catalog: CM174-NIST | UPC: 793950373743 | Model: FLIR CM174-NIST

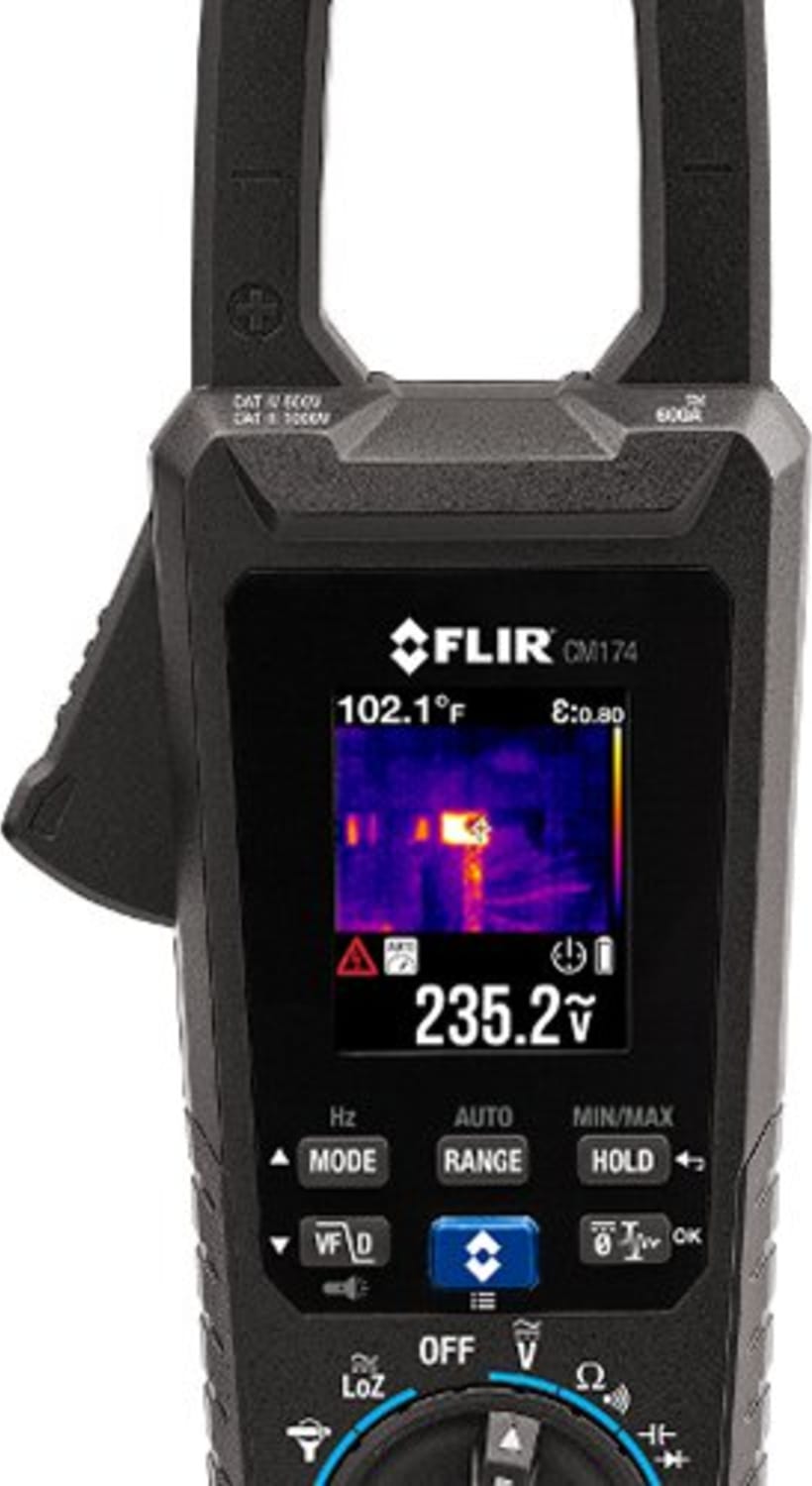

Flir CM174 Clamp Meter with Thermal Imaging

Images (12) | Videos (1)

Compare

FLIR 600A AC/DC Imaging Clamp Meter with IGM and NIST, 9Hz

CM174-NIST 600A AC/DC Imaging Clamp Meter with IGM and NIST
Visually identify electrical issues with the first Thermal Imaging clamp meter
Design and functionality vital to professionals
Laser and crosshair pinpoint the location of the problem found in thermal image
Advanced electrical features: True RMS, LoZ, VFD Mode, Inrush, Smart Diode with Disable
Expandable to 3000 Amps AC with FLIR ﬂex accessories

View Product Details

List Price: $44,265.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the FLIR CM174-NIST

FLIR TA04-KIT Lithium Polymer Rechargeable Battery Kit for DM284

Catalog: TA04-KIT

(0)

In Stock!

Add to Cart

FLIR TA10-F Protective case for DM9x and TA72/74 or CM55/57

Catalog: TA10-F

(0)

In Stock!

Add to Cart

FLIR TA11 Protective case for CM7x and CM8x Series

Catalog: TA11

(0)

In Stock!

Add to Cart

FLIR TA15 Universal Soft Sided Case

Catalog: TA15

(0)

In Stock!

Add to Cart

FLIR TA74 Universal Flex Clamp Probe Accessory 18 in (45cm)

Catalog: TA74

(1)

In Stock!

Add to Cart

FLIR TA55 Universal AC Current Line splitter

Catalog: TA55

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

FLIR TA80 Universal CAT IV Silicone Test Probes

Catalog: TA80

(0)

In Stock!

Add to Cart

FLIR MR40 Moisture Meter Pen

Catalog: MR40

(0)

In Stock!

Add to Cart

FLIR TA70 Universal CAT IV Insulated Alligator Test Probe Clips

Catalog: TA70

(0)

In Stock!

Add to Cart

FLIR Thermal Studio FLIR Thermal Studio 1.0 (License Key/QR Code) 2 Users - perpetual...

Catalog: T300258

(0)

In Stock!

Add to Cart

FLIR ITC Level I ITC Level I Thermography Certification (4-Day), per attendee

Catalog: ITC Level I

(0)

In Stock!

Add to Cart

FLIR CM174-NIST - 600A AC/DC Imaging Clamp Meter with IGM and NIST

Find problems faster with Thermal Imaging
Visually identify electrical issues with the first thermal imaging clamp meter
Confirm your findings.
Verify problems, check load, and validate hot spots
Solve complex electrical issues.
Advanced electrical features: True RMS, LoZ, VFD Mode, Inrush, Smart Diode with Disable

The World's Sixth Sense

The FLIR CM174 Imaging 600A AC/DC Clamp Meter with IGM is the first clamp meter equipped with a built-in thermal imager that can quickly lead you to problems you can’t see with a standard clamp meter.

Featuring Infrared Guided Measurement (IGM) technology, the CM174 visually guides you to the precise location of a potential electrical problem, identifying dangerous and unknown problem areas safely. Confirm your findings with accurate amperage and voltage measurements, and center-point temperature readings. The narrow jaw enables greater accessibility, and its compact form-factor fits easily into your back pocket - so you can have thermal imaging at your fingertips everywhere you go. The FLIR CM174 will quickly become your primary electrical troubleshooting tool.

Find problems faster with Thermal Imaging

Visually identify electrical issues with the first thermal imaging clamp meter
Conquer cluttered wires and cables - IGM can quickly guide you in the right direction
All-in-one tool - carry just one device and always have access to thermal imaging
Work safely - scan a panel or cabinet for hazards using IGM without direct contact

Confirm your findings

Verify problems, check load, and validate hot spots
Center-point temperature to confirm hot spot
Amperage and voltage measurements to check the load
Laser and crosshair pinpoint the location of the problem found in thermal image

Solve complex electrical issues.

Design and functionality vital to professionals
Narrow jaw and built-in worklights help you access difficult locations with lighting issues
Advanced electrical features: True RMS, LoZ, VFD Mode, Inrush, Smart Diode with Disable
Expandable to 3000 Amps AC with FLIR flex accessories

FLIR CM174 General Specifications
Imaging Detector:	FLIR Lepton ® microbolometer
Thermal Image Resolution:	4800 pixels (60 × 80)
Field of View (V x H):	38.6° x 50.0°
Color Palettes:	Iron, Rainbow, Grayscale
Image Frame Rate:	9Hz
Temperature Measurement:	Center point of thermal image
Temperature Range:	-13°F to 302°F (-25°C to 150°C)
Temperature Distance to Spot Ratio:	30:1
Temperature Accuracy:	±5.4°F (3°C) or ±3% of rdg
Spectral Response:	8 to 14µm
Temperature Targeting:	Class 1 Laser Pointer and Crosshair on display
Emissivity Settings:	4 Presets with Custom Adjustment
Electrical Measurements	Range	Basic Accuracy
AC/DC Voltage:	1000V	±1.0%
VFD AC Voltage:	1000V	±1.0%
LoZ Mode AC Voltage:	1000V	±1.0%
LoZ Mode DC Voltage:	1000V	±1.0%
DC Current:	600.0A	±2.0%
AC Current:	600.0A	±2.0%
VFD AC Current:	600.0A	±2.0%
Inrush AC Current:	600.0A	±3.0%
Inrush AC Current Threshold:	Min 0.5A Integration Time 100ms
Frequency:	60.00kHz	±0.1%
Resistance:	6000Ω	±1.0%
Continuity:	600.0Ω	±1.0%
Capacitance:	1000µF	±1.0%
Diode:	1.5V	±1.5%
General information
Display:	6000 Count 2.0” (50mm) Color TFT
Jaw Opening:	1.38" (35mm), 1250MCM
Category Rating:	CAT IV-600V, CAT III-1000V
Certiﬁcations:	UL, CE
Battery Type:	4 x AAA
Warranty:	10 Years on Product and Detector*
Includes:	Clamp Meter, 4 x AAA Batteries, Premium Silicone Test Leads, Quick Start, User Manual (CD), Extended Warranty Registration Card

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Current DC	600 A
Maximum Voltage AC	1000 V
Maximum Voltage DC	1000 V
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Both
In-Rush Current	Yes
Thermal Imagers/Building and Industrial Thermal Imagers Template
Detector Size	80 x 60 Sensor
Temperature Range Max	302 F
Temperature Range Min	-13 F
Image Frequency	9 Hz
Touch Screen Display	No
Test Equipment General Attributes
Warranty	10 YEARS
Safety Approval	CE, UL
Product Weight	2 LBS
Product Height	13 IN
Product Length	4.2 IN
Product Width	5.5 IN
Shipping Weight	5 LBS
Data Logging	No
ECCN Number	6A993
Calibration Included	Factory Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
