Extech PQ34-30 3000A Flexible Current Probes (Set of 3)

Name: Extech PQ34-30 3000A Flexible Current Probes (Set of 3)
Brand: Extech
SKU: ExtechPQ34-30
Price: 862.99 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 793950334300 | Model: Extech PQ34-30

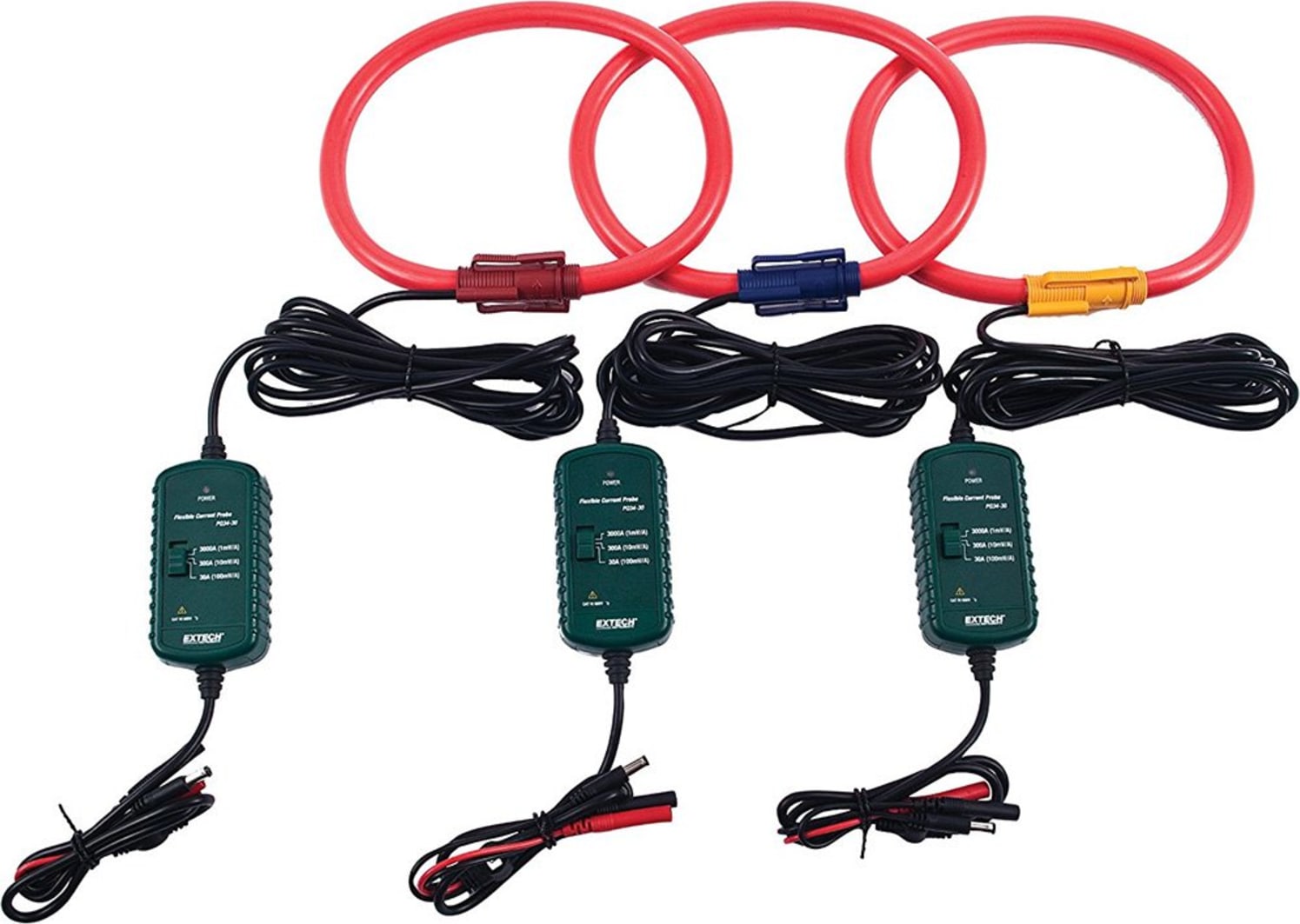

Extech PQ34-30 3000A Current Flexible Clamp Probes

Compare

3000A Flexible Current Probes (Set of 3)

Compatible with PQ3450 - 3-Phase Power Analyzer/Datalogger
Compatible with PQ3470 - 3-Phase Graphical Power & Harmonics Analyzer/Datalogger
Max conductor size: oval - 8.5"/216mm; round - 7"/177mm

View Product Details

List Price: $969.00

Your Price: $862.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Extech PQ34-30 3000A Flexible Current Probes (Set of 3)	Extech PQ34-12 1200A Current Clamp Probes (Set of 3)	Extech PQ34-2 200A Current Clamp Probes (Set of 3)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech PQ34-30 3000A Current Flexible Clamp Probes

Max conductor size: oval - 8.5"/216mm; round - 7"/177mm
Compatible with PQ3450 - 3-Phase Power Analyzer/Datalogger
Compatible with PQ3470 - 3-Phase Graphical Power & Harmonics Analyzer/Datalogger

Set of 3 clamp probes with 24" (600mm) perimeter

The PQ34-30 is a set of 3000-Amp flexible current probes for PQ3450/PQ3470 power quality analyzers. 24 in. (600 mm) for wrapping around bus bars and wire bundles. Switch between 3 ranges; 3000-amp, 300-amp, 30-amp.

General Specifications
	Range
Measurement ranges	30A, 300A and 3000A, switch selectable
Output sensitivity	100mV/A on the 30A range 10mV/A on the 300A range 1mV/A on the 3000A range
Output coupling	AC coupled.
Accuracy (50/60Hz)	± 1% F.S. @ 23 ± 5°C (50/60Hz)
Frequency range	45 to 400 Hz.
Max conductor size	Round: (177mm (7"), Oval: 216mm (8.5")
Phase error (50/60Hz)	< ± 1°
Minimum load	100 K ohm for specified accuracy
Linearity	±0.2% of reading from 10% to 100% of range
Phase error	<±1.5° (50/60Hz)
Conductor position sensitivity	± 2% F.S (conductor should be >25mm (1") from the probe latch).
Enclosure material	UL 94-V0 rated
Safety	IEC 1010, Category III 600V
Power Supply	8V± 1V (supplied from meter)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	Less than 80% RH
Dimension
Circuit box:	105 x 56.5 x 33 mm. (4.1 X 2.2 X 1.3")
Flexible probe:	600mm (23.6") (length), 14.5mm 0.57" (diameter)
Cable length :	3.4 meters (11.2 feet)
DC plug size :	5.5 mm x 2.5 mm DIA.
Weight	480 g (1.06 LB)

Tech Specs

Test Equipment General Attributes
Product Height	5.75 IN
Product Length	10.75 IN
Product Width	8.25 IN
HTS/Schedule B Number	9030908961
ECCN Number	EAR99
Country of Origin	Taiwan
Shipping Height	5.75 IN
Shipping Length	10.75 IN
Shipping Width	8.25 IN
