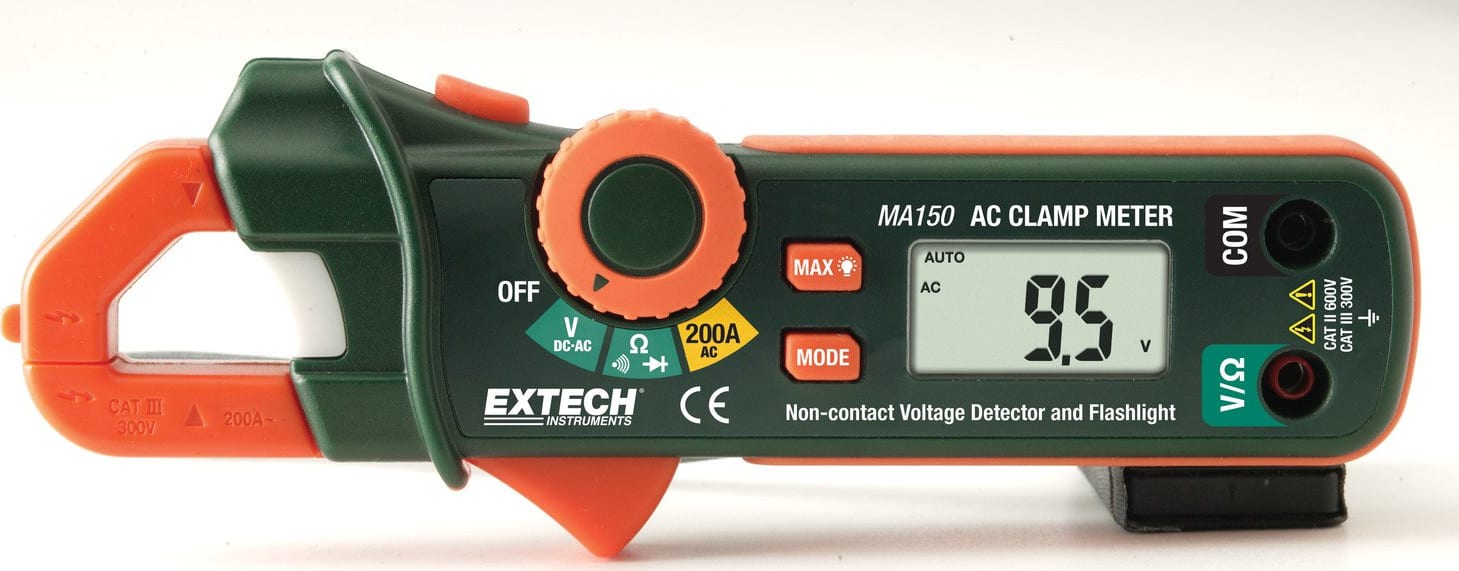

Extech MA150-NIST Mini Clamp Meter 200A AC/DC with NCV and NIST

Name: Extech MA150-NIST Mini Clamp Meter 200A AC/DC with NCV and NIST
Brand: Extech
SKU: ExtechMA150-NIST
Price: 132.25 USD
Availability: InStock

0 reviews | UPC: 793950371510 | Model: Extech MA150-NIST

Compare

Clamp Meter, Mini 200A AC W/NIST, MA150- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

200A AC Current, DC Voltage
Frequency measurment
DCA zero key and backlit display
Measures 200A AC Current up to 100mA resolution
3% basic ACA accuracy
0.7" (18mm) jaw opening; 300MCM cable size
2000 count LCD display
Non-contact AC Voltage detector (150/240VAC, 50/60Hz) via clamp tip
Built-in white LED flashlight
Measures Frequency up to 1kHz with 0.01Hz resolution
Autoranging with Auto Power Off
Data Hold
Overload protection for all ranges
Overrange and low battery indicators
Complete with two AAA batteries

View Product Details

List Price: $148.49

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Extech MA150-NIST

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

AC Current	200A
DC Current	-
Max Resolution	100mA
Basic ACA Accuracy	±(3.0% + 8d)
AC Voltage (Max Res.)	Non-contact/600V (0.1mV)
Frequency (Max Res.)	1kHz (0.01Hz)
Dimensions	7x2.5x1.3" (178x65x32mm)
Weight	6 oz (170g)

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	No
Maximum Current AC	200 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	0.7 IN
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Auto Ranging
In-Rush Current	No
Test Equipment General Attributes
Unique Features	Built-in White LED Flashlight, Data Hold, Overrange and Low Battery Indicators
Warranty	1 YEARS
Warranty Details	1 Year from Date of Shipment, Six Month Limited Warranty Applies to Sensors and Cables
Product Weight	6.2 OUNCES (0.388 LBS)
Product Height	1.3 IN
Product Length	6.5 IN
Product Width	2.6 IN
Data Logging	No
Calibration Included	Factory Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	China Country of Origin Value not available
