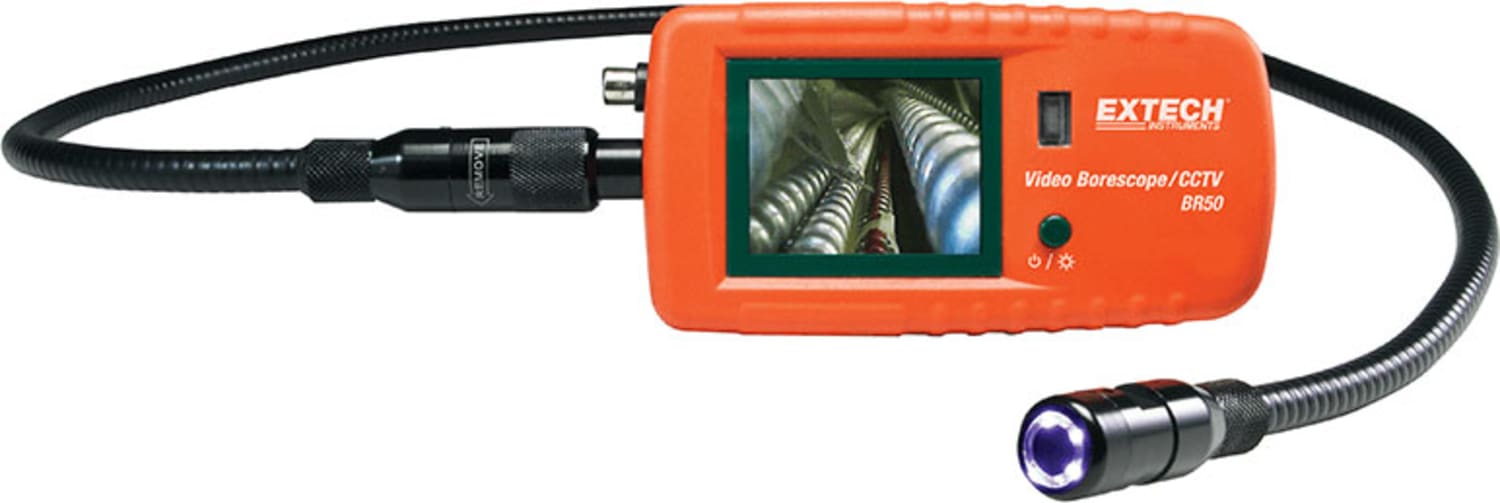

Extech BR50 - Video Borescope/Camera Tester

Name: Extech BR50 - Video Borescope/Camera Tester
Brand: Extech
SKU: ExtechBR50
Price: 93.44 USD
Availability: InStock
Rating: 4.50 (2 reviews)

4.5 (2 Reviews) | UPC: 793950630501 | Model: Extech BR50

Compare

VIDEO BORESCOPE/CAMERA TESTER

17mm diameter camera head with 39" (1m) flexible gooseneck cable retains configured shape
Mini water-proof (IP57) camera head for high resolution viewing
Four LED lamps with five brightness levels illuminate the viewed object
Glare-free close-up field of view with 480 x 234 pixel display
Automatically detects NTSC and PAL cameras
Switches to standby mode when no input is connected
Battery can be recharged via the built-in USB port using the included AC adaptor/charger or a USB port on your PC
Optional BRC-EXT extension cable available for increasing viewing depth; 19mm diameter connector and 37.5" (0.95m) cable length (including connectors); maximum 2 extension cables can be connected to the borescope
Complete with rechargeable Lithium battery, and Universal AC adapter/charger with USB cable

View Product Details

List Price: $104.99

Your Price: $93.44

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech BR50 VIDEO BORESCOPE/CAMERA TESTER	Extech BR90 Borescope Inspection Camera with IP67 8mm Diameter and 77cm Cable
Price
In Stock
Shaft Diameter	17 MM (0.017 M)	0.32 IN (0.025 M)
Compare	Add to compare	Add to compare

Recommended for you

Extech BR50 Accessories

Choose a Category

Borescope Probes and Camera Heads

for the Extech BR50

Extech BRC-17CAM 17 MM BORESCOPE CAMERA TIP

Catalog: BRC-17CAM

(0)

In Stock!

Add to Cart

Extech BR50 - Video Borescope/Camera Tester

17mm diameter camera head with 39" (1m) flexible gooseneck cable retains configured shape
Mini water-proof (IP57) camera head for high resolution viewing
Four LED lamps with five brightness levels illuminate the viewed object
Glare-free close-up field of view with 480 x 234 pixel display

BR50 is a Video borescope and camera tester with a 17mm camera diameter and 2.4 in. Color TFT LCD Monitor. Can also test installed surveillance cameras for correct target alignment. Applications include: Home inspection: Inspect in walls for mold, insect infestation, electrical wire or water pipe location; HVAC: Inspect inside ducts, behind motors and compressors; Automotive: View inside or around engines and transmissions; Government: Safety and security inspections; Industrial: Inspect weld integrity, process equipment, gears, molding machines; Aerospace: Aircraft inspections for contamination, debris, cracks or other damage. Comes complete with rechargeable Lithium battery, and Universal AC adapter and charger with USB cable.

Applications:

Home inspection: Inspect in walls for mold, insect infestation, electrical wire or water pipe location
HVAC: Inspect inside ducts, behind motors and compressors
Automotive: View inside or around engines and transmissions
Government: Safety and security inspections
Industrial: Inspect weld integrity, process equipment, gears, molding machines
Aerospace: Aircraft inspections for contamination, debris, cracks or other damage

Camera
Sensor size	1/4" CMOS
Sensor pixels	300,000
Maximum frame rate	30 FPS
Color resolution	24 Bit
Focusing method	Fixed focus 15cm to 25cm (5.9" to 9.8")
Gooseneck length	1m (39")
Camera diameter	17mm (0.66")
LCD Display	2.4" Color LCD
Display resolution	480 (W) X 234 (H) pixels
Active area	48mm x 35.6mm (1.9 x 1.4")
Light Source	4 LEDs
Adjustable light intensity	6 illumination levels
Video format	NTSC/PAL (automatic conversion)
Power	Rechargeable 1800mAH lithium battery
Current consumption	400mA max.
Standby current	5mA max.
Low battery warning	Voltage falls below 3.3V
Environmental
Operating Temperature	32°F ~ 122°F (0°C ~ 50°C)
Relative Humidity	85% max.

Borescopes / Boroscopes/Video Borescopes Template
Shaft Length	39 IN
Shaft Diameter	17 MM (0.017 M)
Screen Size	2.4 IN
Detachable Screen	No
Screen Type	TFT LCD
Video Resolution (Boroscopes)	480x234 pixels
Image Resolution	480x234 pixels
Video Output Format	NTSC, PAL
Test Equipment General Attributes
Unique Features	17mm diameter camera head with 39" (1m) flexible gooseneck cable retains configured shape Four LED lamps with five brightness levels illuminate the viewed object Glare-free close-up field of view with 480 x 234 pixel display Automatically detects NTSC and PAL cameras Complete with rechargeable Lithium battery, and Universal AC adapter/charger with USB cable.
Warranty	1 YEARS
Safety Approval	CE
Product Height	2.80 IN
Product Length	10.50 IN
Product Width	9.20 IN
Data Logging	No
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	2.80 IN
Shipping Length	10.50 IN
Shipping Width	9.20 IN

4.5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Pretty good for the money

4.0

Focal length is large (can still see longer distances). Up close though, the lights can wash out the image if not adjusted down. Fairly stiff gooseneck stays in place. Alt video input, so can be used for other projects.

FHRITP on Oct 21, 2016

Recommend to a Friend

Borescope

5.0

I can't believe I waited so long to get one of these. Works perfectly.

Anonymous on Nov 14, 2015
