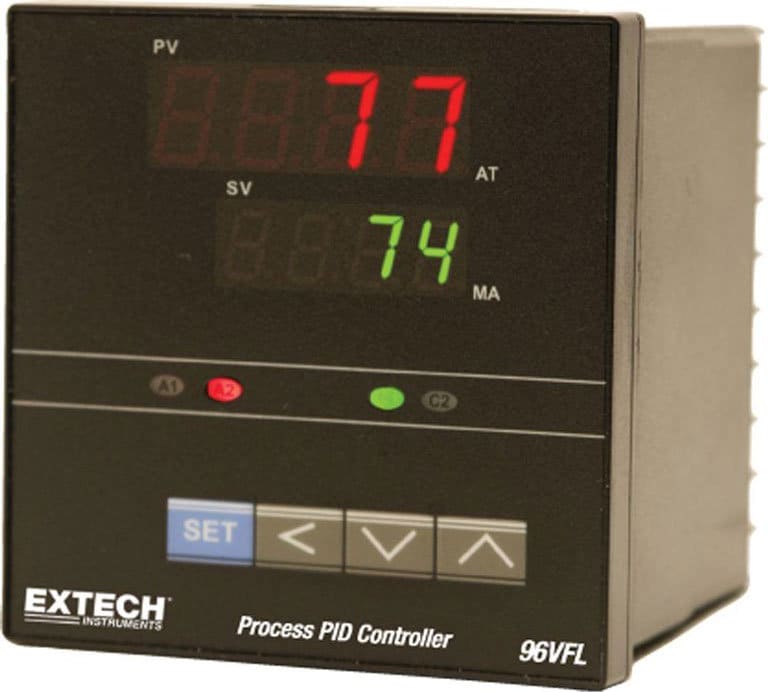

Extech 96VFL13 1/4 DIN Temperature PID Controller with 4-20mA Output

Name: Extech 96VFL13 1/4 DIN Temperature PID Controller with 4-20mA Output
Brand: Extech
SKU: Extech96VFL13
Price: 336.41 USD
Availability: InStock

0 reviews | UPC: 793950961131 | Model: Extech 96VFL13

Compare

Controller, PID, 1/4 Din, 4-20Ma Output

4-20mA output
Dual 4-digit LED displays of process and setpoint values
User friendly menus and tactile keypad for easy programming
One-touch autotuning for quick setup & precise control
Fuzzy Logic PID offers intuitive control simulating human control logic
Two "Latching" alarm relays standard with 8 Alarm modes
Accepts thermocouple and RTD inputs

View Product Details

List Price: $377.99

Your Price: $336.41

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Extech 96VFL13 Controller, PID, 1/4 Din, 4-20Ma Output	Extech 96VFL11 Controller, PID, 1/4 Din
Price
In Stock
Type (Controllers)	Digital	Digital
Size Rectangular	1/4 DIN	1/4 DIN
Max # Control Loops	1 EA	1 EA
Compare	Add to compare	Add to compare

Recommended for you

General
Thermocouple
Type K	-58 to 2498°F (-50 to 1370°C)
Type J	-58 to 1832°F (-50 to 1000°C)
Type B	32 to 3272°F ( 0 to 1800°C)
Type T	-454 to 752°F (-270 to 400°C)
Type E	-58 to 1382°F (-50 to 750°C)
Type R or S	32 to 3182°F ( 0 to 1750°C)
Type N	-58 to 2372°F (-50 to 1300°C)
Type C	-58 to 3272°F (-50 to 1800°C)
PT100O RTD (DIN)	-328 to 1652°F (-200 to 850°C)
PT100O RTD (JIS)	PT100O RTD (JIS)
Control/Alarm Relay	5 Amp @ 110V, SPST (resistive load)
DC Current Output	4-20mA (resistive); Impedance < 600 ohms
Accuracy	Thermocouple: ±1.8°F (1ºC); RTD: ±0.36°F (0.2ºC)
Sampling Time	Four (4) samples per second
LED Display	Two 4-digit displays for Process Value, Setpoint, and programming modes
LED Status	Alarm and Control output status
Control Modes	Fuzzy Logic enhanced three-term PID with Auto Tune: Proportional Band 0 to 300.0% Derivative time 0 to 900 seconds Hysteresis 0.0 to 200.0 or 0.0 to 2000 Cycle time 1 to 100 seconds
Front Panel	Lexan construction, Drip/Dust proof; IR rating: IEC IP63
Power Supply	90 to 264 VAC; 50/60 Hz (< 5VA power consumption)

Temperature / PID Controllers
Type (Controllers)	Digital
Size Rectangular	1/4 DIN
Max # Control Loops	1 EA
Control Methods (Controllers)	PID
Input Types (Controllers/Recorders)	T/C - RTD
Output Types (Controllers/Recorders)	Milliamp (mA)
Max # Control Outputs	1
# Digit Display	4
# Alarm Outputs (Controllers)	2
Display (Controllers)	LED, Multicolor
Backlit Display	No
Special Functions (Controllers)	Fuzzy Logic, Soft Start
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Other
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Current, Temperature, Voltage Input (Panel Meters) RTD
Accuracy	Thermocouple: ±1.8°F (1ºC); RTD: ±0.36°F (0.2ºC)
Process Output	Yes
Control / Alarm Setpoints	Yes
Water Proof	No
Splash Proof	No
Power Supply (Panel)	AC Volts
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE
IP Rating	IP63
Product Height	4.75 IN
Product Length	4.50 IN
Product Width	4.25 IN
Data Logging	No
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	120V 50/60 Hz
Country of Origin	Taiwan
Shipping Height	4.75 IN
Shipping Length	4.50 IN
Shipping Width	4.25 IN
