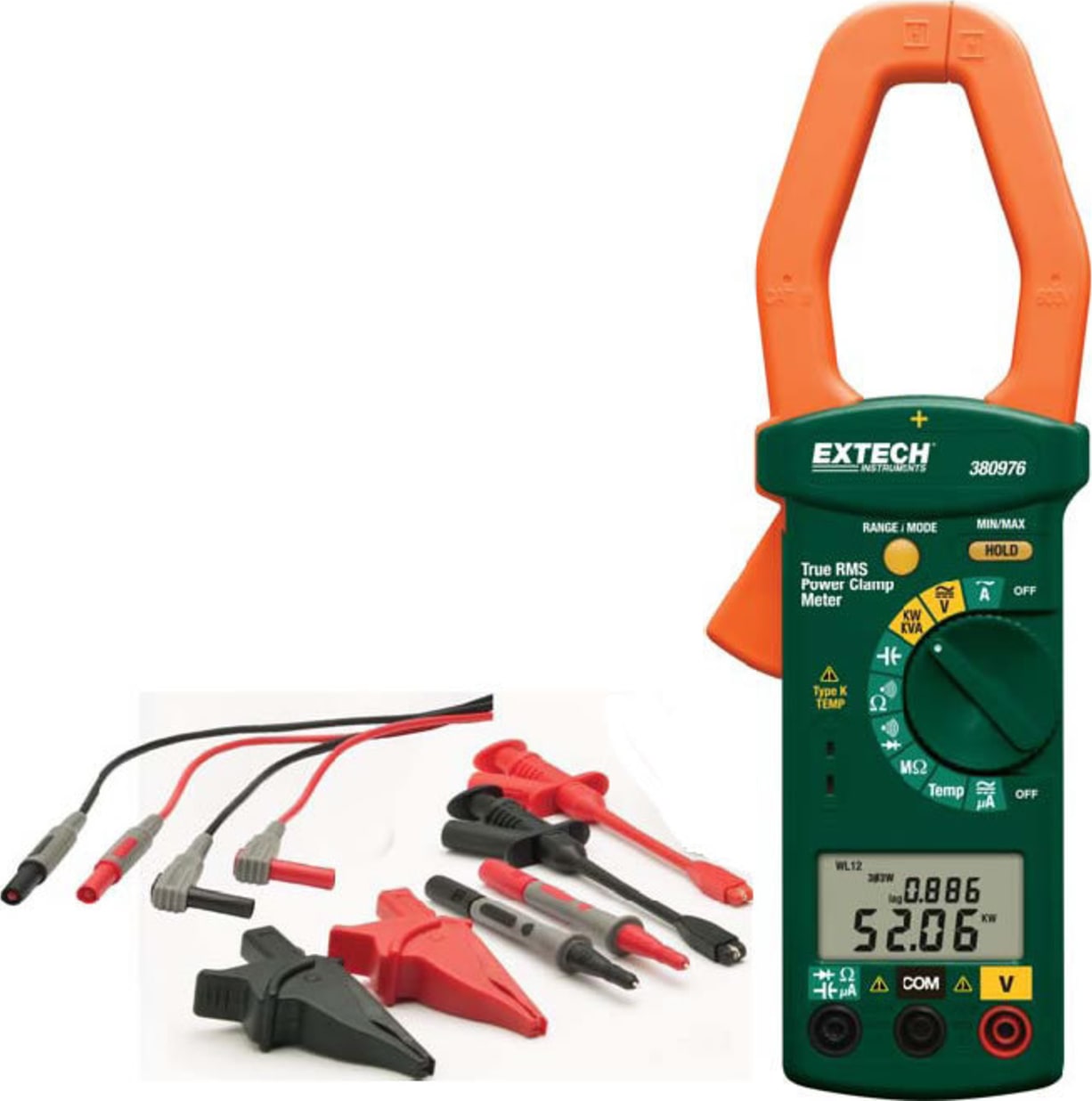

Extech 1F Phase/3F Phase 1000A True RMS Power Clamp Meter

Name: Extech 1F Phase/3F Phase 1000A True RMS Power Clamp Meter
Brand: Extech
SKU: Extech380976
Price: 222.49 USD
Availability: InStock

0 reviews | UPC: 793950000000 | Model: Extech 380976

Compare

CLAMP METER, HVAC TRMS POWER METER

Large dual LCD display (9999 count)
Measures 1Φ Phase/3Φ Phase True Power (kW), Apparent Power (kVA), and Reactive Power (kVAR), plus Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
AC+DC μA current with 10nA resolution for flame rod tests
Max/Min recording with elapsed time indication
Auto Detect AC/DC Voltage measurements with simultaneous frequency display
Capacitance to 7000μF with 0.001μF resolution
High resistance tests: 100MΩ
Type K, °C/°F switchable, temperature to 1000ºF
Continuity and diode testing
Auto power off and includes disable feature
Clamp jaw opening: 1.6" (40mm)
Includes test leads, Type K probe (-58 to 482°F/ -50 to 250°C), carrying case and a nine volt battery

Applications:

AC Power evaluation
Motor/Generator installation and repair
HVAC flame rod tests
Capture max/min temperature or current values
Category III rating for industrial measurements

View Product Details

List Price: $249.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Extech 380976

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

The Extech 380976 accurately measures 1Φ Phase/3Φ Phase power (true, apparent, and reactive), horsepower, phase angle, true rms current/voltage, temperature, capacitance, frequency, & resistance. Power measurements can be achieved on both three and four wire configurations.

General
Display	Dual Display; 4-digit, 10,000 count (0 to 9999) LCD
Jaw Opening	1.6” (42mm)
Max. Input limit	Max. voltage between any terminal and ground: 600Vrms
Sampling rate	2.5 times per second (Digital Display); Once every 6 seconds (KW, KVA, and KVAR)
Auto Sleep	After approx. 30 minutes (feature can be defeated)
Low battery indication	Battery symbol appears on the LCD
Power supply	9V Battery
Battery life	Approx. 32 hours with alkaline battery
Operating Temperature	32 to 122oF (0 to 50oC)
Operating Humidity	< 80% RH
Operating Altitude	7000 ft. (2000 meters) maximum.
Storage Temperature	14 to 140oF (-10 to 60oC)
Storage Humidity	< 70% RH
Temperature coefficient	0.1 x (specified accuracy) / oC at < 64oF (18oC), >82oF (28oC)
Approvals	CE, UL
Safety	This meter is intended for indoor use and protected, against the users, by double insulation per EN61010-1 and IEC61010-1 2nd Edition (2001) to CAT III 600V; Pollution Degree 2. The meter also meets UL 61010A-1, First Edition
UL Listed	The UL mark does not indicate that this product has been evaluated for the accuracy of its readings.
Function	Max Range / Resolution	Basic Accuracy
True Power (W)	600kW / 10W	±5%+ 20d
Apparent Power(kVA)	600kVA / 10kVA	±2%+ 20d
Reactive Power (kVAR)	600kVAR/10VAR	±5%+ 20d
Horsepower (HP)	800HP/0.01HP	±5%+ 20d
Phase Angle (f)	-60 to +60° / 0.1°	±6°
AC Current	(Trms): 1000A / 10mA	±2%+ 20d
uA Current (AC+DC) (Trms)	1000ìA / 10nA	±1%+ 20d
AC/DC Voltage	(Trms): 600V / 0.1mV	±1%+ 20d
Resistance (½)	1000ω / 0.1ω	±1%+ 10d
Resistance (M½)	100Mω / 1kω	±5%+ 10d
Capacitance	7000ìF / 1nF	±1.5%+ 5d
Frequency	40Hz to 1kHz / 0.1Hz	±0.5%+ 2d
Temperature (Type K)	-58 to 1000°F / 0.1°F -50 to 900°C / 0.1°C	±1%+ 2°F ±1%+ 1°C
Dimensions	9 x 3 x 1.6" (228 x 76 x 39mm)
Weight	16.4oz (465g)

Test Equipment General Attributes
Product Height	2.40 IN
Product Length	12.70 IN
Product Width	5.20 IN
Shipping Height	2.40 IN
Shipping Length	12.70 IN
Shipping Width	5.20 IN
