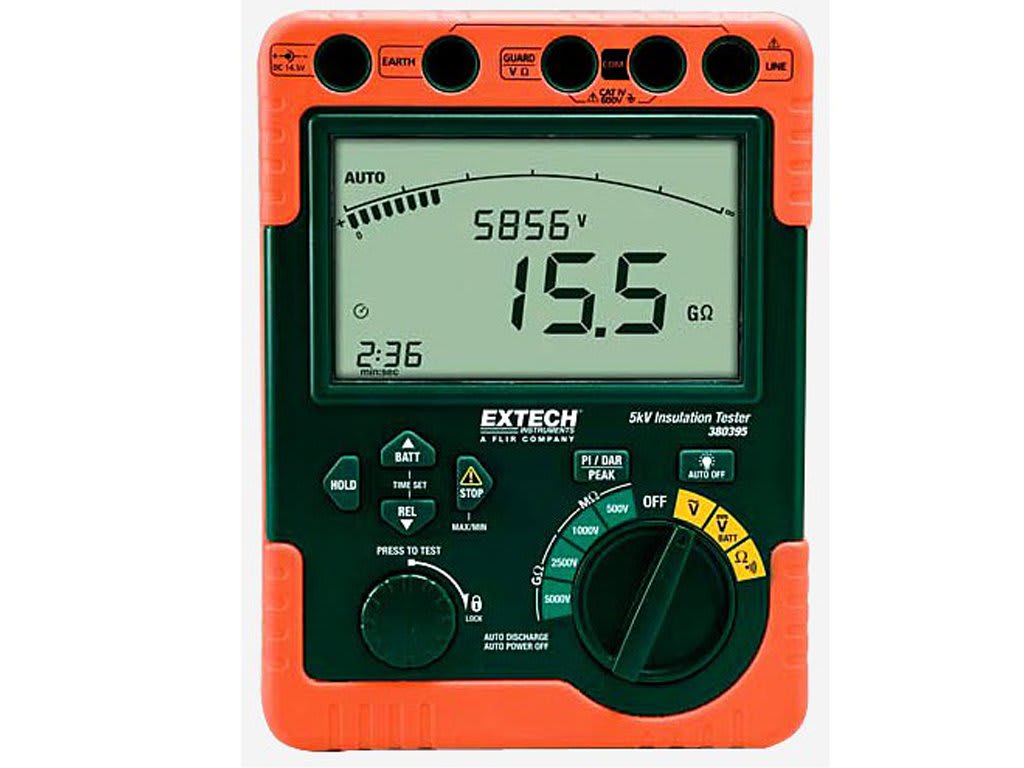

Extech 380396 - High Voltage Digital Insulation Tester (220V)

Name: Extech 380396 - High Voltage Digital Insulation Tester (220V)
Brand: Extech
SKU: Extech380396
Price: 831.73 USD
Availability: InStock

0 reviews | UPC: 793950803967 | Model: Extech 380396

Extech 380396 Digital High Voltage Insulation Tester

Compare

Insulation Tester, High Voltage, 220V

Test Voltages of 500V, 1000V, 2500V, and 5000V
Measure Insulation Resistance to 60GOhm
Large 6000 count display with bargraph and backlight
Polarization Index measurement (PI)
Dielectric Absorption Ratio measurement (DAR)
AC/DC Voltage measurement from 0 to 600V with Max/Min, Peak and Relative functions
1 to 15 minute timer function for IR measurements
Resistance measurement
Indication of output voltage and discharge voltage
Auto-discharge function and voltage output warning function

View Product Details

List Price: $933.90

Your Price: $831.73

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Extech 380396 Insulation Tester, High Voltage, 220V	Extech 380395 Digital High Voltage Insulation Tester (120V)
Price
In Stock
IR Test Voltage	1,000 V, 2,500 V, 5,000 V, 500 V	1,000 V, 2,500 V, 5,000 V, 500 V
Maximum Insulation Resistance	60 G Ohms	60 G Ohms
Automated Test Results	Dielectric Absorption Ratio, Dielectric Discharge	Dielectric Absorption Ratio
Compare	Add to compare	Add to compare

Recommended for you

Extech 380396

Test Voltage: 500V/1000V/2500V/5000V
Insulation Resistance: 0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
AC/DC Voltage: 0 to 600V
Resistance: 0 to 600Ω
Continuity: 50Ω

High Voltage Digital Insulation Tester (220V)

Wide Range Measurement up to 5kV with Insulation Resistance to 60GOhm

The 380396 measures Insulation Resistance to 60GΩ with test voltages of 500V, 1000V, 2500V, and 5000V. Featuring polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak and Relative functions, and 1 to 15-minute timer function for IR measurements. Comes with test leads, eight C batteries, 220V AC adaptor, heavy-duty carrying case, and user manual.

General Specifications
Test Voltage	500V/1000V/2500V/5000V
Insulation Resistance	0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
Accuracy	?2.5% of reading
AC/DC Voltage	0 to 600V
Accuracy	?1% of reading
Resistance	0 to 600Ω
Accuracy	?1.5% of reading
Continuity	50Ω
Power	Eight type C batteries
Dimensions	7.8 x 5.8 x 3.4" (198 x 148 x 86mm)
Weight	3.2lbs (1438g)

Tech Specs

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 2,500 V, 5,000 V, 500 V
Maximum Insulation Resistance	60 G Ohms
Automated Test Results	Dielectric Absorption Ratio, Dielectric Discharge
Type	Battery, Line
Minimum Insulation Resistance	0 G Ohms
Display (Megohmmeter)	Digital
Continuity Test	Yes
Power Supply	Battery, Line Powered
Timer	Yes
CAT Rating	IV
CAT Voltage	600 V
Test Equipment General Attributes
Unique Features	Easy to use Affordable Portable
Warranty	2 YEARS
Safety Approval	CE
Product Weight	3.2 LBS
Product Height	3.4 IN
Product Length	7.8 IN
Product Width	5.8 IN
Data Logging	No
Calibration Included	NIST Calibration
Battery Type	C
Power Supply Voltage	220V Only, Battery Powered
Country of Origin	China
