• Test Voltage:  500V/1000V/2500V/5000V
• Insulation Resistance:  0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
• AC/DC Voltag:e 0 to 600V
• Resistance:  0 to 600Ω
• Continuity:  50Ω

Wide Range Measurement up to 5kV with Insulation Resistance to 60GOhm

With the 380395 measure Insulation Resistance to 60GΩ with test voltages of 500V, 1000V, 2500V, and 5000V. Featuring polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak and Relative functions, and 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 120V AC adaptor, heavy duty carrying case, and user manual.

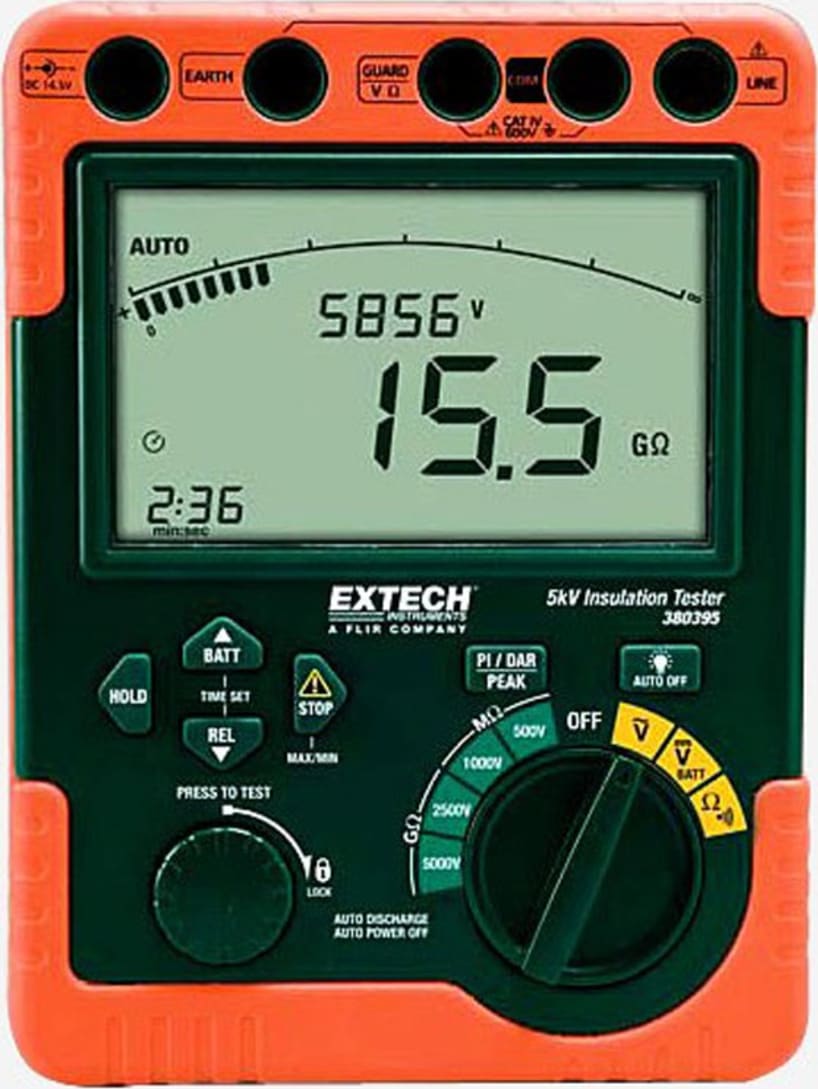

The 380395 Digital High Voltage Insulation Tester provides wide range measurements up to 5kV with Insulation resistance to 60Gohms. This meter can test voltages of 500V, 1000V, 2500V, and 5000V and has a large 6000 count display with bar-graph and back-light. The 380395 also incorporates polarization index measurement (PI), dielectric absorption ratio measurement (DAR), and AC/DC voltage measurement from 0 to 600V with max/min, peak and relative functions. Other features include 1 to 15 minute timer function for IR measurements, resistance measurement, auto-ranging scale, and indication of output voltage and discharge voltage.

With the 380395 measure Insulation Resistance to 60GΩ with test voltages of 500V, 1000V, 2500V, and 5000V. Featuring polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak and Relative functions, and 1 to 15 minute timer function for IR measurements.

Additional Features

Polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak and Relative functions, and 1 to 15 minute timer function for IR measurements.

Application and use of insulation testers

Insulation testers can be used to test motor, transformer windings, instruments, and appliances, check for moisture in wire and cable assemblies, safely evaluate a new wiring installation, and check for carbon tracking in breakers, relays, and switches. Extech Insulation Testers offer high sensitivity to assure reliable monitoring of low resistance motor windings.
