Extech TKG250 Ultrasonic Thickness Gauges - Min Range: 1, Max Range: 508, Data logging Capability: Yes

Name: Extech TKG250 Ultrasonic Thickness Gauges - Min Range: 1, Max Range: 508, Data logging Capability: Yes
Brand: Extech
SKU: ExtechTKG250
Price: 3140.81 USD
Availability: InStock

0 reviews | UPC: 793950152508 | Model: Extech TKG250

Compare

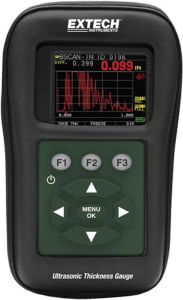

Color Waveform Ultrasonic Thickness Gauge/Datalogger

Color LCD display shows red, yellow and green visual alarm indication
Live Waveform (A-scan for thickness verification)
File compare feature as a real time corrosion monitor
Dynamic change of waveform color on alarm
Grid review of saved readings
Echo to Echo option to ignore coatings
100K internal datalogger with export to Excel
B-scan (visual cross section of test piece)
Vibrating alarm indication
Wide measurement range: 5MHz probe: 0.040" to 20" of steel 10MHz probe: 0.020” to 20" of steel (optional)
Sunlight readable dot-matrix display with backlight
Multiple transducer options for high temperature and difficult to measure materials
Fast minimum feature to capture minimum thicknesses
On screen display of 8 languages
Splash-proof (IP54), high impact, compact housing

Applications

Boiler Tubes
Pressure Vessels
Storage Tanks
Ship Hulls
Containers
Home Oil Tanks
Pipes
Steam Lines
Compressors
Shafts
Bridge Pins
Bond Inspection

View Product Details

List Price: $3,529.00

Your Price: $3,140.81

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Extech TKG250 Color Waveform Ultrasonic Thickness Gauge/Datalogger	Extech TKG100 Digital Ultrasonic Thickness Gauge	Extech TKG150 Digital Ultrasonic Thickness Gauge/Datalogger
Price
In Stock
Min Range	1	1	1
Max Range	508	508	508
Data logging Capability	Yes	No	Yes
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Extech TKG250 Digital Ultrasonic Thickness Gauge/Datalogger with Color Waveform

File compare feature as a real time corrosion monitor
Dynamic change of waveform color on alarm
Grid review of saved readings
Fast minimum feature to capture minimum thicknesses
On screen display of 8 languages

The TKG250 is a Digital Ultrasonic Thickness Gauge/Datalogger with Color Waveform function. Extech offers Thickness Gauges designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. Datalogs up to 100K readings and can be exported to Excel® for further analysis.

The TKG250 offers a simple user interface packaged in a custom molded high-density plastic case with rubber keypad. This gauge offers reliable, accurate thickness readings on mostly steel structures with access to only one side. Offers live color waveform (A-Scan).

The TKG250 provides a gain adjustment, vibrating alarm and illuminating keypad conditions, and automated transducer replacement notification feature.

Common Functions	Description
Thickness Range (in Steel)	5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.020 to 20” (0.50 to 508mm)
Languages	English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian
Hold Mode	Holds display to retain last thickness reading with reverse video display
Freeze Mode	Freezes display (ideal for high temperature readings)
Fast Min/Max Mode	Displays min or max and actual thickness value at 20 measurements/sec
Units	Displays min or max and actual thickness value at 20 measurements/sec
Alarms	Min/Max depth, beeps and display flashes as well as keypad illumination; TKG150/TK250 also vibrate
Illuminating Keypad	F1 = Red, F2 = Yellow, F3 = Green for easy, go/no-go testing
Additional Functions	Model TKG100	Model TKG150	Model TKG250
Gain - Variable adjustment	-	Low, Standard, High	In 1dB steps from 20-90dB or Automatic Gain Control (ACG) for waveform
B-Scan - Displays a cross section of the test piece	-	Non-Encoded	Encoded or Non-Encoded - displays with optional encoder
Echo to Echo	-	Measure the metal thickness only (Paint & coatings do not affect base material thickness value)
Differential Mode	-	Displays the difference from the actual thickness measurement and a user entered reference value
Velocity Mode	-	Displays acoustic sound speed
Datalogger	-	Records 100K readings in linear, 2D, 3D grid or boiler alphanumeric files, 20 character file name, export to excel via Extech XPorter interface program, also compatible with Ultrapipe. TKG250 also has file compare and grid review features
Range	-	-	Adjustment of manual range control or auto zoom tracking to center echoes independent of selected range
Rectification Modes	-	-	RF, Half Wave Positive, Half Wave Negative and Full Wave Rectification
Live Waveform (A-Scan)	-	-	Full adjustments for gain in 1dB step or AGC, main bang blank, blank after first received echo, range including zoom auto tracking to center echoes independent of material and rectification
Battery Life	Up to 50 hrs (20hrs w/backlighting)	Up to 50 hrs (20hrs w/backlighting)	8 to 14hrs (depends on operating conditions)

Thickness Gauges/Ultrasonic Thickness Gauges Template
Min Range	1 Min Range mm
Max Range	508 Max Range mm
Data logging Capability	Yes
Test Equipment General Attributes
Warranty	2 YEARS
Safety Approval	CE
Interfaces I/O	USB
IP Rating	IP54
Data Logging	Yes
HTS/Schedule B Number	9031.80.8085
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States
