Extech PQ3470 Power Quality Analyzer - Type (Power Quality): 3 Phase, Maximum Current AC: 3000 A, Maximum Voltage AC: 600 V

Name: Extech PQ3470 Power Quality Analyzer - Type (Power Quality): 3 Phase, Maximum Current AC: 3000 A, Maximum Voltage AC: 600 V
Brand: Extech
SKU: ExtechPQ3470
Price: 2962.81 USD
Availability: InStock

0 reviews | UPC: 793950334706 | Model: Extech PQ3470

Compare

3-Phase Power & Harmonics Analyzer/Datalogger

Large dot-matrix, sun-readable, graphical, backlit LCD
Full system analysis with up to 35 parameters
- V (phase-to-phase), V (phase-to-ground)
- A (phase-to-ground)
- KW / KVA / KVAR / PF (phase)
- KW / KVA / KVAR / PF (system)
- KWH / KVAH / KVARH / PFH (system)
- Phase angle
Select 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
On-screen Harmonics display (1 to 50th order)
Simultaneous display of Harmonics and Waveform
Display of Waveform with peak values
Analysis of Total Harmonic Distortion (THD)
Graphic Phase diagram with 3-Phase system parameters
3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
Log up to 30,000 readings on a removable SD memory card in Microsoft Excel ® format
Wide sampling rate range (2 seconds to 2 hours)
Captured measurements can be imported directly into Excel via the SD memory card
Built-in Clock and Calendar
Easy-to-use onscreen menu
Easy-to-hold rugged over molded housing

View Product Details

List Price: $3,329.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories
Test Leads and Instrument Accessory Kits

for the Extech PQ3470

Extech PQ34-12 1200A Current Clamp Probes (Set of 3)

Catalog: PQ34-12

(0)

In Stock!

Add to Cart

Extech PQ34-2 200A Current Clamp Probes (Set of 3)

Catalog: PQ34-2

(0)

In Stock!

Add to Cart

Extech PQ34-30 3000A Flexible Current Probes (Set of 3)

Catalog: PQ34-30

(1)

In Stock!

Add to Cart

Extech PQ1000 CAT IV Test Lead Accessory Kit For PQ3400 series power analyzers, Set of...

Catalog: PQ1000

(0)

In Stock!

Add to Cart

Extech PQ3470 - 3-Phase Graphical Power & Harmonics Analyzer/Datalogger

Captured measurements can be imported directly into Excel via the SD memory card
Built-in Clock and Calendar
Analysis of Total Harmonic Distortion (THD)
Graphic Phase diagram with 3-Phase system parameters
On-screen Harmonics display (1 to 50th order)

The PQ3470 is a 3-phase graphical power and harmonics analyzer/data logger capable of logging up to 30,000 sets of measurements on a removable SD memory card. The meter features a 3-phase voltage or current unbalanced ratio (VUR, AUR) and unbalanced factor, captures transient events (including dip, swell, and Outage) with programmable threshold (%), a wide sampling rate range (2 seconds to 2 hours), a built-in clock/ calendar and a CAT III 600 Volt safety rating. Complete with a 1-year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately.

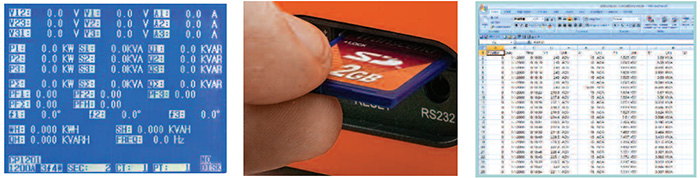

Backlit LCD displays numerical values. The data can be stored in the SD memory card (included) and then transferred from meter to PC using Excel ® software and datalogged readings.

General Specifications
---	Range Basic	Accuracy
AC Voltage (True rms)	600.0V ±	(0.5%rdg)
AC Current	3000A ±	(0.5%rdg)
Active Power (MW)	9.999MW ±	(1.0%rdg)
Apparent Power (MVA)	9.999MVA ±	(1.0%rdg)
Reactive Power (MVAR)	9.999MVAR ±	(1.0%rdg)
Power Factor	0.00 to 1.00 ±	0.04
Frequency Range	45Hz to 65Hz ±	0.1Hz
Phase	-180° to +180.0°	±1°
Harmonics	1 to 50th ±2%	(1 to 20); ±4% (21 to 31)
Crest Factor	1.00 to 99.99	±(5%)
Current Clamp input	200mV, 300mV, 500mV 1V, 2V, 3V; user-selectable	±(0.5%rdg)
Peak AC Voltage Accuracy	---	±(5%)
Peak AC Current Accuracy	---	±(5%)
Active Power Energy (MWH)	0.0kWh to 9.999MWH	±(2.0%rdg)
Apparent Power Energy (MVAH)	0.0KVAh to 9.999MVAH	±(2.0%rdg)
Reactive Power Energy (MVARH)	0.0kVARh to 9.999MVARH	±(2.0%rdg)
Datalogging	30,000 readings (2GB SD memory Card)
Dimensions/Weight	8.86 x 4.92 x 2.52" (225 x 125 x 64mm) / 2.2lbs (1010g)

Power Measurement/Power Quality Analyzer Template
Type (Power Quality)	3 Phase
Maximum Current AC	3000 A
Maximum Voltage AC	600 V
True Power / Work ( W)	Yes
Apparent Power (VA)	Yes
Reactive Power (VAR)	Yes
Voltage Input Channels	4
Measurement Frequency (Power Quality)	50 Hz, 60 Hz
Display (Power Quality)	Graphical
Transient Capture	Yes
Displays Waveform	Yes
Harmonics	Yes
Maximum Harmonics Range	50
Class A Compliant	No
Crest Factor	Yes
CAT Rating	III
CAT Voltage Rating (V)	600V
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE, UL
Product Height	9.30 IN
Product Length	20.10 IN
Product Width	15.70 IN
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	AA Battery Type 8 AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
Shipping Height	9.30 IN
Shipping Length	20.10 IN
Shipping Width	15.70 IN
