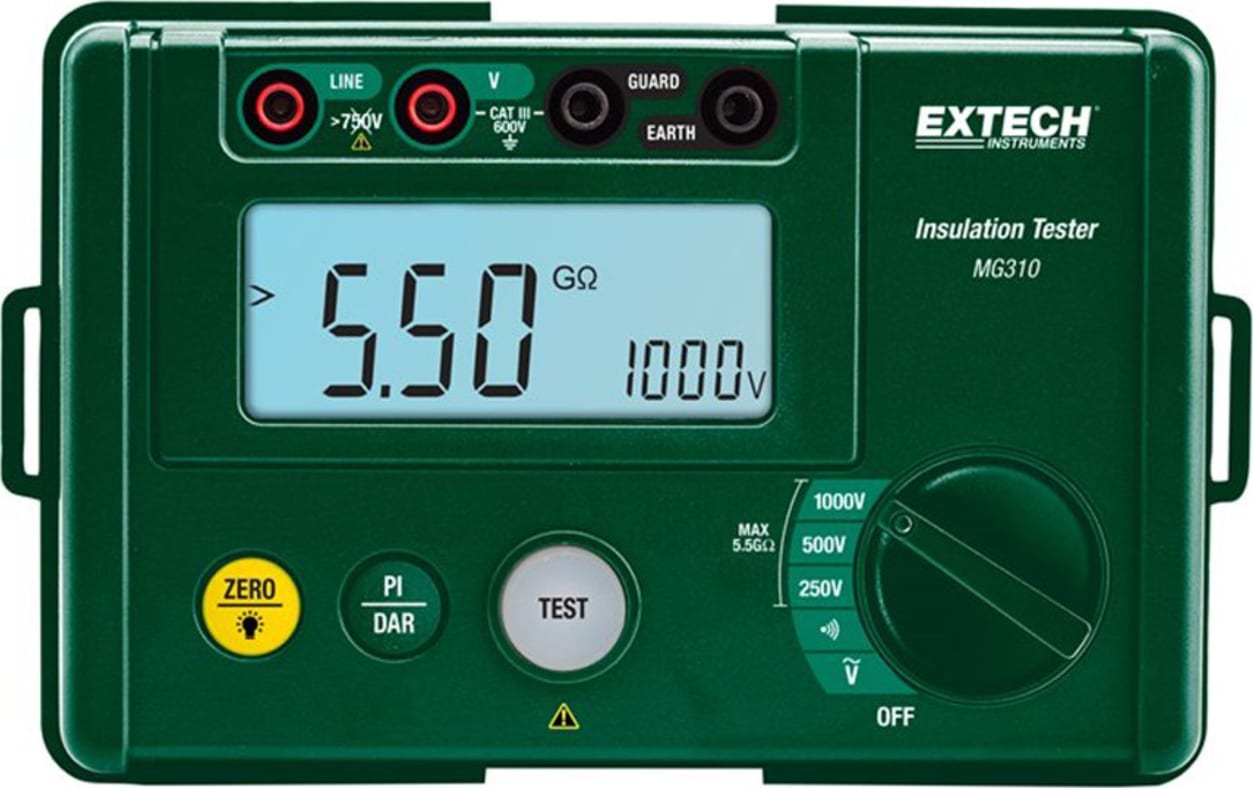

Extech MG310 - Compact Digital Insulation Tester

Name: Extech MG310 - Compact Digital Insulation Tester
Brand: Extech
SKU: ExtechMG310
Price: 205.58 USD
Availability: InStock
Rating: 1.00 (1 reviews)

1 (1 Review) | UPC: 793950380109 | Model: Extech MG310

Compare

Compact Digital Insulation Tester

Test Voltages of 250V, 500V, and 1000V
Measure Insulation Resistance to 5.5GOhm (autoranging)
AC Voltage measurement from 30 to 600V
Polarization Index measurement (PI)
Dielectric Absorption Ratio measurement (DAR)
10MOhm internal resistance test
Low Resistance measurement with Zero function
Continuity beeper
Large 2000 count dual display with backlight
High voltage and overload indication

View Product Details

List Price: $230.99

Your Price: $205.58

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Extech MG310 Compact Digital Insulation Tester	Extech MG310-NIST Compact Digital Insulation Tester W/NIST- PLEASE NOTE: If not in stock: ...
Price
In Stock
IR Test Voltage	1,000 V, 250 V, 500 V	1,000 V, 250 V, 500 V
Maximum Insulation Resistance	5.5 G Ohms	5.5 G Ohms
Automated Test Results	Dielectric Absorption Ratio	Dielectric Absorption Ratio
Compare	Add to compare	Add to compare

Recommended for you

Extech MG310

Test Voltage: 250V/500V/1000V
Insulation Resistance: (auto-ranging) 0.00 to 99.9MΩ , 100M to 5.5GΩ
AC Voltage: 30 to 600V
Resistance: 0.00 to 200Ω

Compact Digital Insulation Tester

Compact Insulation Resistance Tester with Snap-On Protective Cover

The MG310 is a Compact Insulation Resistance Tester that allows quick and easy testing/troubleshooting of motors, transducers, and other industrial appliances. Wide range measurement up to 1000V with Insulation Resistance to 5.5GΩ. Includes an easy snap on the protective hard cover and soft pouch to conveniently transport your meter and accessories to the next job site or to safely store away. Featuring Low Resistance measurement with Zero function, a Continuity beeper, Large 2000 count dual display with backlight, High voltage and overload indication, Auto-discharge and voltage output warning functions as well as Low battery indication. Complete with test leads, alligator clips, 6 x AA batteries, hardcover, and soft carrying case.

Specifications	Range	Basic Accuracy
Test Voltage	250V/500V/1000V
Insulation Resistance (autoranging)	0.00 to 99.9MΩ , 100M to 5.5GΩ	±5% of reading
AC Voltage	30 to 600V	±2% of reading
Resistance	0.00 to 200Ω	±2% of reading
Dimensions	6 x 4 x 2.8" (150 x 100 x 71mm)
Weight	1.5lbs (0.7kg)

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 250 V, 500 V
Maximum Insulation Resistance	5.5 G Ohms
Automated Test Results	Dielectric Absorption Ratio
Type	Battery
Minimum Insulation Resistance	0 M Ohms (0 G Ohms)
Display (Megohmmeter)	Digital
Continuity Test	Yes
Power Supply	Battery
Timer	Yes
CAT Rating	III
CAT Voltage	600 V
Test Equipment General Attributes
Unique Features	•AC Voltage measurement from 30 to 600V •10MOhm internal resistance test •Low Resistance measurement with Zero function •Continuity beeper •Large 2000 count dual display with backlight •High voltage and overload indication •Auto-discharge and voltage output warning functions •Low battery indication •Complete with test leads, alligator clips, 6 AA batteries, hard cover, and soft carrying case
Warranty	2 YEARS
Safety Approval	CE
Product Weight	1.5 LBS
Product Height	2.8 IN
Product Length	6 IN
Product Width	4 IN
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	3.90 IN
UPC	793950380109
Shipping Length	9.60 IN
Shipping Width	6.25 IN
Other Information	Depth: 2.8"

1

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

MG310

1.0

It is measuring good,but in the PI/DAR test mode it never switch to the second test. Mailed Extech Service the problem but was told to write to
Extech Repair Shop.They never answered any mail. Service from Extech is very bad. I can see if a motor is bad or not that is enough.
For better testing results get a different Megger.

Tequipment Response: THank you for your feedback. If you are still having issues and need help feel free to contact us and we will help get the issue resolved.

Anonymous on May 20, 2018
