Extech MA430T-NIST 400A True Rms AC Clamp Meter with NIST

Name: Extech MA430T-NIST 400A True Rms AC Clamp Meter with NIST
Brand: Extech
SKU: ExtechMA430T-NIST
Price: 231.55 USD
Availability: InStock

0 reviews | UPC: 793950374320 | Model: Extech MA430T-NIST

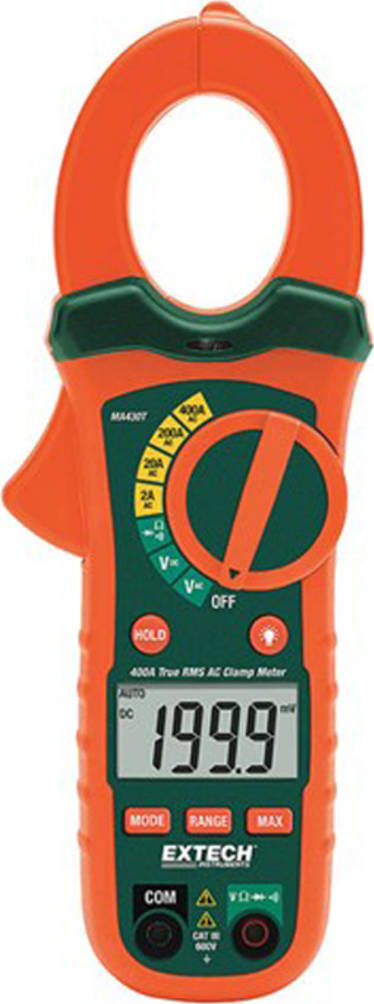

Extech MA430 Series 400A True RMS AC Clamp Meter NCV

Compare

400A TRUE RMS AC CLAMP METER WITH NIST- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

400 A True RMS Clamp Meter + NCV with NIST Calibration
Built-in non-contact Voltage detector with LED alert
Backlit LCD display
1.2" (30mm) jaw size for conductors up to 350MCM
True RMS models for MA430T/MA435T and multimeter functions included on all clamp meters CAT III - 600V rating
Data Hold
Low battery indication and Auto Power Off
Complete with test leads, general purpose Type K bead wire temperature probe (for MA435T), 9V battery, and soft case

View Product Details

List Price: $259.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Extech MA430T-NIST

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

400 A True RMS Clamp Meter + NCV with NIST Calibration

The Extech MA430T-NIST Clamp Meter TRMS NIST 400A Clamp Meter Digital Clamp Meter Jaw Style Clamp On Max AC Amps 400 Max AC Volts 600 Max DC Volts 600 Max Ohms 20M Jaw Capacity 1-13/64 In. Counts 2000 Battery Type 9V Safety Rating CAT III 600V Calibration Certificate NIST AC Response TRMS Audible Continuity Yes Diode Test Yes Display Backlit LCD Includes Instructions Test Leads 9V Battery Carrying Case Nist Certificate of Calibration.

Meter Description

NCV sensor
Current clamp
Non - contact AC voltage indicator light
Clamp trigger
Data Hold button
LCD display
MODE select button
COM input jack
Rotary Function switch
Backlight button
Range button
MAX button
V Ω Hz jack
Battery Cover (rear)

Display icons Description

HOLD	Data Hold
AUTO	Autoranging
MAX	Max hold
DC	Direct Current
AC	Alternating Current
	Low battery
V	Volts (Voltage)
	Ohms (Resistance)
A	Amperes (Current)
m, M, k	Unit of measure prefixes
	Continuity test
	Diode test

Model	MA430 / MA430T	MA435T	Basic Accuracy
Display counts	2000	4000
True RMS	— / Yes	Yes
AC Current (max res.)	400A (0.001A)	400A (0.01A)	±(2.5% + 8d)
DC Current (max res.)	-	400A (0.01A)	±(2.5% + 5d)
AC Voltage (max res.)	600V (0.1mV)	600V (0.1mV)	±(1.5% + 5d)
DC Voltage (max res.)	600V (0.1mV)	600V (0.1mV)	±(1.5% + 2d)
Resistance (max res.)	20MO (0.1O)	40MO (0.1O)	±(1.5% + 2d)
Frequency (max res.)	-	10Hz to 10kHz	±(1.5% + 2d)
Capacitance (max res.)	-	100µF (0.01nF)	±(3.0% + 5d)
Temperature (max res.)	-	-4 to 1400°F/-20 to 760°C (0.1°)	±(3% + 9°F/5°C)
Diode/ Continuity	Yes	Yes
Dimensions/ Weight	7.8x2.8x1.6" (197x70x40mm)/ 6.5oz (183g)
General Specifications
Clamp jaw opening	30mm (1.18") approx.
Display	2,000 count LCD
Continuity check	Threshold <150Ω; Test current < 0.5mA
Diode test	Test current of 0.3mA typical; Open circuit voltage 1.5VDC typical
Low Battery indication	Battery symbol is displayed
Over-range indication	'OL' displayed
Display rate	2 readings per second, nominal
Input Impedance	10MΩ (VDC and VAC)
AC bandwidth	50 to 60Hz (VAC, AAC)
AC response	True rms
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)
Storage Humidity	<80%
Operating Altitude	2000meters (7000ft) maximum.
Battery	9V battery
Auto power OFF	After approx. 15 minutes
Dimensions & Weight	200x66x37mm (7.9x2.6x1.5"); 205g (7.23oz)
Safety	For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V, Pollution Degree 2
Approvals	CE

Function	Range	Resolution	Accuracy (% of reading + digits)
AC Current 50/60Hz	2.00 A	0.001A	±(2.5% + 15 digits)
	20.00 A	0.01A	±(2.5% + 8 digits)
	200.0 A	0.1A	±(2.5% + 8 digits)
	400 A	1A	±(3.0% + 8 digits)
AC Voltage 50 to 60Hz	200.0mV	0.1mV	±(1.5% + 35 digits
	2.000 V	0.001V	±(1.8% + 8 digits)
	20.00 V	0.01V
	200.0 V	0.1V
	600 V	1V	±(2.5% + 8 digits)
DC Voltage	200.0 mV	0.1mV	±(0.8% + 2 digits)
	2.000 V	0.001V	±(1.5% + 2 digits)
	20.00 V	0.01V
	200.0 V	0.1V
	600 V	1V	±(2.0% + 2 digits)
Resistance	200.0Ω	0.1Ω	±(1.0% + 4 digits)
	2.000kΩ	0.001kΩ	±(1.5% + 2 digits)
	20.00kΩ	0.01kΩ
	200.0kΩ	0.1kΩ
	2.000MΩ	0.001MΩ	±(2.5% + 3 digits)
	20.00MΩ	0.01MΩ	±(3.5% + 5 digits)

Tech Specs

Test Equipment General Attributes
Country of Origin	China
