Extech MA410T-NIST 400 A AC True RMS Clamp Meter + NCV with NIST Calibration

Name: Extech MA410T-NIST 400 A AC True RMS Clamp Meter + NCV with NIST Calibration
Brand: Extech
SKU: ExtechMA410T-NIST
Price: 146.94 USD
Availability: InStock

0 reviews | UPC: 793950794111 | Model: Extech MA410T-NIST

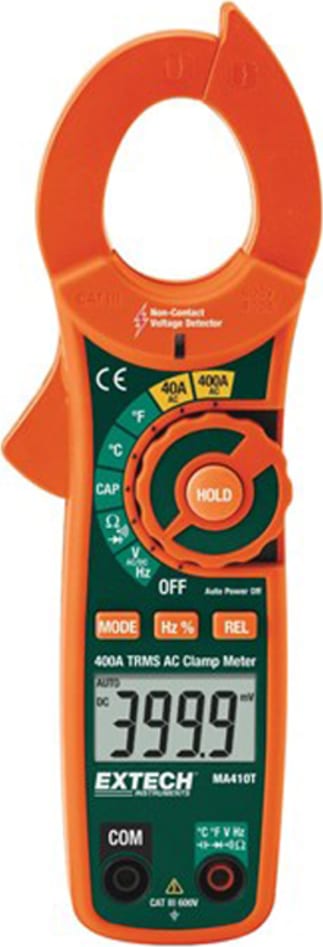

Extech MA410T 400A AC True RMS Clamp Meter NCV

Compare

400A AC TRUE RMS CLAMP METER + NCV WITH NIST- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

AC Current Clamp Meter with built-in non-contact Voltage Detector
True RMS for accurate readings of non-sinusoidal waveforms
AC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Duty Cycle, Diode and Continuity
Integrated Non-Contact Voltage Detector with LED alert
Compact size allows measurments in tight locations
1.2" (30 mm) jaw size for conductors up to 350 MCM
Relative Mode for Capacitance Zero and Offset Adjustment |Data Hold and Auto Power Off
Complete with test leads, general purpose Type K temperature probe, two AAA batteries, and carrying case

View Product Details

List Price: $164.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Extech MA410T-NIST

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

400A AC True RMS Clamp Meter + NCV with NIST Calibration

The Extech MA410T-NIST 400 A AC True RMS Clamp Meter + NCV is used to quickly check for the presence of live wires before testing plus 40 A and 400 A current ranges. Made in such a way that the Extech MA-410T is compact in size, the user is able to put it to use even in the tightest of spaces and still get results. The Extech MA401T comes with test leads, a general purpose Type K bead wire temperature probe, two AAA batteries and a carrying case.

	Range	Max. Resolution	Basic Accuracy (% readings+digits)
Display counts	4000
AC Current	40.00A, 400.0A	0.01A	±(2.5% + 8d)
AC Voltage	4.000V, 40.00V, 400.0V, 600V	0.001V	±(1.8% + 8d)
DC Voltage	400.0mV, 4.000V, 40.00V, 400.0V, 600V	0.1mV	±(0.8% + 2d)
Resistance	400.0Ω, 4.000kΩ, 40.00kΩ, 400.0kΩ, 4.000MΩ, 40.00MΩ	0.1Ω	±(0.8% + 2d)
Frequency	10Hz to 10kHz	0.01Hz	±(1.5% + 2d)
Capacitance	40.00nF, 400.0nF, 40.00μF, 100.0μF	0.01nF	±(3.0% + 5d)
Temperature	-4 to 1400°F (-20 tΩ 760°C)	0.1°	±(3% + 9°F/5°C)
Duty Cycle	0.5 to 99.0%	0.1%	±(1.2% + 2d)
Diode	Yes
Continuity	Yes
Dimensions	7.9x2.6x1.5" (200x66x37mm)
Weight	7.2oz (205g)

Tech Specs

Clamp Meters/Clamp Meters Template
Maximum Current AC	400 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Capacitance	Yes
Auto Ranging/Manual	Auto Ranging
Test Equipment General Attributes
Warranty	1 YEARS
Product Weight	205 GRAMS (0.452 LBS)
Product Height	37 IN
Product Length	200 MM (7.87 IN)
Product Width	66 IN
Shipping Weight	1.1 LBS
Calibration Included	NIST Calibration
Battery Type	AAA
Country of Origin	China
