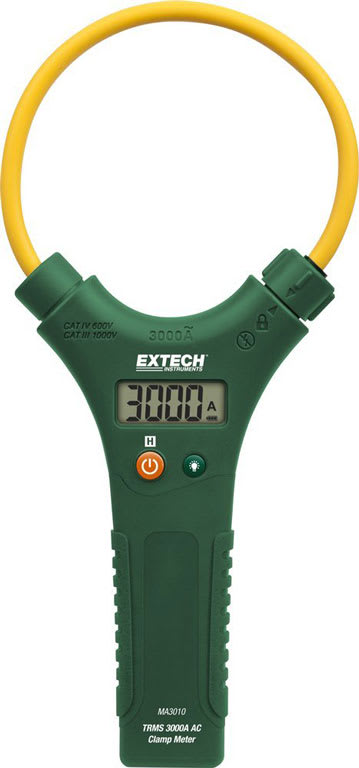

Extech MA3010-NIST - 3000A True RMS AC Flex Clamp Meter w/NIST

0 reviews | UPC: 793950373118 | Model: Extech MA3010-NIST

Extech MA3010-NIST

Compare

Clamp Meter, Flex, 3000A AC TRMS CAT IV w/NIST MA3010- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Measure AC Current up to 3000A
True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
Flexible 10" (25.4cm) clamp jaw easily wraps around bus bars and cable bundles
7.5mm cable diameter fits into tight spaces and around large conductors
Measures AC Current in three ranges
3000 count backlit LCD display
Over range and Low battery indicator
Auto Power Off with disable
Limited Two Years Warranty

View Product Details

List Price: $355.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Extech MA3010-NIST

Extech 480172 Line Separator, 3 Prong

Catalog: 480172

(5)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Extech MA3010-NIST

True RMS: Yes
Display counts: 3000 count LCD display (backlit)
Jaw size/Cable size: 10" (25.4cm) | 18" (45.7cm)
AC Current: 0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A
Max resolution: 0.01A
Basic ACA Accuracy (% rdg): ±(3%+5 digits)

3000A True RMS AC Flex Clamp Meter w/NIST

10" Flexible Clamp Meter with LCD

The MA3010 is a 3000A True RMS AC Flex Clamp Meter. The MA3010 features a 10 inch flexible clamp with LCD monitor. The True RMS measurements are for accurate readings of noisy, distorted or non-sinusoidal waveforms.

Extech MA3010-NIST 3000A True RMS AC Flex Clamp Meter Specifications

AC Current Ranges	0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A (autoranging)
Max Resolution	0.01A
Basic Accuracy	±(3%+5 digits)
Flex Cable Diameter	0.3" (7.5mm)
Flex Cable Tip Diameter	0.51" (13mm)
Dimensions	11 x 4.7 x 1" (280 x 120 x 25mm)
Weight	6oz (170g)
Clamp Jaw	Flexible type with locking mechanism and 7.5mm (0.3”) coil diameter
Display	3000 count LCD with backlight and multi‐function indicators
Low Battery indication	Battery symbol is displayed and text alert is shown upon power up
Over‐range indication	‘OL’ display
Measurement conversion rate	4 times per second
AC bandwidth	45 to 500Hz (sine wave)
AC response	True RMS
Operating Temperature and Humidity	0~30°C (32~86°F); 80%RH maximum 30~40°C (86~104°F); 75%RH maximum 40~50°C (104~122°F); 45%RH maximum
Storage Temperature and Humidity	‐20°~60°C (‐4°~140°F); 80%RH maximum
Temperature Coefficient	0.2 x specified accuracy / °C, < 18°C (64.5°F), > 28°C (82.4°F)
Altitude	Maximum operating altitude 2000m (6562’)
Battery	Two “AAA” 1.5V batteries
Battery life	200 hours with alkaline batteries
Auto power OFF	After approx. 20 minutes of inactive
Safety Standards	For indoor use and in accordance with the requirements for double insulation to EN61010‐1, EN61010‐2‐032, EN61326‐1; CAT IV 600V, CAT III 1000V, Pollution Degree 2
Shock Vibration	Sinusoidal vibration MIL‐PRF‐28800F (5‐55 Hz, 3g max.)
Drop Protection	1.2m (4’) drop onto hardwood or concrete flooring

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	3000 A
Auto Ranging/Manual	Auto Ranging
Test Equipment General Attributes
Unique Features	True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms 10" (25.4cm) flexible clamp cable
Warranty	2 YEARS
Warranty Details	Limited Two Years Warranty
Safety Approval	CE, RoHS, UL
Product Weight	170 GRAMS (0.375 LBS)
Product Height	11.0 IN
Product Length	1.0 IN
Product Width	4.7 IN
Calibration Included	NIST Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
