Extech CA3018-NIST 3000A AC Flex Clamp-on Adaptor

Name: Extech CA3018-NIST 3000A AC Flex Clamp-on Adaptor
Brand: Extech
SKU: ExtechCA3018-NIST
Price: 328.64 USD
Availability: InStock

0 reviews | UPC: 793950430194 | Model: Extech CA3018-NIST

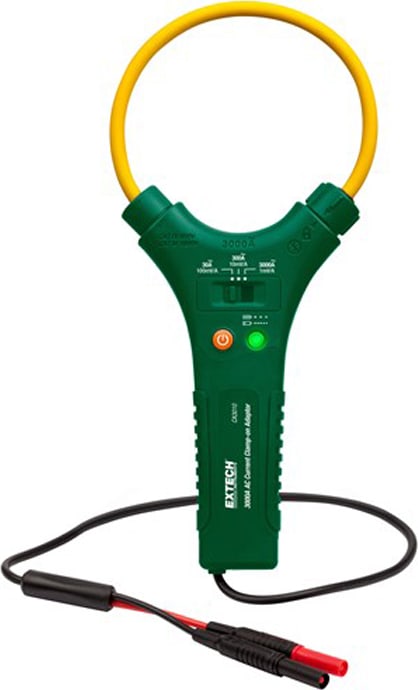

Extech CA3018 3000A AC Flex Clamp-on Adaptor

Compare

CAT IV AC Flex Clamp-On Adapters, 18 Inch W/NIST- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.

Measure AC Current up to 3000A
Flexible 18" (45.7cm) clamp jaw easily wraps around bus bars and cable bundles
7.5mm cable diameter fits into tight spaces and around large conductors
Measures AC Current in three ranges
Easy twist clamp cable closure to Lock or Open
Compatible with most multimeters and clamp meters with standard sized banana plug inputs
Complete with built-in flex clamp cable, 6.6ft (2m) lead with banana plugs, and two AAA batteries
NIST Calibration Certificate

View Product Details

List Price: $328.64

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Extech CA3018-NIST

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Extech CA3018-NIST 3000A AC Flex Clamp-on Adaptor with NIST

18" Flexible Clamp Adaptor for Multimeters/Clamp-On Meters

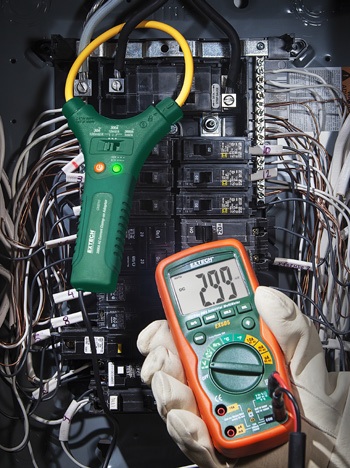

Expand your meter’s capabilities to measure AC Current up to 3000A. Fit most MultiMeters or Clamp Meters with standard shrouded banana plug sockets. Flexible clamp jaw easily wraps around bus bars and cable bundles where standard clamp adaptors and meters can’t. The thin 7.5mm cable diameter easily fits into tight spaces.

A standard Digital MultiMeter (DMM) in mV AC mode can be used to display the current measurement when the CA series Adaptor is connected to the DMM.

The CA3018 is the 18” (45.7cm) clamp version. They are professional CAT IV 600V CAT III 1000V instruments.

Convenient flexible jaw cable with easy twist lock

Extech CA3018-NIST 3000A AC Flex Clamp-on Adaptor Specifications

AC Current Ranges	30.00A (100mV per Amp output); 300.0A (10mV per Amp output); 3000A (1mV per Amp output)
Max Resolution	0.01A
Basic Accuracy	±3%FS (45 to 500Hz)
Flex Cable Diameter	0.3" (7.5mm)
Flex Cable Tip Diameter	0.51" (13mm)
Dimensions	13.8 x 5.1 x 1" (350 x 130 x 25mm)
Weight	7.1oz (200g)
Clamp Jaw	Flexible type with locking mechanism and 7.5mm (0.3”) coil diameter
Battery status indication	LED indicator blinks slowly (battery power > 2.5V) or quickly (battery power < 2.5V)
AC bandwidth	45 to 500Hz (sine wave)
Operating Temperature and Humidity	0~30°C (32~86°F); 80%RH maximum 30~40°C (86~104°F); 75%RH maximum 40~50°C (104~122°F); 45%RH maximum
Storage Temperature and Humidity	‐20°~60°C (‐4°~140°F); 80%RH maximum
Temperature Coefficient	0.2 x specified accuracy / °C, < 18°C (64.5°F), > 28°C (82.4°F)
Altitude	Maximum operating altitude 2000m (6562’)
Battery	Two “AAA” 1.5V batteries
Battery life	160 hours with alkaline batteries
Safety Standards	For indoor use and in accordance with the requirements for double insulation to EN61010‐1, EN61010‐2‐032, EN61326‐1; CAT IV 600V, CAT III 1000V, Pollution Degree 2
Shock Vibration	Sinusoidal vibration MIL‐PRF‐28800F (5‐55 Hz, 3g max.)
Drop Protection	1.2m (4’) drop onto hard wood or concrete floor

Function	Range	Output Voltage	Accuracy
AC Current	30.00 A AC	100mV/1A AC	± (3.0% of Full Scale) for frequency range: 45~500Hz
	300.0A AC	10mV/1A AC
	3000 A AC	1mV/1A AC

Notes: Accuracy is given as ± (% of reading + least significant counts) at 23°C ±5°C with relative humidity lower than 80%.
Accuracy is specified for a period of one year after calibration.
Max. Output Voltage: 4.5V peak
Output Noise: < 5mV for each range

Tech Specs

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	Flexible/Rogowski
Maximum Current AC	3000 A
Maximum Conductor Size	0.29 IN
Test Equipment General Attributes
Warranty	1 YEARS
Product Weight	200 GRAMS (0.441 LBS)
Product Height	13.8 IN
Product Width	5.1 IN
Calibration Included	NIST Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
