Elenco XK-550T Digital/Analog Trainer

Name: Elenco XK-550T Digital/Analog Trainer
Brand: Elenco
SKU: ElencoXK-550T
Price: 203.37 USD
Availability: InStock

0 reviews | UPC: 756619003474 | Model: Elenco XK-550T

Compare

Same as XK-550 with Tools

Complete mini-lab for building, testing and prototyping analog and digital circuits

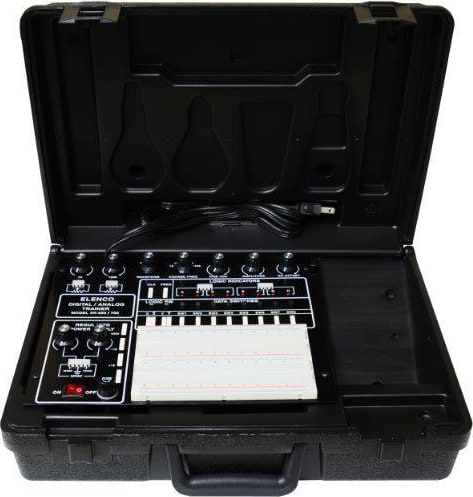

Model XK-550T (shown in photo) is a stock trainer with tools and includes tools shown below (Meter shown sold seperately)
ET-10 IC puller
JW-140 Jumper wire kit
SP-2 Desoldering pump
ST-1 Mini diagonal cutters
ST-2 Mini long nose pliers
ST-3 Wire stripper
ST-5 Screwdriver slotted 3/16”
ST-6 Screwdriver #1 phillips
Anti-static foam pad

View Product Details

List Price: $274.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Elenco XK-550T

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

DELUXE COMPLETE MINI-LAB FOR BUILDING, TESTING AND PROTOTYPING ANALOG AND DIGITAL CIRCUITS

Elenco’s advanced designed Digital/Analog Trainer is specially designed for school projects. It is built on a single PC board formaximum reliability. It includes 5 built-in power supplies, a function generator with continuously variable sine, triangular and square wave forms. All power supplies are regulated and protected against shorts. The trainer is mounted in a professional technician tool case made of reinforced metal with heavy-duty handles and locks. The removable, dual-sided tool pallet has many pockets and elastic retainers to hold a broad line of tools and devices. A special ramp in the case will hold the meter of your choice.

When ordering a meter to be used with the XK-700 Trainer, specify the PSV-50 Kit. It will provide you with the needed Velcro to hold the meter in place.

When ordering tools, specify a TM-30 tool mounting kit. When four or more tools are ordered, the tool mounting kit is supplied FREE!

Dimensions	12 1/4” (H) x 16 3/8” (W) x 5 1/4” (D)
Power Supplies
Variable Power Supply
0V to 20VDC @ 0.5A (0V to 15VDC @ 1A)
0V to –20VDC @ 0.5A (0V to –15VDC @ 1A)
+12VDC @ 1A
–12VDC @ 1A
+5VDC @ 1A
+30VAC center-tapped to 15VAC @ 1A
Analog Section
Function Generator - Sine, Triangular, Square Wave.
Frequency adjustable in five ranges from 1 to 100kHz.
Fine frequency adjust.
Amplitude adjust.
DC offset
Potentiometers
2 undedicated potentiometers 1k. & 100k..
Digital Section
Eight data switches.
Two no bounce logic switches.
Eight LED readouts, buffered.
Clock amplitude 5Vpp square wave.
Bredboards
2 bredboards, each containing 830 tie points (total 1,660).
Fast Track Construction
Most of the components are on one PC board, eliminating all wires between the PC board, pots, regulators and switches. Makes assembly easier and faster, eliminates errors. The XK-550-SEMI and XK-700-SEMI kits require a minimum of construction and are fast and easy to assemble. The PC board comes fully assembled and tested. Where lab time is limited, the SEMI kit is time and cost effective.
