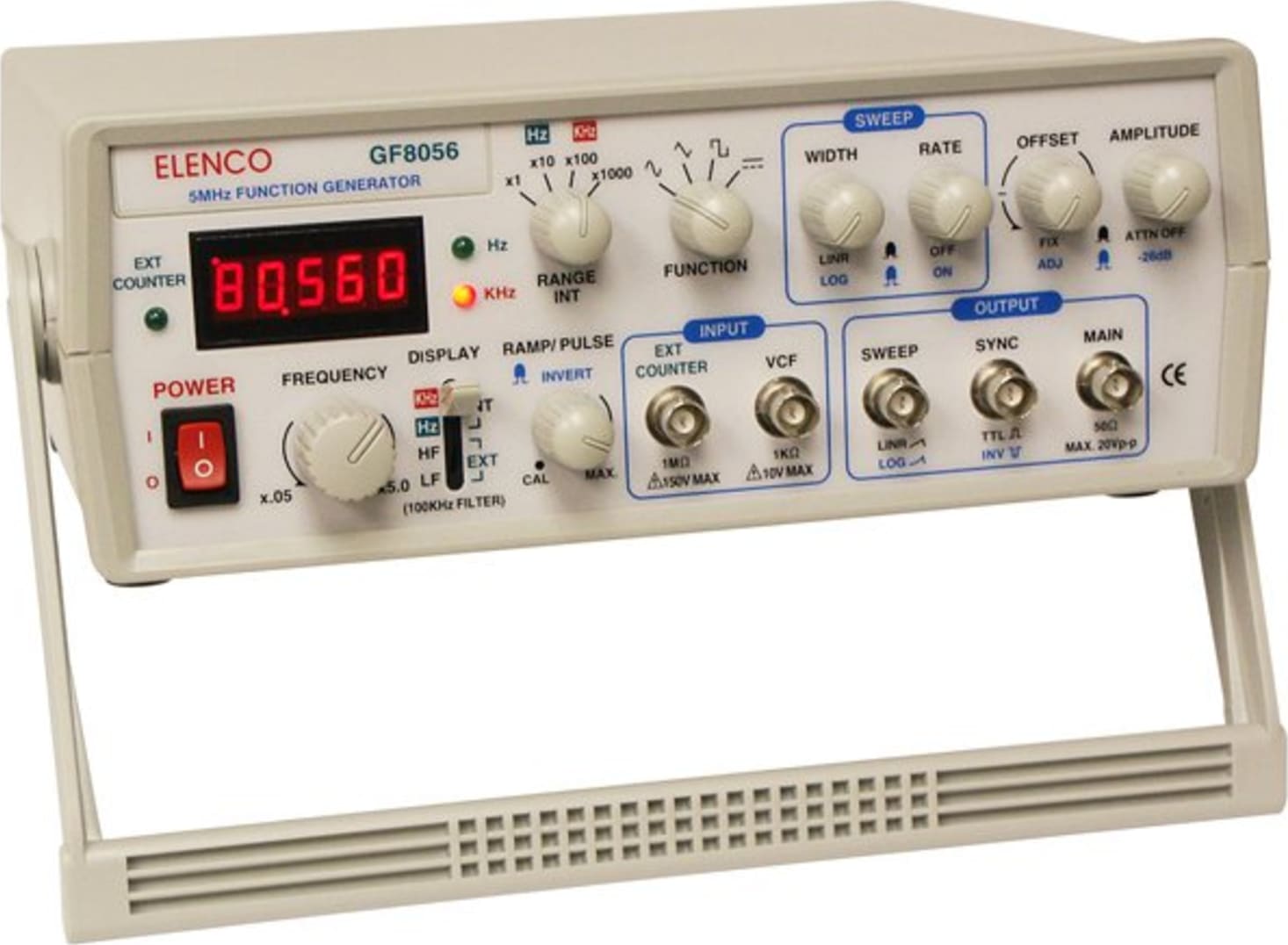

Main Output |
Frequency range | 0.5Hz to 5MHz in 8 ranges (GF-8056) 0.5Hz to 3MHz in 6 ranges (GF-8046) |
Waveforms | 4 waveforms (sine, square, triangle, DC) (GF-8056 only) 6 waveforms (sine, square, triangle, ramp, +pulse, –pulse) (GF-8046 & GF-8025) |
Stability | 0.1% for 15 minutes, 0.2% for 24 hours |
DC offset | Continuously variable +10V no load |
Symmetry | 50% (positive and negative half) |
Linearity | <1% 1Hz-100kHz for triangle wave |
Distortion | <2%, 1Hz to 100kHz for sine wave <1%, 1Hz to 100kHz (GF-8056) |
Rise / fall time | <60ns (GF-8025, GF-8046), <90ns (GF-8056) for square wave |
Attenuator | 0dB, –20dB (<2% accuracy) (GF-8046,8025) X20: –26dB (+2% accuracy), X1: 0dB (GF-8056 only) |
Sync Output |
Output level | TTL level, >3Vpp fixed amplitude |
Fanout | >20 |
Rise time | <30ns (GF-8025, GF-8046) <60ns (GF-8056) |
VCF Input |
Input voltage | 0-10V |
Input frequency | DC-1kHz variance 1:1, 1:1,000 |
Sweep |
Output amplitude | 10Vpp (no load) or 5Vpp (1kO load) |
Output frequency | Continuous adjustment 0.2Hz - 100Hz |
Sweep speed | 10ms - 5s, continuously variable |
Sweep width | 1:1 - 1:100 continuously variable |
Output waveform | Linear or log sweep ramp wave |
Counter (GF-8046 & GF-8056 only) |
Display | 5 digit 0.36” red LED display with autorange |
Resolution | 0.001Hz |
Time base | 20MHz |
Accuracy | <0.002% |
Max. input voltage | 150Vrms (GF-8046), 250Vrms (GF-8056) |
Input impedance | 1MO <2% |
Input frequency | 0.2Hz - 60MHz |
Attenuator | 0dB, –26dB |
Gate time | 0.25s - 10s, auto-setting |
Sensitivity | <30mVrms (1MHz) |
General |
Power source | AC 115V / 230V +10%, 50/60Hz, 25W |
Dimensions | 10 13/16” (W) x 3 1/2” (H) x 11 13/16” (D) |
Weight | 5 lbs. 8 oz. (GF-8046), 4 lbs. 13 oz. (GF-8025) |
Safety approvals | UL, CUL, GS, TUV, CE, IEC1010, EN61010 |
