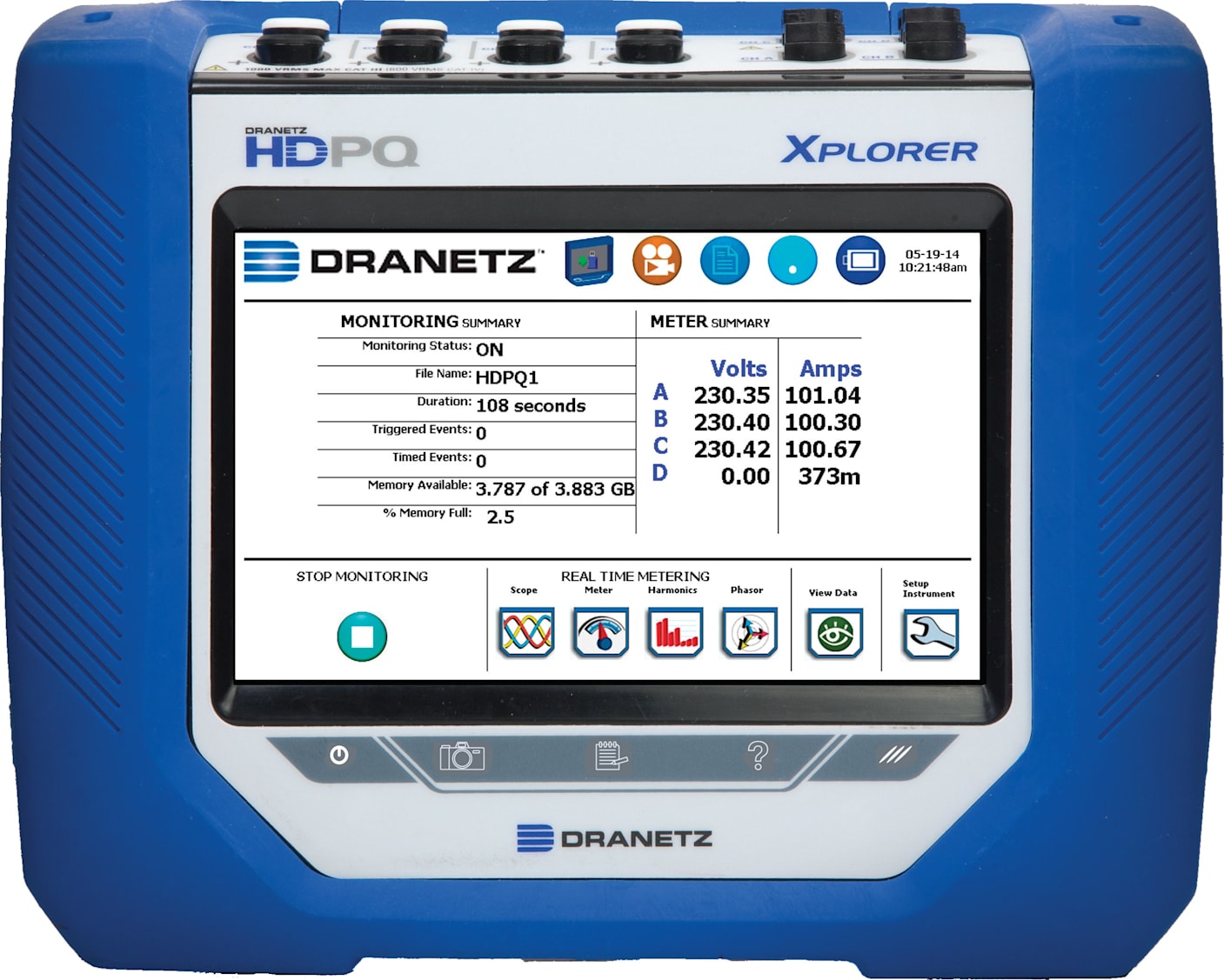

| MEASURED PARAMETERS |
| (4) Differential Voltage |
512 s/c (1MHZ for High Speed Transient),16 bit resolution
0-1000Vrms, AC/DC, ±0.1 % reading, <40V ±0.5%FS |
| IEC 61000-4-30 Class A |
60-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin |
| Transients - High Speed |
10-2000Vpk, +/- 10% of reading, +/- 0.5%FS |
| Transients |
0-1500Vpk, ±0.2 % of Udin |
| (4) Current (rms) |
512 s/c (1MHZ for HS Trans.), 16 bit resolution
Range probe dep., AC/DC, +/- 0.1% reading +/- 0.05% FS, |
| Transients - High Speed |
Range probe dep., 10% of Reading, +/- 0.5%FS |
| Transients |
Range probe dep., ±0.2 % of Udin |
| 16-25Hz, 42.5-69Hz, +/- 0.01Hz |
| CALCULATED PARAMETERS |
| Real Power (W) - P |
meets 0.2S requirements, range probe dep. |
| Apparent Power (VA) - S |
meets 0.2S requirements, range probe dep. |
| Reactive Power (var) - Q |
meets 0.2S requirements, range probe dep. |
| Power Factor (W/VA) -”true” 1 to 0 to -1 |
| Displacement PF 1 to 0 to -1 |
| Demand (in W) |
meets 0.2S requirements, range probe dep. |
| Energy (in Wh) |
meets 0.2S requirements, range probe dep. |
| Vthd |
0-100%, +/- 5% for V>=1% Vnom, |
| V Ind Harm |
DC, 2-127, +/- 5% for V>=1% Vnom |
| Ithd |
0-100%, +/- 5% for I>=1% Vnom, |
| I Ind Harm |
DC, 2-63, +/- 5% for I>=1% Vnom |
| Pst - 10 minutes |
0.2-10, +/- 0.05 @ Pst=1 |
| Plt - 2 hours |
0.2-10, +/- 0.05 @ Pst=1 |
| EASE OF USE FEATURES |
| Automatic Setups |
| Pre-programmed monitoring modes |
| AnswerModules ® - Sag/Dip Directivity, PF Cap, Motor |
| Dashboards - PQ, Demand & Energy |
| Simultaneous PQ, Demand & Energy |
| Mini Report, Screen Snapshots |
| STANDARDS COMPLIANCE |
| IEC 61000-4-30 Class A |
Edition 2 (2008) |
| IEEE 1159 |
2009 |
| IEEE 1459 |
2000 |
| IEC 61000-4-7 Class 1 |
Edition 2 (2008) |
| IEEE 519 |
2014 |
| IEC 61000-4-15 |
Edition 2 (2010) |
| IEEE 1453 |
2011 |
| EN 50160 |
2010 |
| GENERAL SPECIFICATIONS |
| Size |
(10”w x 8”h x 2.75”d) (25.4cm x 20.3cm x 7.00 cm) |
| Weight |
1.9 kg, 4.3lbs |
| Operating temperature |
0 to 50 deg C |
| Storage temperature |
-20 to 60 deg C |
| Humidity |
10-90% non condensing |
| Clock accuracy and resolution |
| Internal |
+/- 1 sec/day at 25deg C |
| NTP |
+/-10 msec |
| GPS |
+/-1 msec |
| AC Adapter |
90-264Vac 50/60Hz |
| Battery capacity and charge time |
2.5 hours run time on full charge |
| Memory size |
4GB |
| Display |
7” WVGA color graphic, Icon based touch LCD, LED Backlit |
| Languages |
English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean |
| COMMUNICATIONS |
| Ethernet, 802.11 b/g/n Wireless |
| USB On the Go |
| Bluetooth via USB adapter |
| VNC remote control |
| Android ® & Apple ® App |
