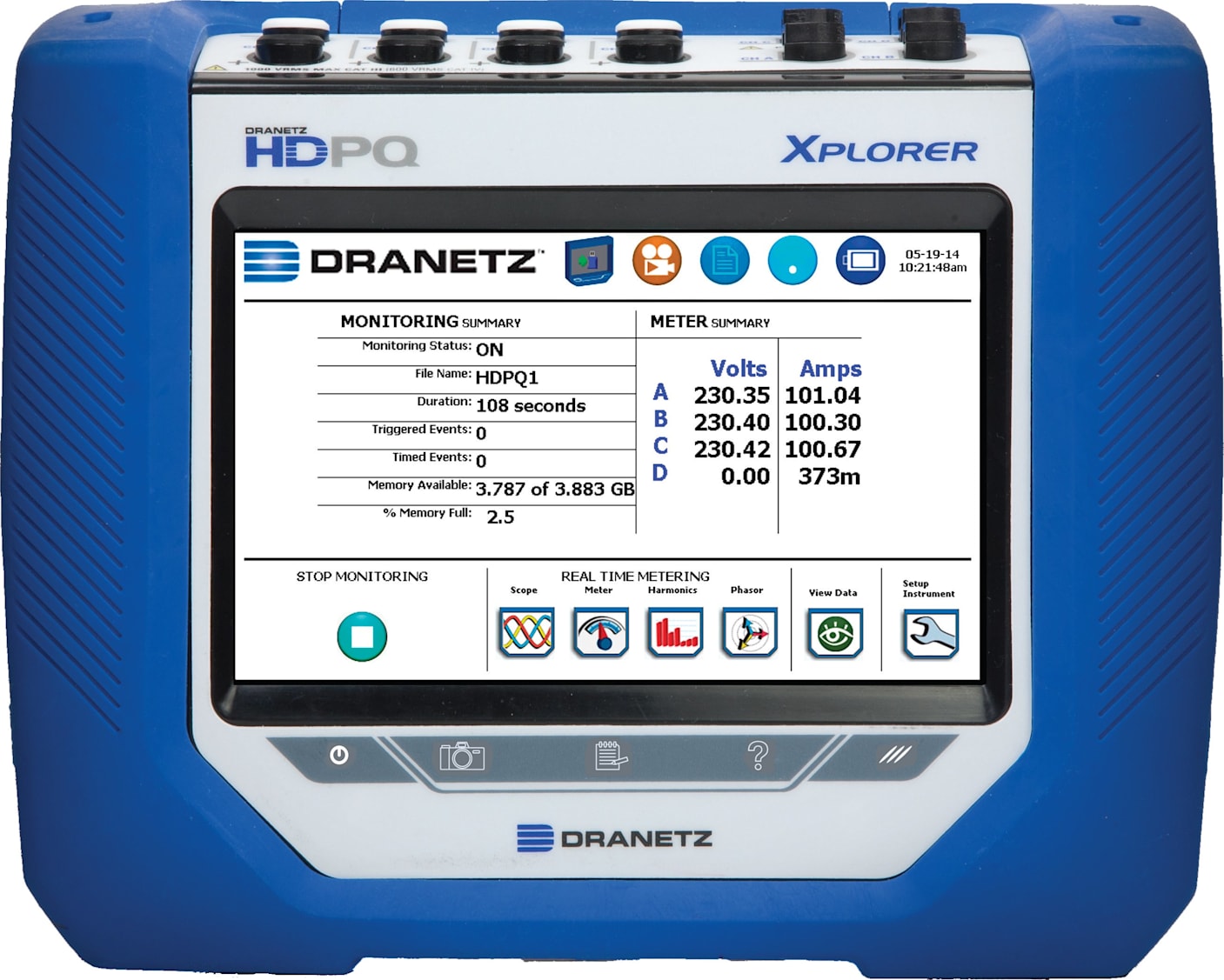

Dranetz HDPQ-XA500PKG HDPQ Xplorer 3-Phase Power Quality Analyzer - 500A Package

• HDPQ Xplorer 500A Package
• Portable power quality, demand & energy analysis
• High speed transients to 1us for v & i
• Ethernet, 802.11 wireless, bluetooth, usb otg
• Intelligent answer modules® - sag, pf cap, motor
• Inrush & fault recording with 10k cycle storage
• 7-inch wide screen color, touch LCD

The Dranetz HDPQ® Xplorer represents the top of the line within the Dranetz HDPQ family of products and offers you simply the best PQ monitoring available from Dranetz, or any other manufacturer! The Dranetz HDPQ Xplorer includes all of the features of the Dranetz HDPQ Visa and Guide instruments, but adds high speed transient capture capabilities, so you’ll never miss an event!

The Dranetz HDPQ family merges the state-of-the-art power monitoring capabilities you expect from Dranetz, with ‘best in class’ communication capabilities to provide a revolutionary monitoring experience. Each instrument has a built-in 7-inch WVGA wide screen LCD user interface for monitoring setup and data review. By putting operator safety first, the Dranetz HDPQ enables users to review data and change settings remotely from virtually any Smartphone or Tablet mobile device, along with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to ‘safe’ the environment, and use either the VNC interface or our Dranetz HDPQ Apple or Android Apps via Ethernet, Wireless, or Bluetooth for remote control from anywhere with connectivity to the instrument. Enhance your productivity by using our industry leading Dran-View 7 PC software for data analysis, data annotation, advanced computations and reporting. Mini-reports and screen snapshots are also available directly on the instrument to easily share information across your organization via .xml or .bmp files.

Of course, since it’s a “Dranetz,” the HDPQ Xplorer offers you the best in class Power Quality monitoring capabilities available. It measures to all current industry standards, including IEC61000-4-30 Class A, IEC61000-4-7, IEEE1159, IEEE519, IEEE1459, and more. With its high speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, by using a range of standard and customizable operating modes. The unique measurement capabilities include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.

Applications

• Power Quality surveys and diagnostics
• Power surveys
• Motor testing & diagnosis
• Fault recording
• Transient recording
• Inrush testing for transformers, motors, etc.
• Energy management & load surveys
• Data logging
• Harmonic analysis
• Advanced load distortion and imbalance
• Alternative energy production – Solar, Wind – Panel strings, batteries, inverters, grid interconnect, forward & reverse energy
• Compliance testing
• Flicker testing
• Capacitor testing

With is advanced PQ, Demand, and Energy capabalities, the Dranetz HDPQ Xplorer was designed from the ground up to be your all-in-one power monitoring tool. Whether your application requires power quality monitoring demand/energy monitoring, or both, HDPQ Xplorer's powerful feature set provides you the tools needed to get the job done. HDPQ Xplorer is perfect for applications such as PQ surveys, voltage and current transient, harmonic analisis, advanced distortion analysis, demand/energy/load studies, and many more.

Advance PQ & Energy Capabilities

Dranetz products have a long-standing tradition of having state of the art PQ monitoring capabilities and HDPQ Xplorer is no exception. HDPQ Xplorer meets and exceeds current version of the most stringent industry monitoring standards, including:

• Power Quality - IEC 61000-4-30 Class A, iEEE 1159
• Harmonics - IEC 61000-4-7, IEEE 519
• Voltage Flicker - IEC 61000-4-15, IEEE 1453- Including Pinst
• Advanced Energy - IEEE 1459

Capture High Speed Transients!

HDPQ Xplorer goes well beyond PQ standards by including transient capture capabilities for both voltage and current, such as: high speed transients to 1 microsend, peak sample transients, and advanced waveshape change transients that can changes from cycle to cycle.

AnswerModules - Smart & Good Looking!

Only available from Dranetz, AnswerModules are algorithms that automatically identify power quality problems and their source. These diagnostic and reporting tools are based on our decades of analytical experience, benchmarking and troubleshooting work. The HDPQ Xplorer has three built-in AnswerModules:

• Sag/Dip Directivity: Automatically identifies the source of a Sag/Dip as being upstream or downstream from the monitoring source.
• Capacitor Switching: Automatically identifies transients as being Power Factor correction transients.
• Motor Analysis: Enables the PQ parameters that are important to motor surveys, and provides a custom dashboard for results.

The Dranetz HDPQ Xplorer merges the state-of-the-art power monitoring you expect from Dranetz, with `best in class` communication capabilities to provide our users with a revolutionary monitoring experience.

Easy to Use Intuitive User Interface

With their innovative packaging and 7" wide screen color touch display, the Dranetz HDPQ family of instruments are the most powerful and easiest to use power monitoring instruments available. Like your tablet computer, simply use your finger or stylus to easily navigate the intuitive, icon-based user interface. Setting up the HDPQ Xplorer is made easy with automatic setups that detect the circuit type, voltage, etc. and configure the instrument in seconds with typical industry settings. For customized setups, use the manual Wizard mode that guides you step-by-step through each setup. During monitoring, real time measurements can be viewed in many ways, including a color-coded reporting Dashboard, and meter/scope/phasor/harmonics display. Recorded data can be viewed over time using the timeline and event list displays, and also by using compliance reports, such as EN 50160.

Reporting & Analysis

The Dranetz HDPQ Mini Report tool allows you to easily take a snapshot of any screen for future use. By simply pressing the camera button, screen snapshots are saved, which compiles information in an HTML report. Once completed, mini reports can be uploaded to a computer for editing, annotating, emailing, etc.

Dran-View 7 is our industry leading Windows-based software program that enables power professionals to simply and quickly visualize and analyze power monitoring data. Dran-View enchances the Dranetz HDPQ Xplorer with its advanced analytical capabilities. It is successfully used by thousands of customer around the world, and has become the industry leading power management software tool. Dran-View is easy to use, yet adds tremendous value and power to our Dranetz HDPQ family of instruments. Of course Dran-View can trend and list data recorded by the instrument, but it also includes a built-in report writer, allows you to embed pictures, provides mathematical analysis tools, and even includes a rescue kit to help correct connection mistakes.

Demand and Energy Surveys

Managing energy and reducing related expenses is always of a paramount importance, and in many cases is a corporate mandate. In addition to industry best power quality monitoring capabilities, all of the Dranetz HDPQ family of products also have extensive demand and energy monitoring capabilities for both long and short duration surveys. Unlike other lesser capable instruments, there's more than enough horsepower to perform complete PQ and energy surveys simultaneously - it's your choice to survey for PQ, Energy, or both. Seeing results is easy when using the energy and demand Dashboard reports that display real time and accumulated readings in a color-coded reporting format. There's also billing report that includes your energy rates, including time of use. You can also upload your data to our Dran-View 7 software for viewing, reporting, and printing via PC.

Safe Remote Accessibility via Apps and VNC

DON'T RISK YOUR SAFETY! The Dranetz HDPQ Xplorer comes with a standard Ethernet port, built-in Wireless, and USB Bluetooth communications that allow you to easily comply with today's arc flash and other safety standards. Simply install your HDPQ Xplorer, close the cabinet door, and use your Tablet, Smartphone, PC, or MAC computer to remotely control monitoring and review data. Fully control your instrument remotely, and see exactly what's on the local 7" display by using free VNC program or App for PC, MAC, Apple, and Android devices. Or you can also use the Dranetz HDPQ App for Apple and Android devices to remotely view a real time Dashboard, scope mode, or remotely configure the instrument using automatic setups. For local access, there's also built-in USB port to copy to a USB drive or directly to your computer using a Plug-N-Play connection.
