| Measured Parameters |
| (4) Differential Voltage |
512s/c, 16 bit resolution
- 0-1000Vrms, AC/DC, +/- 0.1% reading +/- 0.05% FS
- IEC 61000-4-30 Class A Ed 31: 60-1000Vrms, ±0.1 % of Udin, range of 10% – 150% of Udin
- Transients – rms: 0-1414Vpk, ±0.2 % of Udin
- Transients – High Speed: 10-2000Vpk, +/- 10% of reading, +/- 0.5% FS
|
| Frequency |
10 sec window
- 2.5-69Hz, +/- 0.01Hz, 380-420Hz +/- 0.1Hz
|
| (4) Current |
512 samples/cycle, 16 bit resolution
- Range (rms) probe dependent, AC/DC, +/- 0.1% reading +/- 0.05% FS
- Transients – Range probe dependent
- Transients – High Speed: Range probe dependent., 10% of Reading, +/- 0.5%FS
|
| General Specifications |

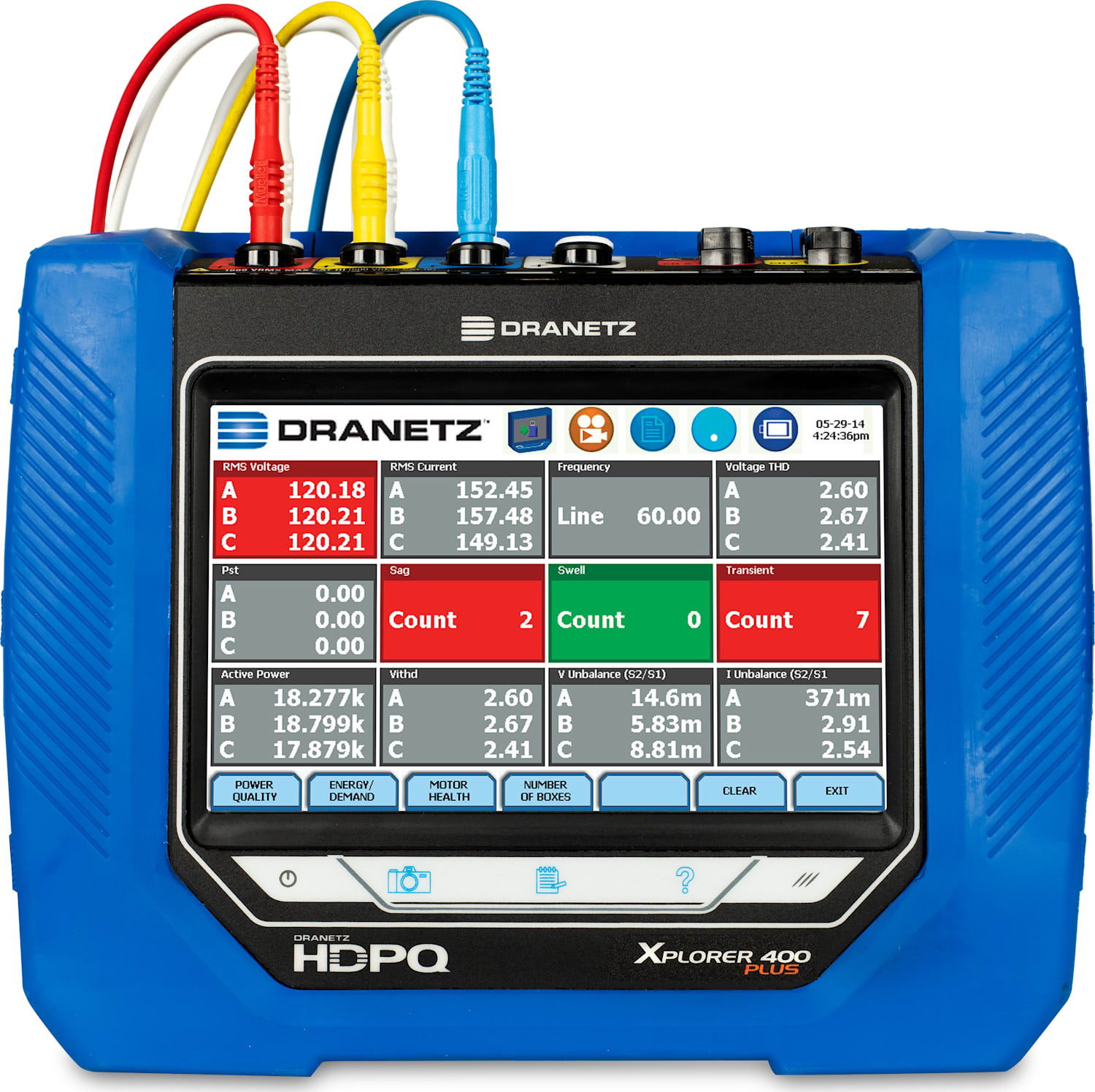

| Dranetz HDPQ Xplorer 400 Plus |
| Size |
(10"w x 8"h x 2.75"d), (25.4cm x 20.3cm x 7.0cm) |
| Weight |
4.2lbs, 2kg |
| Operating temperature |
0 to 50 deg C ( 32 to 122 deg F) |
| Storage temperature |
-20 to 55 deg C (-4 to 131 deg F) |
| Humidity |
10-90% non condensing |
| Clock accuracy and resolution |
| Internal |
+/- 1 sec/day at 25 deg C |
| NTP |
+/-10 msec |
| GPS |
+/-1 msec |
| AC Adapter |
100-240Vac 50/60Hz |
| Battery capacity and charge time |
Dranetz HDPQ Xplorer 400 Plus: 2.5 hours run time on full charge, 3 hours charge time |
| Memory size |
4GB |
| Display |
7" WVGA color graphic, Icon based touch LCD, LED Backlit |
| Languages |
English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean |
| Communications |
Ethernet, 802.11 b/g/n Wireless (available without Wi-Fi as a special order)
USB On the Go
Bluetooth (optional) via USB adapter
VNC remote control
Android & Apple App |
| Ease of Use Features |
Automatic Setups – Start monitoring in seconds!
Pre-programmed monitoring modes – Pre-configured setups for various applications
AnswerModules®– Sag/Dip directivity, PF Cap, Motor
Dashboards – Power Quality, Demand & Energy – Immediately know when events have been recorded
Simultaneous Power Quality, Demand & Energy monitoring
Mini-Report – Take screen snapshots that can be uploaded to your computer and included in reports, attached to emails, etc.
Power the instrument from the circuit being measured, or another source |
| Standards Compliance (50/60Hz systems only) |
| Power Quality |
IEC 61000-4-30 Class A Edition 31, IEEE 1159: 2009 |
| Power |
IEEE 1459: 2000 |
| Harmonics |
IEC 61000-4-7 Class 1: Edition 2 (2008), IEEE 519: 2014 |
| Voltage Flicker |
IEC 61000-4-15: Edition 2 (2010), IEEE 1453: 2011 |
| Compliance/Testing |
EN 50160: 2010 |
| Calculated Parameters |
| Power/Energy – 1 Second sampling |
Real Power (W) – P: meets 0.2S requirements, range probe dep.
Apparent Power (VA) – S: meets 0.2S requirements, range probe dep.
Reactive Power (var) – Q: meets 0.2S requirements, range probe dep.
Power Factor (W/VA) -”true” 1 to 0 to 1
Displacement PF -1 to 0 to +1
Demand (in W): meets 0.2S requirements, range probe dep.
Energy (in Wh): meets 0.2S requirements, range probe dep. |
| Distortion – 200ms, 3 sec, 10 min windows |
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127 @50/60Hz, 2-15 @400Hz, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for V>=1% Vnom,
I Ind Harm: DC, 2-63@50/60Hz, 2-15 @400Hz, +/- 5% for I>=1% Inom |
| Misc. |
Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1 (50/60Hz only)
Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1 (50/60Hz only) |
