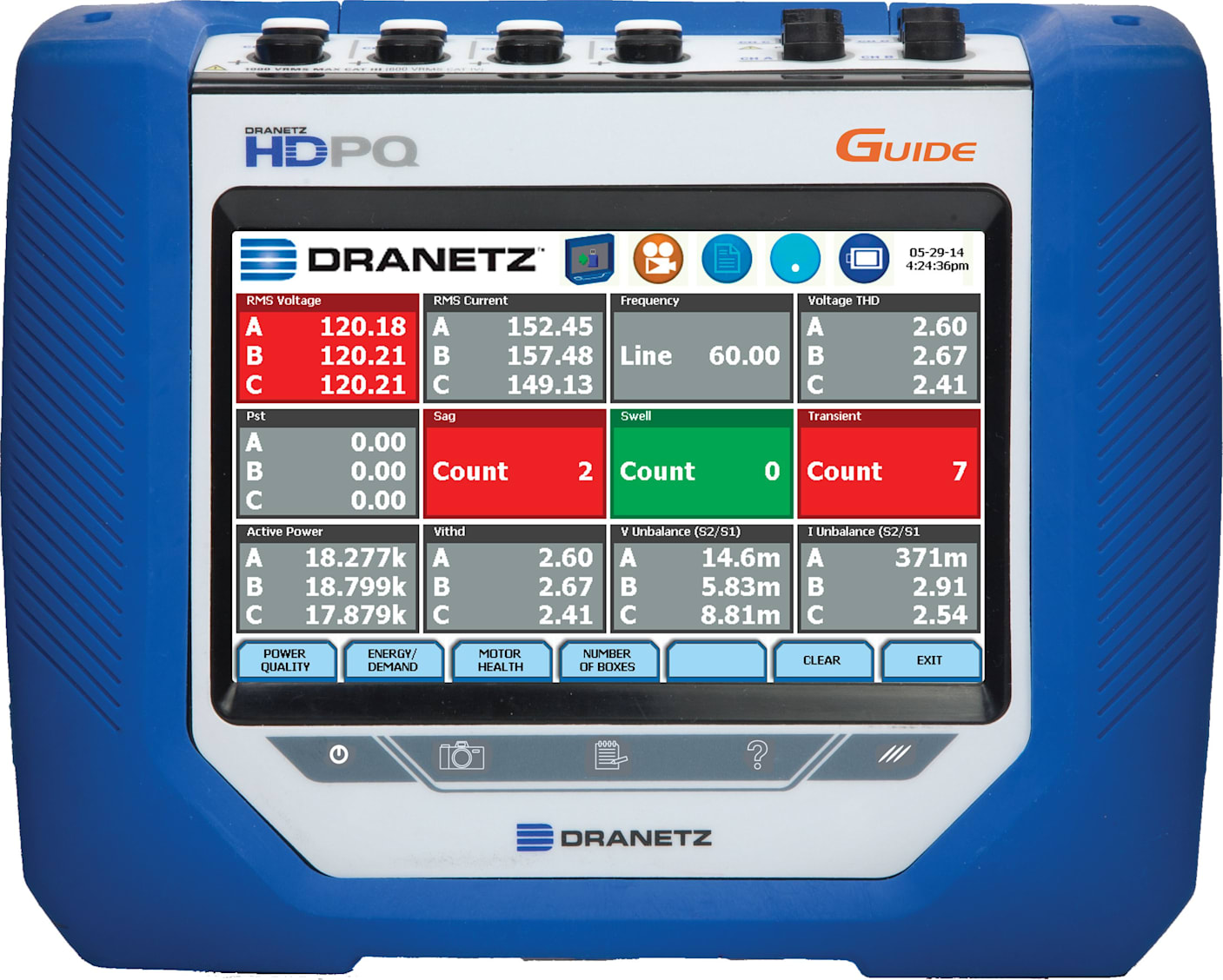

The Dranetz HDPQ Guide offers the best combination of value & technology from Dranetz, or any other PQ analyzer available! It includes all of the features of the Dranetz HDPQ Visa, but adds Wi-Fi communications, AnswerModules® and a 10,000 cycle recording buffer for fault and inrush recording!
The Dranetz HDPQ family merges the state-of-the-art power monitoring capabilities you expect from Dranetz, with ‘best in class’ communication capabilities to provide a revolutionary monitoring experience. Each instrument has a built-in 7-inch WVGA wide screen LCD user interface for monitoring setup and data review. By putting operator safety first, the Dranetz HDPQ enables users to review data and change settings remotely from virtually any Smartphone or Tablet mobile device, along with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to ‘safe’ the environment and use either the VNC interface or our Dranetz HDPQ Apple or Android Apps via Ethernet, Wireless, or Bluetooth for remote control from anywhere with connectivity to the instrument. Enhance your productivity by using our industry leading Dran-View 7 PC software for data analysis, data annotation, advanced computations and reporting. Mini-reports and screen snapshots are also available directly on the instrument to easily share information across your organization via .xml or .bmp files.
Of course, since it’s a “Dranetz”, the Dranetz HDPQ Guide provides you the best in class Power Quality monitoring capabilities available. It measures to all current industry standards, including IEC61000-4-30 Class A, IEC61000-4-7, IEEE1159, IEEE519, IEEE1459 and more. Equipped with 8 independent channels, automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data in seconds. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy and load balancing. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.
APPLICATIONS:
- Power Quality surveys and diagnostics
- Power surveys
- Motor testing & diagnosis
- Fault recording
- Transient recording
- Inrush testing for transformers, motors, etc.
- Energy management & load surveys
- Data logging
- Harmonic analysis
- Advanced load distortion and imbalance
- Alternative energy production - Solar, Wind - Panel strings, batteries, inverters, grid
- interconnect, forward & reverse energy
- Compliance testing
- Flicker testing
- Capacitor testing
Applications
The Dranetz HDPQ Guide was designed from the ground up to be your all-in-one power monitoring tool. Whether your application requires power quality monitoring, demand/energy monitoring, or both, HDPQ Guide's powerful feature set provides you the tools needed to get the job done. HDPQ Guide is perfect for applications such as PQ surveys, fault recording inrush, motor testing, harmonic analysis, advanced distortion analysis, demand/energy/load studies, and much more.
Advance PQ & Energy Capabilities
Dranetz products have a long-standing tradition of having state of the art PQ monitoring capabilities and HDPQ Xplorer is no exception. HDPQ Guide meets and exceeds current version of the most stringent industry monitoring standards, including:
- Power Quality - IEC 61000-4-30 Class A, iEEE 1159
- Harmonics - IEC 61000-4-7, IEEE 519
- Voltage Flicker - IEC 61000-4-15, IEEE 1453- Including Pinst
- Advanced Energy - IEEE 1459
