Measuring ranges |
ACP3000_4: 30A / 300A / 3000A AC |
ACP6000_4: 60A / 600A / 6000A AC |
Output sensitivity (AC coupled) |
ACP3000_4: 100mV / 10mV / 1mV per A |
ACP6000_4: 50mV / 5mV / 0.5mV per A |
Accuracy (45-65Hz) |
± 1% of reading ± 0.1A: 30/300A or 60/600A ranges |
± 1% of reading ± 1A: 3000A or 6000A range |
Minimum load |
100kΩ for specified accuracy |
Frequency range |
10Hz to 10kHz (-1dB) |
Phase (45-65Hz) |
>± 1° |
Position sensitivity |
± 2% of reading |
External field |
± 0.2% of range with cable >200mm (8") from the probe |
Noise |
8mV rms in 30A / 60A ranges
2mV rms in 300A / 3000A and 600A / 6000A ranges |
Temperature coeff. |
± 0.1% /°C |
Power supply |
Two AA MN1500 LR6 alkaline batteries or an external power supply (+3V/100mA) |
Battery life |
2000 hours typical |
External Power |
Via 2.1mm (0.08") mini power connector |
Low battery |
Indicated by an orange LED |
Overload |
Indicated by a red LED |
Enclosure |
Material |
ARNITE T06-200SNF, UL94 V0 |
Degree of Protection |
IP40 (not certified by UL) |
Dimensions |
110 (l) x 65 (w) x 23 (d) mm |
Output connection |
0.5m coax cable terminated with a safety BNC |

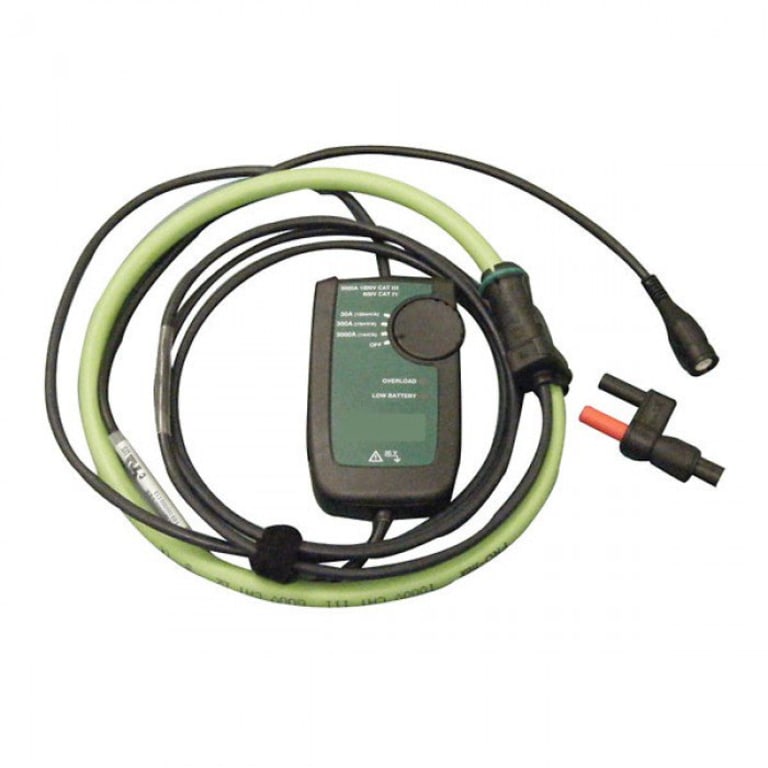

Probe |
Probe lengths |
610mm (24 inches), double insulated
915mm (36 inches), double insulated
1220mm (48 inches), double insulated |
Probe diameter |
9.9mm (0.39 inches) |
Output cable |
2m (78.7inches), probe to integrator |
Material |
Alcryn 2070 NC, LATI LATENE 7H2W V0 |
Degree of Protection |
IP65 (not certified by UL) |
General Characteristics |
Operating temp. |
-20°C to +65°C (-4°F to +149°F) |
Storage temp. |
-40°C to +75°C (-40°F to +167°F) |
Operating humidity |
15% to 85% (non-condensing) |
Safety standards |
EN 61010-1:2001
EN 61010-031:2002
EN 61010-2-032:2002 |
EMC |
EN 61326-2-2:2006 |
1000 VRMS, Category III, 600 VRMS, Category IV, Pollution Degree 2 (Probe and Integrator) |
30V maximum between output and earth |
ROHS and WEEE compliant |
Rated for continuous use |
