• Voltage waveform 500µs rise time, 3.4ms duration and up to 4.46kV on a 1.7kΩ load
• Dry Capacitor delivers >2.5M pulses at 20 second intervals
• Direct Joules readout on front panel after Energy Reduction Test
• Increased accuracy in accordance with IEC 60601-2-25 and -2-27:2011 requirements
• Microcontroller technologies, front panel voltage meter and polarity indicator

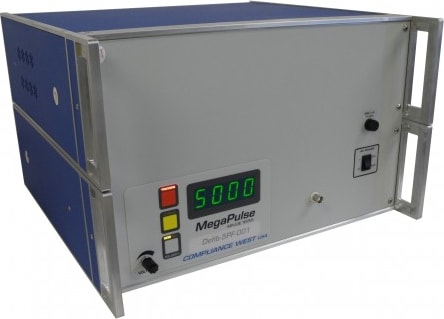

The MegaPulse tester provides impulses up to 4.46kV peak 1.7kΩ load. The tester has positive and negative waveform delivery via a front panel button. Tester impedance is 39ohms. The MegaPulse tester has voltage waveform 500µs rise time, 3.4ms duration and up to 4.46kV on a 1.7kΩ load.

• 4.46kV, by simulation 1.7kΩ load, tolerance not defined.

• 500µ ±30µs (470 µs – 530 µs)

• 3ms ±0.3ms (3.1 ms – 3.7 ms)

• Not defined

• Manually, by turning a knob in front panel

• Positive and negative. Alternating control available with optional computer control

• 4 digit LED display

• ±1%

• <5 seconds

• 10s for 18 cycles; 60s rest.

• 120V AC, 50/60Hz *optional different line voltage
