• Generates the waveform required for the Isolation Test, AAMI DF-1, Appendix B, and described in AAMI DF-1.
• Designed with operator safety in mind: Set up the EUT to the right and behind the tester, and a right-handed operator will find himself standing to the left of the tester, allowing maximum separation
• Actual graphs showing the output of your tester are included with each MegaPulse DF-1PF, allowing easy sanity checks and proof to visiting agency engineers of test setups

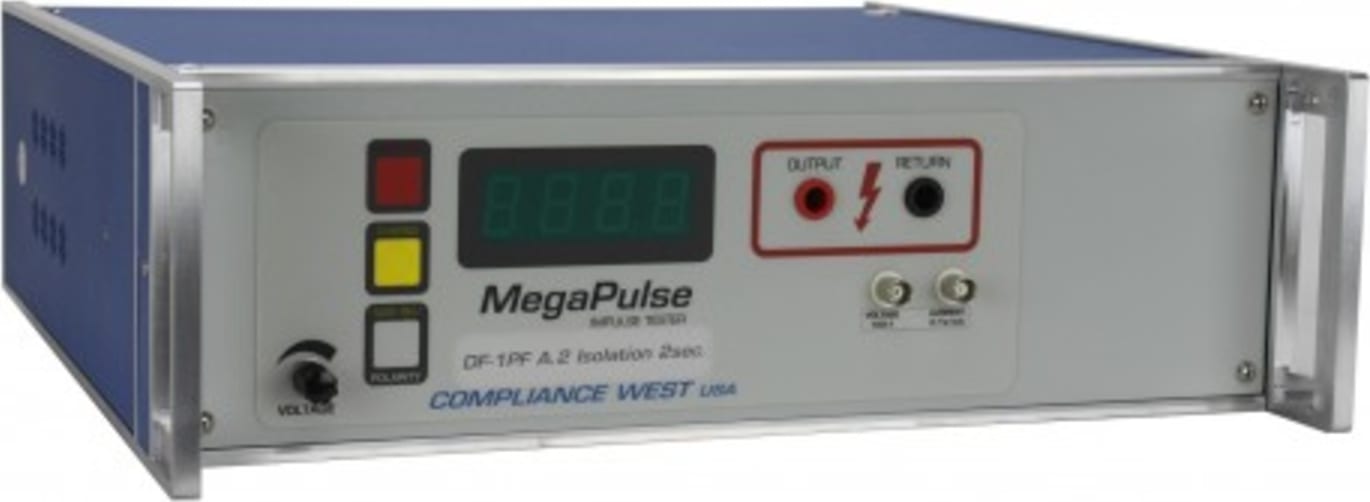

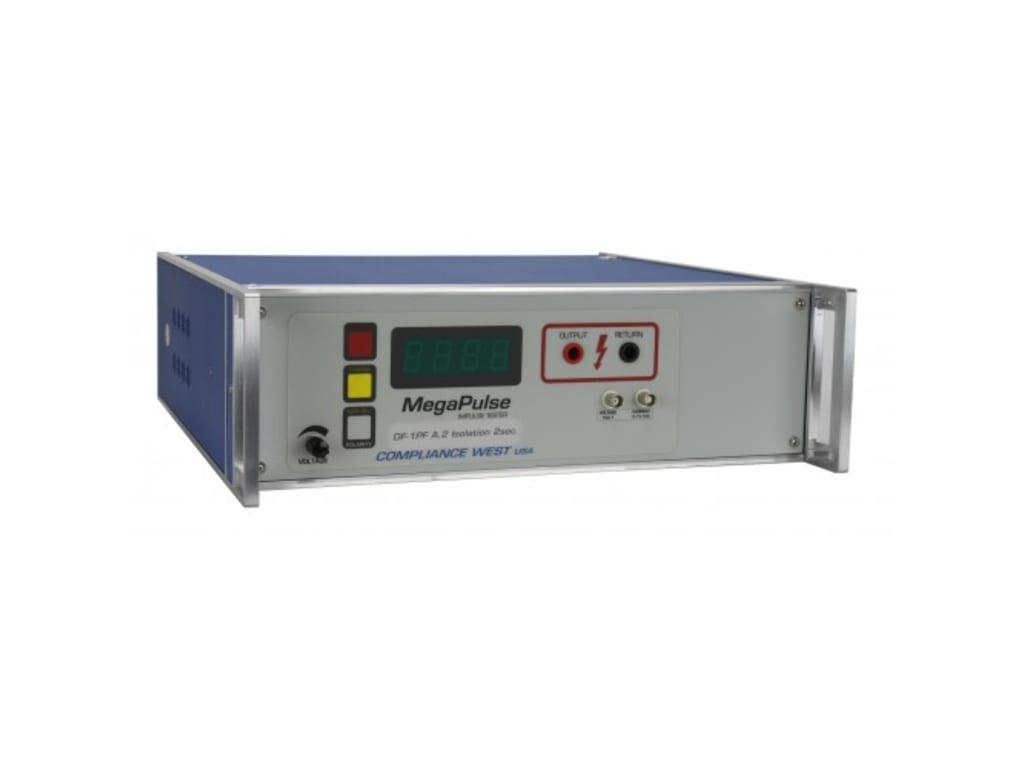

The DF-1PF A.2 Isolation 2 sec. surge Tester is designed to generate the waveform described in AAMI DF-1 for the Lead Connector electrical isolation test in AAMI DF-1, Annex A.

The test can be set to automatically conduct the first 490 cycles (500 ± 50 as shown in Standard) of the test, and then stop testing to allow laboratory personnel monitor the last 10 cycles in accordance with the Standard. Voltage and current BNC outputs make waveform analysis convenient.

The MegaPulse DF-1PF is capable of a pulse output of up to 1500 volts every 2 seconds.

TestMinder USB control is included to allow automated repetitive testing.

The test signal includes the waveform cutoff at 750V/18msec.

A front-panel switch reverses the output polarity. Additionally provided with BNC oscilloscope output for voltage (100:1) and current (1V/A) for output monitoring.

The waveform output is 1.05uS rise time, with a 18mS duration, with an output impedance of 500 ohms.
