• Up to 2000V test voltage.
• Microcontroller technologies, front panel voltage meter indicates test peak open circuit voltage and polarity.
• Output voltage and polarity are controlled manually from the front panel.
• Ergonomically designed for safety, speed, and efficiency.
• Cables, manual and calibration certificate included.

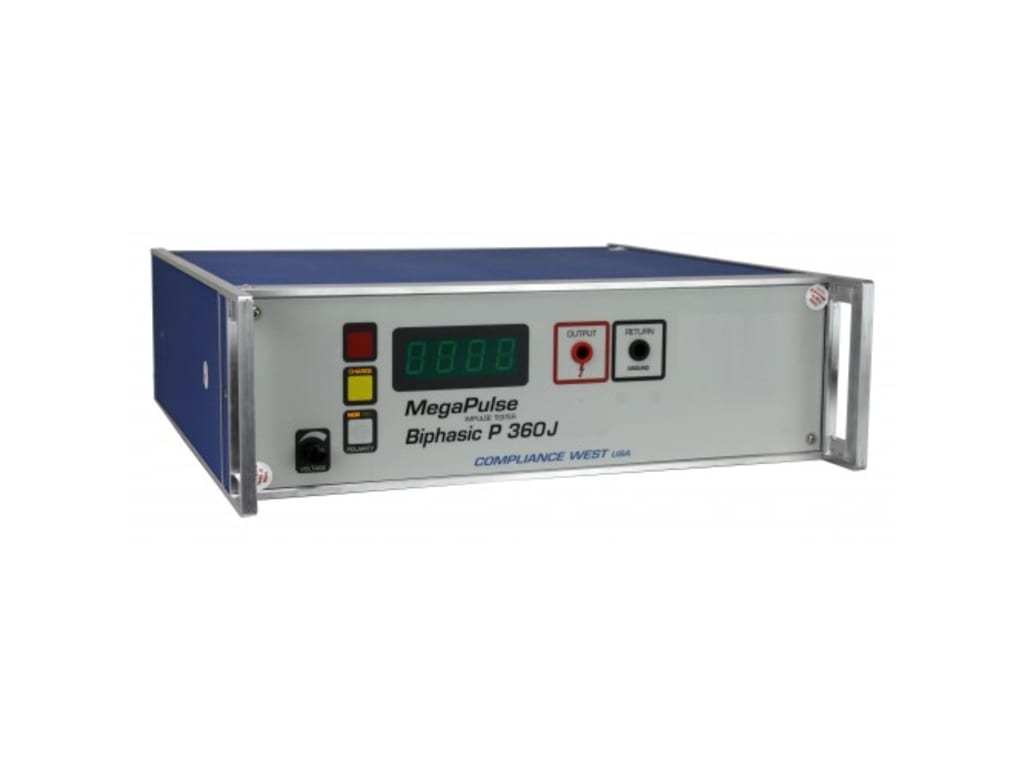

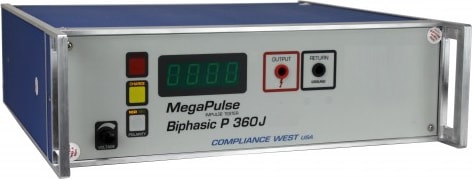

The MegaPulse 360J can be used to test products in research and production environments. The biphasic output pulse mimics the newest defibrillator output standard but allows more repeatability and faster pulsing than a defibrillator would.

The output is stable and provides the required 360J power in a production test or continuous test environment. The available auto trigger control provides very repeatable outputs which makes testing results more meaningful.

The MegaPulse 360J is used to prove any part which would be subjected to defibrillator pulses.

The biphasic output reversal timing can be configured at the factory for any timing desired within the pulse. Output power is also configurable upon request.

Output voltage is approximately 2kV, with slight variances to meet the 360J power requirement. Output may be as high as 2040V in order to provide the power required.
