High resolution voltage charge, 0.1V steps from 5V to 200V and 1V step from 200V to 2000V

Output voltage selected digitally on the front panel

Double output and double return jacks to minimize losses

USB TestMinder Control compatible

Long life capacitor rated for 2.5 million pulses

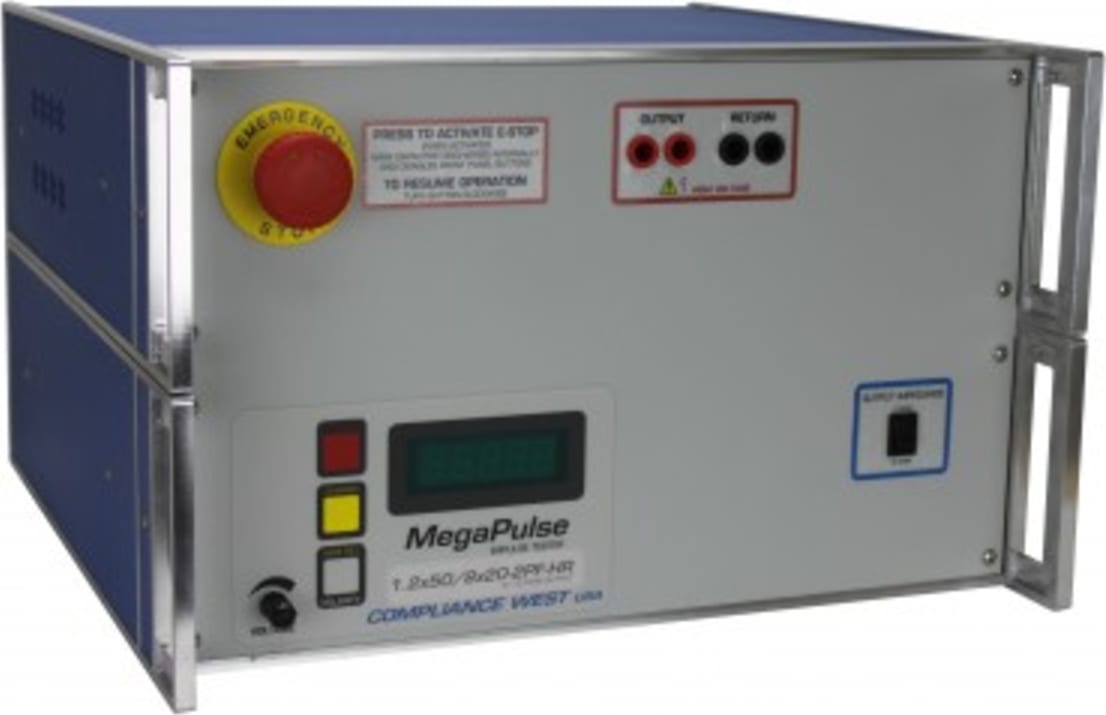

The MegaPulse 1.2x50/8x20-2PF-HR 2/12 ohm is our 5V-2000V, 2.5A-1000A combination tester. It produces a combination test waveform in compliance with EN 61000-4-5 at extremely low voltage, with high accuracy and repeatability.

The Tester features a High Resolution charge voltage in steps of 0.1V from 5V-200V and steps of 1V from 200V-2000V; 2 Ω and 12 Ω outputs, Output Polarity Switch, with front panel E-Stop switch and Safety Interlock Discharge; with waveform outputs in accordance with IEC 61000-4-5.

The MegaPulse 1.2x50/8x20-2PF-HR 2/12 ohm charges in less than 5 seconds and can pulse every 20 seconds continuously.

Available MUX and DUT Test enclosure options allow integration into an existing Test Station under PLC, TestMinder or LabView control.

Users may opt for computer control via our option TestMinder MegaPulse PF, PLC guided operation with our Relay Isolated Control board, or directly via third party software via USB/RS232.

Sold with a one year warranty and calibrated to NIST Standards.
