Autonics VG Demo Kit

Name: Autonics VG Demo Kit
Brand: Autonics
SKU: AutonicsVG
Price: 3189.95 USD
Availability: InStock

0 reviews | Model: Autonics VG

Compare

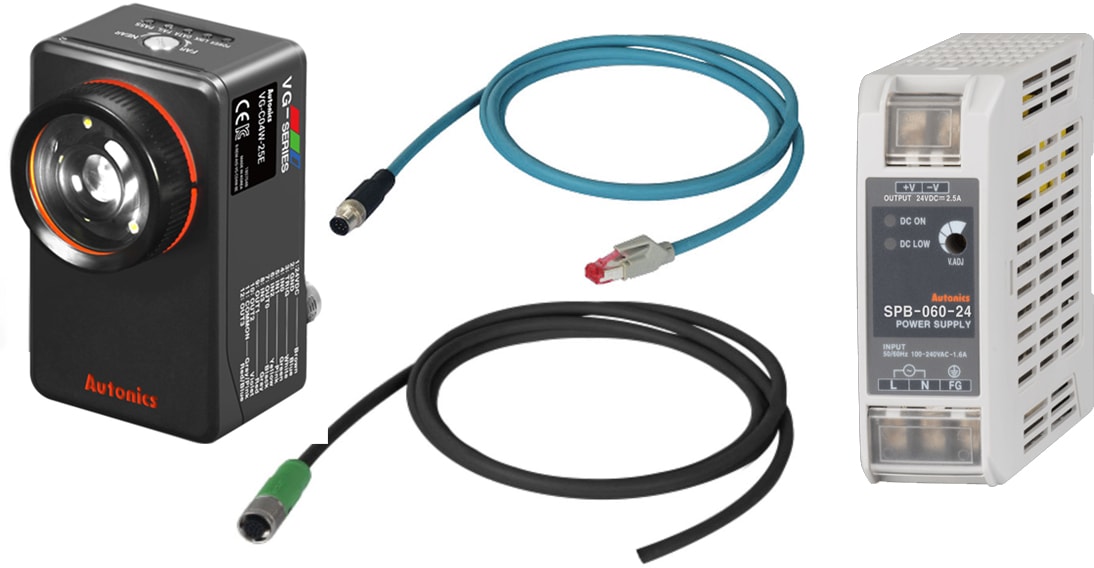

VG Demo Kit ( VG-C04W-25E, CID-2-VG, CIR-2-VG, SPB-060-24, Mounting Arm )

VG-C04W-25E Features

Effective focal length: 25mm
Min. sensing distance: 200mm
Power supply: 24VDC ±10%
Current consumption: 1A
Inspection Inspection item: Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting
Inspection Work group: 32
Protection structure: IP67(IEC standard)

CID-2-VG Features

Power I/O Cable
Standard
2m length
M12, Female Straight and 12 Wires
DC Power, PVC

CIR-2-VG Features

Ethernet cable
Standard
2m length
M12, Female Straight and 8 Wires
PVC

SPB-060-24 Features

Output power: 60W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~ 50/60Hz, 120-370VDC
Output Voltage: 24VDC
Output Current: 2.5A
Mounting type: DIN Rail

View Product Details

List Price: $3,189.95

In Stock:

View Payment Options

Recommended for you

Autonics VG Demo Kit

Effective focal length: 25mm
Min. sensing distance: 200mm
M12, Female Straight and 8, 12 Wires
DC Power, PVC
Output power: 60W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~ 50/60Hz, 120-370VDC

Autonics VG-C04W-25E - Vision Sensor

VG Series

Effective focal length: 25mm
Min. sensing distance: 200mm
Power supply: 24VDC ±10%
Current consumption: 1A

Monochrome Type Vision Sensors

The VG series vision sensors utilize images captured by the integrated industrial camera lenses to determine the target object's presence, size, shape, orientation, patterns and more. The integrated design featuring LED lighting, camera and lens allows users to set up and manage the units more easily compared to vision systems. The camera also utilizes global shutter method to capture accurate images, and the sensors feature 10 essential inspection functions for diverse applications. The captured images can also be saved directly to FTP servers, so that users can manage and analyze the inspection data separately.

Autonics SPB-060-24 - DIN Rail Switching Mode Power Supply, 60W, 24VDC

SPB Series

Output power: 60W
Input Voltage: 100-240VAC~ 50/60Hz
Permissible voltage: 85-264VAC~ 50/60Hz, 120-370VDC
Output Voltage: 24VDC
Output Current: 2.5A
Mounting type: DIN Rail

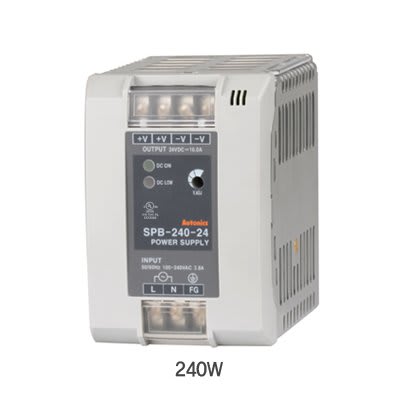

The SPB series switching mode power supplies offer high power conversion efficiency and stable power supply with low noise and ripple and minimal heat generation. The switching mode power supplies can be easily clipped onto DIN rails or mounted using screws. The slim and compact design also allows space-saving installation. The series also features various safety and user-friendly features including terminal protection covers (SPB-060/120/180/240) and rising clamp type terminals (SPB-015/030). Various output power models are available for application in diverse environments.

DIN rail mount and screw mount methods
Efficient power conversion
- High conversion efficiency up to 92% with LLC circuit (SPB-240)
- Stable power supply with minimal noise and ripple
Space efficient design
- Slim and compact size for maximum space efficiency
- Uniform depth size (except SPB-015/030) for neat and tidy installation
Safety and user-friendly features
- Terminal protection cover (SPB-060/120/180/240)
- Easy wiring with rising clamp terminal (SPB-015/030)
- Inrush current prevention, output overcurrent prevention, output overvoltage prevention, output short-circuit protection, circuit overheating protection
- Low output voltage indicator (red LED), output indicator (green LED)
Output power : 15W, 30W, 60W, 120W, 240W
180W models (SPB-180) have been added to the lineup.

VG-C04W-25E Specification
Min. sensing distance	200mm
Power supply	24VDC ±10%
Current consumption	1A
Inspection Inspection item	Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting
Inspection Work group	32
Inspection Simultaneous inspection	64
Inspection Camera frame per second	Max. 60fps
Image snap Image filter	Preprocessing, external filter(color filter, polarizing filter)
Image snap Image element	1/3 inch color CMOS
Image snap Resolution	752×480 pixel
Image snap Camera frame per second	Max. 60fps
Image snap Shutter	Global shutter
Image snap Exposure time	20 to 10,000㎲
Light ON/OFF method	Pulse
Light Color	White
Trigger mode	External trigger, internal trigger, free-run trigger
Input Signal	Rated input 24VDC (±10%)
Input Type	External trigger input(TRIG), encoder input(IN2, IN3), work group change(IN0 to IN3)
Output Signal	NPN or PNP open collector output Max. 24VDC 50mA, residual voltage: max. 1.2VDC
Output Type	Control output(OUT0 to OUT3): inspection completion, inspection result, external light trigger, alarm, camera busy
Output FTP transmission	Possible
Protection circuit	Output short over current protection circuit
Indicator	Power indicator(POWER), Ethernet connection indicator(LINK), pass indicator(PASS): Green LED Data transmission indicator(DATA): Orange LED Failure indicator(FAIL): Red LED
Insulation resistance	Over 20MΩ (at 500VDC megger)
Dielectric strength	500VAC~ 50/60Hz for 1 min.
Vibration	1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment Ambient temperature	0 to 45℃, storage: -20 to 70℃
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP67(IEC standard)
Material	Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane
Accessories	Assembly tool, bracket A, mounting screw: 2
Sold separately	Light, color filter, polarizing filter, power I/O cable, Ethernet cable, bracket B, protection cover
Weight	Approx. 416g(approx. 274g)

SPB Series Specifications
Model		SPB-060-12	SPB-060-24	SPB-120-24	SPB-240-12	SPB-240-24	SPB-240-48
Output power		60W		120W	240W
Input	Voltage	100-240VAC(85-264VAC)
	Frequency	50/60Hz
	Efficiency*1	123		123	123
	Power factor*1	---		Min. 0.9
	Current consumption*1	Max. 1.6A		Max. 1.9A	Max. 3.8A
Power factor correction circuit		---		Built-in
Output	Voltage	12VDC	24VDC		12VDC	24VDC	48VDC
	Current	5A	2.5A	5A	20A	10A	5A
	Voltage adjustment range*2	Max. ±5%
	Input variation*3	Max. ±0.5%
	Load variation*1	Max. ±1%			Max. ±1.5%
	Ripple*1	Max. ±1%			Max. ±3%	Max. 1.5%	Max. ±1%
	Start-up time*1	Max. 600ms		Max. 1000ms
	Hold time*1	Min. 10ms			Min. 20ms
Protection	Inrush current protection	Max. 25A (100VAC), Max. 40A(240VAC)			Max. 50A(100VAC), Max. 50A(240VAC)
	Output over current protection*4	Min. 105%
	Output over voltage protection	5A		30.0V ±10%	16.0V ±10%	30.0V ±10%	58.0V ±10%
	Output short-circuit protection	Max. 10ms
	Output low-voltage indicate	9.6V±10%	9.6V±10%		10.0V±10%	20.0V±10%	43.0V±10%
Output indicator		Green LED
Insulation resistance		Min. 100MΩ(at 500VDC megger between all input terminals and output terminals)
Dielectric strength		3000VAC 50/60Hz for 1 min. (between all input terminals and output terminals)
		1500VAC 50/60Hz for 1 min. (between all input terminals and F.G.)
Vibration		0.75 mm amplitude at frequency of 10 to 55 Hz (for 1 min.) in each of X, Y, Z directions for 2 hour
Shock		300m/s² (approx. 30G) in each of X, Y, Z directions for 3 times
EMS		Conforms to EN61000-6-2
EMI		Conforms to EN61000-6-4
Safety		IEC60950, IEC50178
Environment	Ambient temperature	-10 to 50 °C , storage: -25 to 65 °C
	Ambient humidity	25 to 85%RH, storage: 25 to 90%RH
Protection		IP20(IEC standard)
Unit weight*5		Approx. 347g(approx. 274g)		Approx. 570g(approx. 466g)	Approx. 866g(approx. 736g)
1: It is for the rated input voltage 100-240VAC, and 100% load. 2: Adjusting voltage by the output adjuster (V.ADJ), it is changed the below voltage adjustment range(±5%). 3: It is for the rated input voltage 100-240VAC(85-264VAC), and 100% load. 4: It is for the rated input voltage 100-240VAC. 5: The weight is with packaging and the weight in parentheses is only unit weight. Environment is rated at no freezing or condensation.
