| Min. sensing distance |
50mm |
| Power supply |
24VDC ±10% |
| Current consumption |
1A |
| Inspection_Inspection item |
Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting |
| Inspection Work group |
32 |
| Inspection Simultaneous inspection |
64 |
| Inspection Camera frame per second |
Max. 60fps |
| Image snap Image filter |
Preprocessing, external filter(color filter, polarizing filter) |
| Image snap Image element |
1/3 inch color CMOS |
| Image snap Resolution |
752×480 pixel |
| Image snap Camera frame per second |
Max. 60fps |
| Image snap Shutter |
Global shutter |
| Image snap Exposure time |
20 to 10,000㎲ |
| Light ON/OFF method |
Pulse |
| Light Color |
White |
| Trigger mode |
External trigger, internal trigger, free-run trigger |
| Input Signal |
Rated input 24VDC (±10%) |
| Input Type |

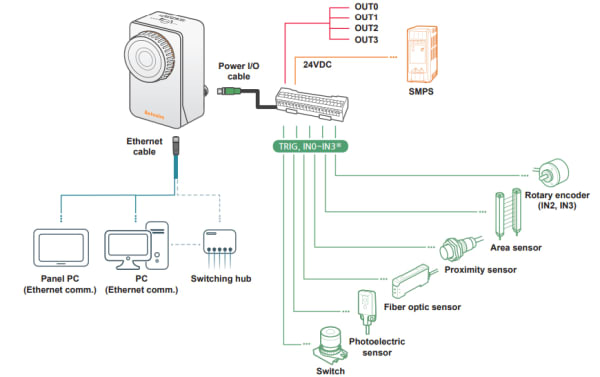

External trigger input(TRIG), encoder input(IN2, IN3), work group change(IN0 to IN3) |
| Output Signal |
NPN or PNP open collector output |
| Max. 24VDC 50mA, residual voltage |
max. 1.2VDC |
| Output Type |
Control output(OUT0 to OUT3): inspection completion, inspection result, external light trigger, alarm, camera busy |
| Output FTP transmission |
Possible |
| Protection circuit |
Output short over current protection circuit |
| Indicator |
ᆞPower indicator(POWER), Ethernet connection indicator(LINK), pass indicator(PASS): Green LED
ᆞData transmission indicator(DATA): Orange LED
ᆞFailure indicator(FAIL): Red LED |
| Insulation resistance |
Over 20MΩ (at 500VDC megger) |
| Dielectric strength |
500VAC~ 50/60Hz for 1 min. |
| Vibration |
1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Shock |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment Ambient temperature |
0 to 45℃, storage: -20 to 70℃ |
| Environment Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Protection structure |
IP67(IEC standard) |
| Material |
Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane |

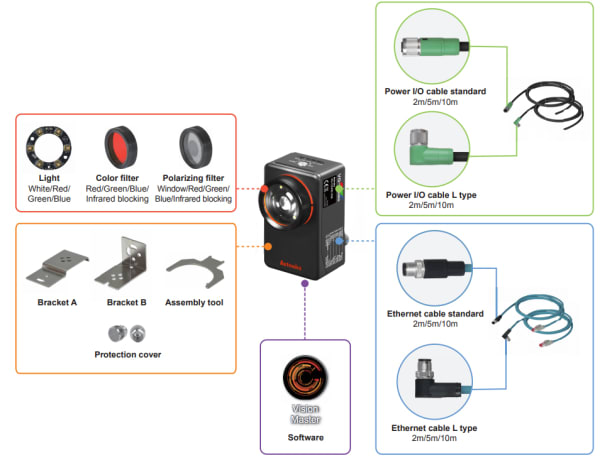

| Accessories |
Assembly tool, bracket A, mounting screw: 2 |
| Sold separately |
Light, color filter, polarizing filter, power I/O cable, Ethernet cable, bracket B, protection cover |
| Approval |
CE |
| Weight |
Approx. 415g(approx. 273g) |
