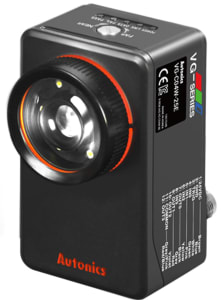

Autonics VG-C04W-25E - Vision Sensor

Name: Autonics VG-C04W-25E - Vision Sensor
Brand: Autonics
SKU: AutonicsVG-C04W-25E
Price: 2510.00 USD
Availability: InStock

0 reviews | Model: Autonics VG-C04W-25E

Compare

Vision Sensor, General Inspection, Color CMOS, 752 x 480, White Light, 25 mm, Ethernet Communication(TCP/IP), 24 VDC

Effective focal length : 25mm
Min. sensing distance : 200mm
Power supply : 24VDC ±10%
Current consumption : 1A
Inspection_Inspection item : Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting
Inspection_Work group : 32
Protection structure : IP67(IEC standard)

View Product Details

Your Price: $2,510.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics VG-C04W-25E Vision Sensor, General Inspection, Color CMOS, 752 x 480, White Light ...	Autonics VG-C04W-8E Vision Sensor, General Inspection, Color CMOS, 752 x 480, White Light, ...	Autonics VG-C04W-16E Vision Sensor, General Inspection, Color CMOS, 752 x 480, White Light ...	Autonics VG-M04W-8E Vision Sensor, General Inspection, Mono CMOS, 752 x 480, White Light, ...	Autonics VG-M04W-25E Vision Sensor, General Inspection, Mono CMOS, 752 x 480, White Light, ...	Autonics VG-M04W-16E Vision Sensor, General Inspection, Mono CMOS, 752 x 480, White Light, ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics VG-C04W-25E - Vision Sensor

VG Series

Effective focal length : 25mm
Min. sensing distance : 200mm
Power supply : 24VDC ±10%
Current consumption : 1A

Monochrome Type Vision Sensors

The VG series vision sensors utilize images captured by the integrated industrial camera lenses to determine the target object's presence, size, shape, orientation, patterns and more. The integrated design featuring LED lighting, camera and lens allows users to set up and manage the units more easily compared to vision systems. The camera also utilizes global shutter method to capture accurate images, and the sensors feature 10 essential inspection functions for diverse applications. The captured images can also be saved directly to FTP servers, so that users can manage and analyze the inspection data separately.

Overall Configuration Diagram

Connections

Dimensions

Ordering Information

General Specification
Min. sensing distance	200mm
Power supply	24VDC ±10%
Current consumption	1A
Inspection_Inspection item	Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting, color identification, area of color, object of color counting
Inspection_Work group	32
Inspection_Simultaneous inspection	64
Inspection_Camera frame per second	Max. 60fps
Image snap_Image filter	Preprocessing, external filter(color filter, polarizing filter)
Image snap_Image element	1/3 inch color CMOS
Image snap_Resolution	752×480 pixel
Image snap_Camera frame per second	Max. 60fps
Image snap_Shutter	Global shutter
Image snap_Exposure time	20 to 10,000㎲
Light_ON/OFF method	Pulse
Light_Color	White
Trigger mode	External trigger, internal trigger, free-run trigger
Input_Signal	Rated input 24VDC (±10%)
Input_Type	External trigger input(TRIG), encoder input(IN2, IN3), work group change(IN0 to IN3)
Output_Signal	NPN or PNP open collector output Max. 24VDC 50mA, residual voltage: max. 1.2VDC
Output_Type	Control output(OUT0 to OUT3): inspection completion, inspection result, external light trigger, alarm, camera busy
Output_FTP transmission	Possible
Protection circuit	Output short over current protection circuit
Indicator	Power indicator(POWER), Ethernet connection indicator(LINK), pass indicator(PASS): Green LED Data transmission indicator(DATA): Orange LED Failure indicator(FAIL): Red LED
Insulation resistance	Over 20MΩ (at 500VDC megger)
Dielectric strength	500VAC~ 50/60Hz for 1 min.
Vibration	1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature	0 to 45℃, storage: -20 to 70℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Protection structure	IP67(IEC standard)
Material	Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane
Accessories	Assembly tool, bracket A, mounting screw: 2
Sold separately	Light, color filter, polarizing filter, power I/O cable, Ethernet cable, bracket B, protection cover
Weight	Approx. 416g(approx. 274g)
