Autonics TZN4S-14C PID Temperature Controller, 1/16 DIN, Digital, Current Output, 1 Alarm Output, 100-240 VAC

Name: Autonics TZN4S-14C PID Temperature Controller, 1/16 DIN, Digital, Current Output, 1 Alarm Output, 100-240 VAC
Brand: Autonics
SKU: AutonicsTZN4S-14C
Price: 145.00 USD
Availability: InStock

0 reviews | Model: Autonics TZN4S-14C

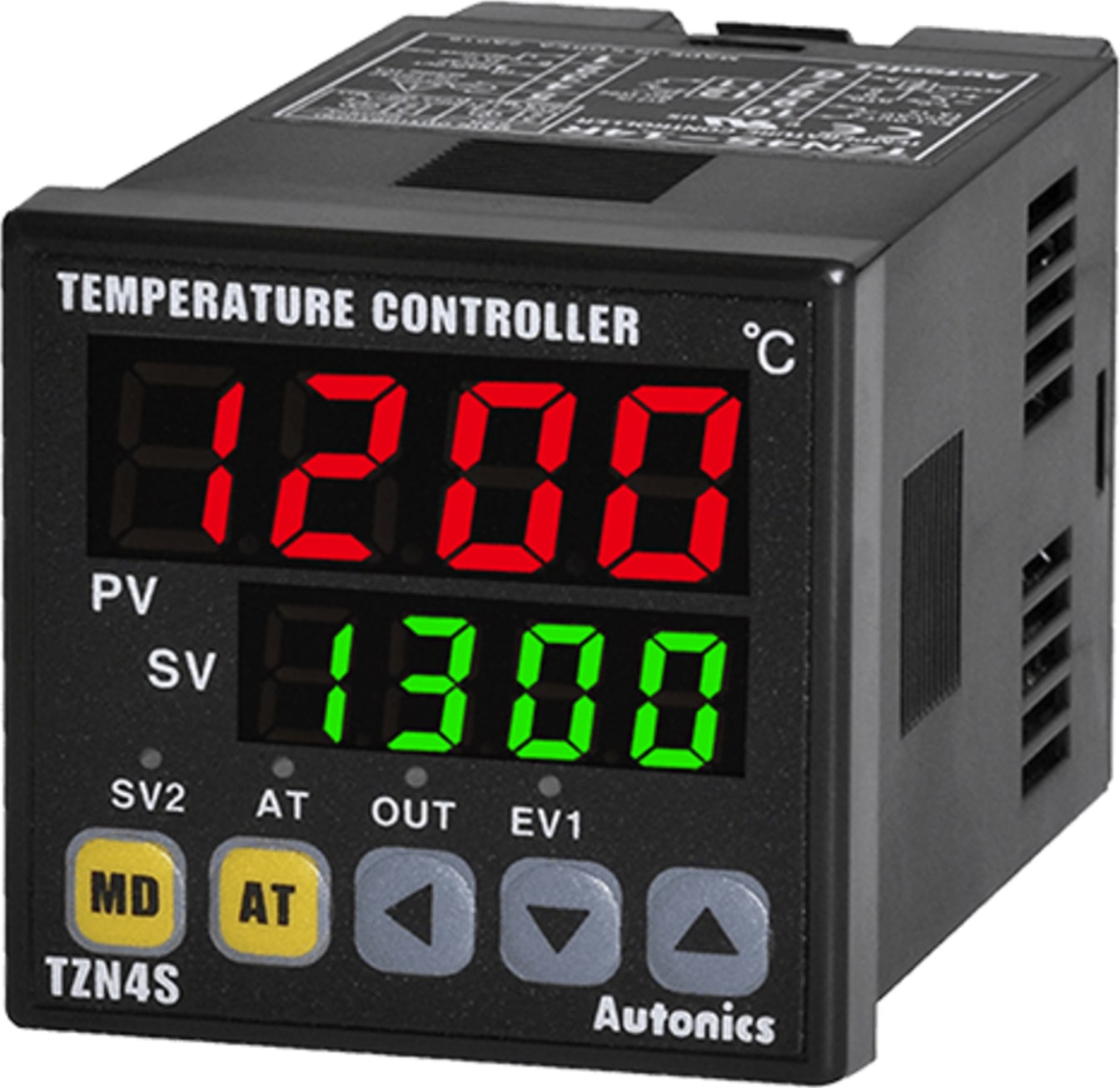

Autonics TZN4S Dual-Speed PID Temperature Controllers

Compare

PID Temp Control, 1/16 DIN, Digital, Current Output, 1 Alarm Output, 100-240 VAC

PID Temparature Control, 1/16 DIN, Digital, Current Output, 1 Alarm Output, 100-240 VAC
Dual PID auto tuning function: High-speed response of PID control to reach to the desired value fast, low-speed of response of PID control to minimize the overshoot even though response is a little bit slow
High display accuracy: ±0.3% (by F.S. value of each input)
2-step auto tuning control function
Multi-input function (13 kinds of multi-input selection function): Temperature sensor, voltage and current selection function
Various sub output function: Includes in LBA, SBA, 7 kinds of alarm output and 4 kinds of alarm option function, PV transmission output (DC4-20mA), RS485 communication output
Display the decimal point for analog input

View Product Details

List Price: $145.00

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

Autonics TZN4S-14C Dual-Speed PID Temperature Controllers

PID Temparature Control, 1/16 DIN, Digital, Current Output, 1 Alarm Output, 100-240 VAC
Multi-input function (13 kinds of multi-input selection function): Temperature sensor, voltage and current selection function
High display accuracy: ±0.3%(by F.S. value of each input)
2-Step auto tuning control function
Display the decimal point for analog input

The TZN series temperature controllers are equipped with dual speed PID control for high-speed or high-precision temperature control. The temperature controllers feature ±0.3% high display accuracy, 2-step auto tuning function and supports up to 13 different types of inputs, providing outstanding temperature control at affordable costs.

Product Model

Product Description

Present value (PV) display (red): RUN mode: displays the current value (PV) Setting mode: displays parameters
Set value (SV) display (green): RUN mode: displays the set value (SV) Setting mode: displays parameter setting values
SV2 operation indicator: turns ON when SV2 is operating
Auto-tuning indicator: turns ON when auto-tuning
Control output operation indicator: turns ON when control output is O
Does not operate when the input type is current outpu
Event output indicator: turns ON when the according event output is O
*The Event 2 output indicator does not operation in TZ4S
Mode key: enter parameter group, return to RUN mode, switch parameters, save setting values
Auto-tuning key: hold the key for 3 seconds to start auto-tunin
Hold the key for 5 seconds while auto-tuning to stop auto-tunin
Setting keys: enter SV change mode, switch fields, change value ( Autonics-TZN-Series-Description-01 key in the dotted line is only available in TZ4M and TZ4L models) 1
Key adjustment order chart

Dimensions

TZ4SP

TZ4ST

Since TZ4SP uses same identification plate with TZ4ST, the lamp does not work even though it has a EV2 output signal lamp.

TZ4M

TZ4W

TZN4W

TZN/TZ Series Specifications
Model No:	TZ4SP TZN4S	TZ4ST	TZ4M TZN4M	TZ4W TZN4W	TZ4H TZN4H	TZ4L TZN4L
Power Supply
AC power	100-240VAC 50/60Hz
AC/DC power※1	24VAC 50/60Hz, 24-48VDC
Allowable voltage range	90 to 110% of rated power voltage
Power consumption
AC power	Max. 5VA (100-240VAC 50/60Hz)		Max. 6VA (100-240VAC 50/60Hz)
AC/DC power※1	Max. 7VA (24VAC 50/60Hz), Max. 6W (24-48VDC)		Max. 8VA (24VAC 50/60Hz), Max. 7W (24-48VDC)	-	-	Max. 8VA(24VAC 50/60Hz), Max. 7W (24-48VDC)
Display method	7-segment LED (PV: red, SV: green)
Character size
PV (W×H)	TZ4SP: 4.8×7.8mm TZN4S: 7.8×11.0mm	4.8×7.8mm	TZ4M: 9.8×14.2mm TZN4M: 8.0×13.0mm	8.0×10.0mm	TZ4H: 3.8×7.6mm TZN4H: 7.8×11.0mm	9.8×14.2mm
SV (W×H)	TZ4SP: 4.8×7.8mm TZN4S: 5.8×8.0mm	4.8×7.8mm	TZ4M: 8.0×10.0mm TZN4M: 5.0×9.0mm	8.0×10.0mm	TZ4H: 3.8×7.6mm TZN4H: 5.8×8.0mm	8.0×10.0mm
Input type
RTD	DPt100Ω, JPt100Ω, 3-wire (allowed resistance: max. 5Ω per line)
TC	K(CA), J(IC), R(PR), E(CR), T(CC), S(PR), N(NN), W(TT)(allowed resistance: max. 100Ω per line)
Analog	1-5VDC, 0-10VDC, DC4-20mA
Display accuracy	F.S. ±0.3% or 3℃, greater value
Control Output
Relay	250VAC 3A 1c
SSR	Max. 12VDC ±3V 30mA
Current	DC4-20mA(load resistance max. 600Ω)
Option output
EVENT1	250VAC 1A 1a
EVENT2	-	250VAC 1A 1a
PV transmission	-	DC4-20mA(load resistance max. 600Ω)
Communication	-	-	RS485 communication
Control method	ON/OFF, P, PI, PD, PIDF, PIDS control
Alarm output hysteresis	1 to 100℃ (0.1 to 100.0℃) variable
Proportional band (P)	0.0 to 100.0%
Integral time (I)	0 to 3,600 seconds
Derivative time (D)	0 to 3,600 seconds
Control period (T)	1 to 120 seconds
Sampling period	0.5 seconds
LBA setting	1 to 999 seconds
Ramp setting	Ramp Up, Ramp Down: 1 to 99 minutes each
Dielectric strength	2,000VAC 50/60Hz for 1 min. (between input and power terminals)
Vibration
Mechanical	0.75mm amplitude at frequency 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours
Electrical	0.5mm amplitude at frequency 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 10 min.
Relay life cycle
Control output	Mechanical: Min. 10,000,000 operations, Electrical: Min. 100,000 operations (250VAC 3A resistance load)
Option output	Mechanical: Min. 20,000,000 operations, Electrical: Min. 500,000 operations (250VAC 1A resistance load)
Insulation resistance	Over 100MΩ (at 500VDC megger)
Noise
AC power	Square shaped noise by noise simulator (pulse width 1㎲) ±2kV R-phase, S-phase
AC/DC power※1	Square shaped noise by noise simulator (pulse width 1㎲) ±500V R-phase, S-phase		Square shaped noise by noise simulator (pulse width 1㎲) ±2kV R-phase, S-phase
Memory retention	Approx. 10 years (non-volatile semiconductor memory type)
Environment
Ambient temp.	-10 to 50℃, storage: -20 to 60℃
Ambient humi.	35 to 85%RH, storage: 35 to 85%RH
Weight	TZ4SP: Approx. 205g (Approx. 144g) TZN4S: Approx. 226g (Approx. 164g)	Approx. 218g (Approx. 162g)	TZ4M: Approx. 360g (Approx. 228g) TZN4M: Approx.355g (Approx. 246g)	TZ4W: Approx. 365g (Approx. 246g) TZN4W: Approx. 351g (Approx. 232g)	TZ4H: Approx. 365g (Approx. 246g) TZN4H: Approx. 351g (Approx. 232g)	TZ4L: Approx. 474g (Approx. 304g) TZN4L: Approx. 474g (Approx. 303g)

Temperature Controller
Type	Dual PID
Power Supply	110 - 220 VAC
Dimensions	48 x 96 mm
Control Output	Current output (DC4- 20 mA)
Alarm Output	Alarm1
