Autonics TZN4H-14C 4-Digit PID Temperature Controller (DIN W48 x H96mm) with Event 1 Output and Current Output (100-240 VAC)

Name: Autonics TZN4H-14C 4-Digit PID Temperature Controller (DIN W48 x H96mm) with Event 1 Output and Current Output (100-240 VAC)
Brand: Autonics
SKU: AutonicsTZN4H-14C
Price: 176.00 USD
Availability: InStock

0 reviews | Model: Autonics TZN4H-14C

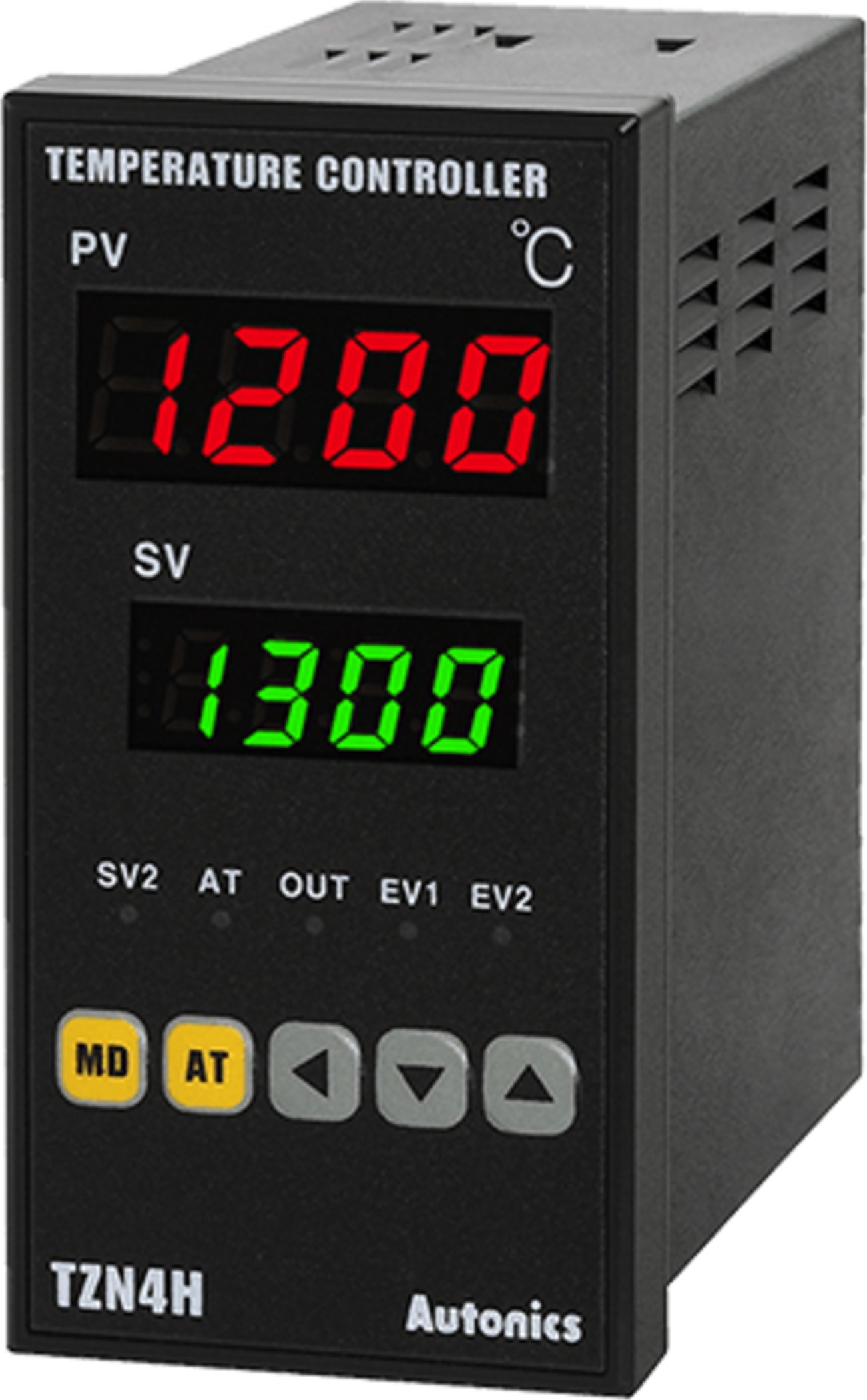

Autonics TZN4H Series Dual PID Control Temperature Controller

Compare

PID Temp Control, W48xH96mm, Digital, Current Output, 1 Alarm Output, 100-240 VAC

4-Digit PID Temperature Controller (DIN W48 x H96mm) with Event 1 Output and Current Output (100-240 VAC)
Dual PID auto tuning function: High-speed response of PID control to reach to the desired value fast, low-speed of response of PID control to minimize the overshoot
High display accuracy: ±0.3%(by F.S. value of each input)
2-Step auto tuning control function
Multi-input function (13 kinds of multi-input selection function): Temperature sensor, voltage and current selection function
Various sub output function: Includes in LBA, SBA, 7kinds of alarm output and 4 kinds of alarm option function, PV transmission output(DC4-20mA), RS485 communication output
Display the decimal point for analog input

View Product Details

Your Price: $176.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Autonics TZN4H-14C PID Temp Control, W48xH96mm, Digital, Current Output, 1 Alarm Output, 1 ...
Price
In Stock
Compare	Add to compare

Recommended for you

Autonics TZN4H-14C Dual-Speed PID Temperature Controllers

4-Digit PID Temperature Controller (DIN W48 x H96mm) with Event 1 Output and Current Output (100-240 VAC)
Multi-input function (13 kinds of multi-input selection function): Temperature sensor, voltage and current selection function
High display accuracy: ±0.3%(by F.S. value of each input)
2-Step auto tuning control function
Display the decimal point for analog input

The TZN series temperature controllers are equipped with dual speed PID control for high-speed or high-precision temperature control. The temperature controllers feature ±0.3% high display accuracy, 2-step auto tuning function and supports up to 13 different types of inputs, providing outstanding temperature control at affordable costs.

Product Model

Dimensions

TZ4SP

TZ4ST

Since TZ4SP uses same identification plate with TZ4ST, the lamp does not work even though it has a EV2 output signal lamp.

TZ4M

TZ4W

TZN4W

TZN/TZ Series Specifications
Model No:	TZ4SP TZN4S	TZ4ST	TZ4M TZN4M	TZ4W TZN4W	TZ4H TZN4H	TZ4L TZN4L
Power Supply
AC power	100-240VAC 50/60Hz
AC/DC power※1	24VAC 50/60Hz, 24-48VDC
Allowable voltage range	90 to 110% of rated power voltage
Power consumption
AC power	Max. 5VA (100-240VAC 50/60Hz)		Max. 6VA (100-240VAC 50/60Hz)
AC/DC power※1	Max. 7VA (24VAC 50/60Hz), Max. 6W (24-48VDC)		Max. 8VA (24VAC 50/60Hz), Max. 7W (24-48VDC)	-	-	Max. 8VA(24VAC 50/60Hz), Max. 7W (24-48VDC)
Display method	7-segment LED (PV: red, SV: green)
Character size
PV (W×H)	TZ4SP: 4.8×7.8mm TZN4S: 7.8×11.0mm	4.8×7.8mm	TZ4M: 9.8×14.2mm TZN4M: 8.0×13.0mm	8.0×10.0mm	TZ4H: 3.8×7.6mm TZN4H: 7.8×11.0mm	9.8×14.2mm
SV (W×H)	TZ4SP: 4.8×7.8mm TZN4S: 5.8×8.0mm	4.8×7.8mm	TZ4M: 8.0×10.0mm TZN4M: 5.0×9.0mm	8.0×10.0mm	TZ4H: 3.8×7.6mm TZN4H: 5.8×8.0mm	8.0×10.0mm
Input type
RTD	DPt100Ω, JPt100Ω, 3-wire (allowed resistance: max. 5Ω per line)
TC	K(CA), J(IC), R(PR), E(CR), T(CC), S(PR), N(NN), W(TT)(allowed resistance: max. 100Ω per line)
Analog	1-5VDC, 0-10VDC, DC4-20mA
Display accuracy	F.S. ±0.3% or 3℃, greater value
Control Output
Relay	250VAC 3A 1c
SSR	Max. 12VDC ±3V 30mA
Current	DC4-20mA(load resistance max. 600Ω)
Option output
EVENT1	250VAC 1A 1a
EVENT2	-	250VAC 1A 1a
PV transmission	-	DC4-20mA(load resistance max. 600Ω)
Communication	-	-	RS485 communication
Control method	ON/OFF, P, PI, PD, PIDF, PIDS control
Alarm output hysteresis	1 to 100℃ (0.1 to 100.0℃) variable
Proportional band (P)	0.0 to 100.0%
Integral time (I)	0 to 3,600 seconds
Derivative time (D)	0 to 3,600 seconds
Control period (T)	1 to 120 seconds
Sampling period	0.5 seconds
LBA setting	1 to 999 seconds
Ramp setting	Ramp Up, Ramp Down: 1 to 99 minutes each
Dielectric strength	2,000VAC 50/60Hz for 1 min. (between input and power terminals)
Vibration
Mechanical	0.75mm amplitude at frequency 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours
Electrical	0.5mm amplitude at frequency 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 10 min.
Relay life cycle
Control output	Mechanical: Min. 10,000,000 operations, Electrical: Min. 100,000 operations (250VAC 3A resistance load)
Option output	Mechanical: Min. 20,000,000 operations, Electrical: Min. 500,000 operations (250VAC 1A resistance load)
Insulation resistance	Over 100MΩ (at 500VDC megger)
Noise
AC power	Square shaped noise by noise simulator (pulse width 1㎲) ±2kV R-phase, S-phase
AC/DC power※1	Square shaped noise by noise simulator (pulse width 1㎲) ±500V R-phase, S-phase		Square shaped noise by noise simulator (pulse width 1㎲) ±2kV R-phase, S-phase
Memory retention	Approx. 10 years (non-volatile semiconductor memory type)
Environment
Ambient temp.	-10 to 50℃, storage: -20 to 60℃
Ambient humi.	35 to 85%RH, storage: 35 to 85%RH
Weight	TZ4SP: Approx. 205g (Approx. 144g) TZN4S: Approx. 226g (Approx. 164g)	Approx. 218g (Approx. 162g)	TZ4M: Approx. 360g (Approx. 228g) TZN4M: Approx.355g (Approx. 246g)	TZ4W: Approx. 365g (Approx. 246g) TZN4W: Approx. 351g (Approx. 232g)	TZ4H: Approx. 365g (Approx. 246g) TZN4H: Approx. 351g (Approx. 232g)	TZ4L: Approx. 474g (Approx. 304g) TZN4L: Approx. 474g (Approx. 303g)

Temperature Controller
Type	Dual PID
Power Supply	110 - 220 VAC
Dimensions	48 x 96 mm
Control Output	Current output (DC4- 20 mA)
Alarm Output	Alarm1

Tech Specs

Test Equipment General Attributes
HTS/Schedule B Number	9029.10.8000
ECCN Number	EAR99
Country of Origin	Korea
