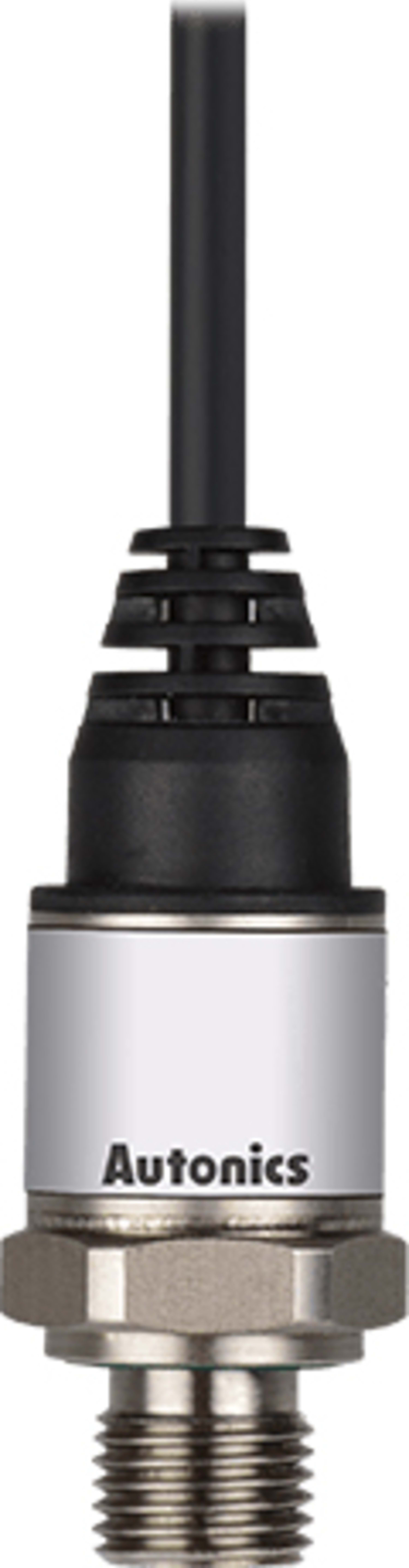

Autonics TPS30-G54AN4-00 Stainless Steel Pressure Transmitter

The TPS30 series compact stainless steel pressure transmitters are ideal for measuring gas, liquid, or oil pressure in tight spaces or small machinery. The robust build allows measurement of high pressure (0 to 60 MPa / 0 to 600 bar) and low pressure (0 to 2 MPa / 0 to 20 bar) in temperature conditions ranging from -40° to 125°C. The transmitters are available in 5 different connector types and can be applied across diverse applications from packaging machines to heavy machinery, factories, and shipbuilding.

Main features

High and Low Pressure Measurement

High Corrosion Resistance

Compact Size

Various Connector Types

Robust Build

Protection Rating (DIN43650-A Connector type:IP65)

High or Low-Pressure Measurement in High or Low-Temperature Environments

The robust build allows measurement of high pressure (0 to 60MPa /0 to 600bar) and low pressure (0 to 2MPa /0 to 20bar) in temperature conditions ranging from -40°C to 125°C.

Compact Size, Ideal for Tight Spaces or Small Machinery

The compact Ø21mm cylindrical design makes it ideal for installation in tight spaces or small machinery.

Analog Outputs

The series is available in DC 4-20mA current output (2-wire) and 1-5VDC voltage output (3-wire) types.

Various Connector Types Available

The transmitters are available in 5 different connector types, including cable type, DIN4365-A connector type, DT04-3P connector type, M12 connector type, and head type.

IP67 Protection Structure

IP67 protection means that the units can be safely applied in environments with dust or water (DIN43650-A connector type: IP65).

Applications

Measurement of charging pressure in high-pressure gas valves.
