| Series |

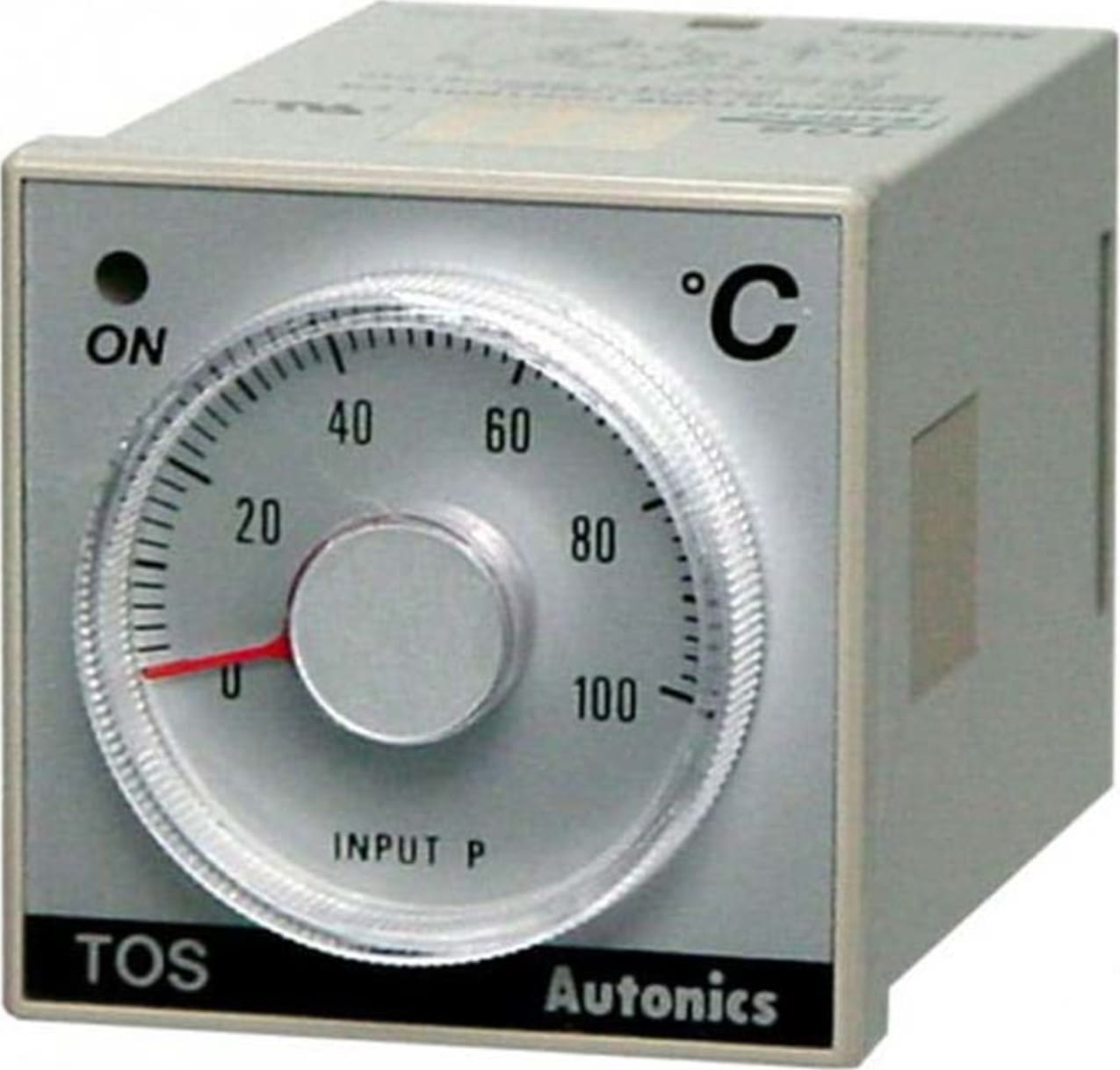

TOS |
| Power supply |
100-240VAC 50/60Hz |
| Allowable voltage range |
90 to 110% of rated voltage |
| Power consumption |
Max. 2.2VA |
| Display method |
LED ON |
| Setting type |
Dial setting |
| Setting accuracy |
F.S. ±2% |
| Sensor input |
Thermocouples: K (CA), J (IC) / RTD: DPt100Ω |
| Input line resistance |
Thermocouples: Max. 100Ω, RTD: Allowable line resistance max. 5Ω per a wire |
| Control Method |
ON/OFF |
Hysteresis: F.S. 0.5% ±0.2% fixed |
| Proportional |
Proportional band: F.S. 3% fixed, Period: 20sec. fixed |
| Control output |
- Relay output: 250VAC 2A 1c
- SSR drive output:
|
| Self-diagnosis |
Built-in burn out function (cut off output when sensor is disconnected) |
| Insulation resistance |
Min. 100MΩ (at 500VDC megger) |
| Dielectric strength |
2,000VAC 50/60Hz for 1 min. |
| Noise resistance |
±1kV the square wave noise (pulse width: 1㎲) by the noise simulator |
| Vibration |
Mechanical |
0.75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 1 hour |
| Malfunction |
0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 10 min. |
| Shock |
Mechanical |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Malfunction |
100m/s² (approx. 10G) in each X, Y, Z direction for 3 times |
| Relay life cycle |
Mechanical |
Min. 10,000,000 operations |
| Electrical |
Min. 100,000 operations (250VAC 3A at resistive load ) |
| Environment |
Ambient temperature |
-10 to 50°C, storage: -25 to 65°C |
| Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH |
| Unit weight |
Approx. 104g |
