Autonics TK4S-14SR Temperature Controller, 1/16 DIN, 1 Alarm

Name: Autonics TK4S-14SR Temperature Controller, 1/16 DIN, 1 Alarm
Brand: Autonics
SKU: AutonicsTK4S-14SR
Price: 133.00 USD
Availability: InStock

0 reviews | Model: Autonics TK4S-14SR

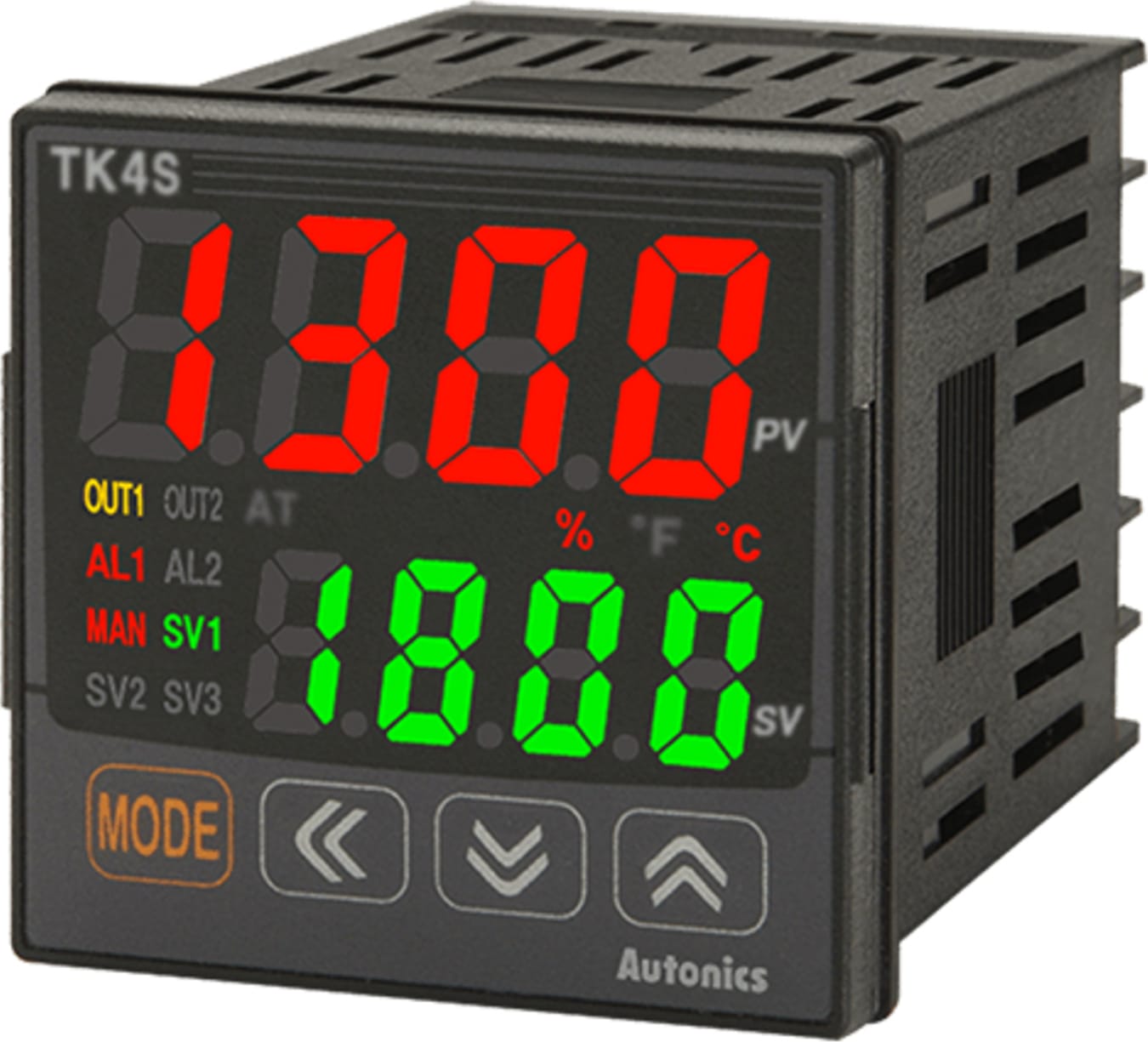

Autonic TK4S Temperature Controllers Series

Compare

Temp Control, 1/16 DIN, 1 Alarm, SSRP Voltage Output1, Relay Contact Output 2, 100-240VAC

Temparature Control, 1/16 DIN, 1 Alarm, SSRP Voltage Output1, Relay Contact Output 2, 100-240VAC
New line-up: AC/DC low voltage type (except TK4N models)
50 ms high-speed sampling rate and ±0.3% display accuracy
Simultaneous heating and cooling control function
Automatic/manual control option
Switch between current output and SSR drive output
SSR drive output (SSRP function) control options: ON/OFF control, cycle control, phase control
Communication output models available : RS485 (Modbus RTU)
Parameter configuration via PC (RS485 communication)
- DAQMaster software included (comprehensive device management software)
- Communication converter sold separately: SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)
User-friendly parameter features (via DAQMaster)
SV preset function (up to 4 set values) using digital input terminals
Heater disconnect alarm function (CT input)
- Current transformer (CT) sold separately: CSTC-E80LN, CSTC-E200LN
Various input types and temperature ranges
Various DIN sizes: (48 x 24, 48 x 48, 72 x 72, 96 x 48, 48 x 96, 96 x 96 mm)

View Product Details

Your Price: $133.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics TK4S-14SR Temp Control, 1/16 DIN, 1 Alarm, SSRP Voltage Output1, Relay Contact Ou ...	Autonics TK4S-T4RC Temp Control, 1/16 DIN, 1 Alarm+RS485, Relay Contact Output1, Current o ...	Autonics TK4H-B4RN Temp Control, DIN W48XH96mm, 2 Alarm+RS485, Relay Contact Output, 100-2 ...	Autonics TK4H-B4SN Temp Control, DIN W48XH96mm, 2 Alarm+RS485, SSRP Voltage Output, 100-24 ...	Autonics TK4H-A4CC Temp Control, DIN W48XH96mm, 2 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4H-A4CR Temp Control, DIN W48XH96mm, 2 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4H-A4RC Temp Control, DIN W48XH96mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4H-A4RR Temp Control, DIN W48XH96mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4H-A4SC Temp Control, DIN W48XH96mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4H-A4SR Temp Control, DIN W48XH96mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4H-T4CC Temp Control, DIN W48XH96mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4H-T4CR Temp Control, DIN W48XH96mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4H-T4RC Temp Control, DIN W48XH96mm, 1 Alarm+RS485, Relay Contact Output1, Curr ...	Autonics TK4H-T4SC Temp Control, DIN W48XH96mm, 1 Alarm+RS485, SSRP Voltage Output1, Curre ...	Autonics TK4H-T4SR Temp Control, DIN W48XH96mm, 1 Alarm+RS485, SSRP Voltage Output1, Relay ...	Autonics TK4H-B4CC Temp Control, DIN W48XH96mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4H-B4CR Temp Control, DIN W48XH96mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4H-B4RC Temp Control, DIN W48XH96mm, 2 Alarm+RS485, Relay Contact Output1, Curr ...	Autonics TK4H-B4RR Temp Control, DIN W48XH96mm, 2 Alarm+RS485, Relay Contact Output1, Rela ...	Autonics TK4H-14CN Temp Control, DIN W48XH96mm, 1 Alarm, Current or SSR Drive Output, 100- ...	Autonics TK4H-14RC Temp Control, DIN W48XH96mm, 1 Alarm, Relay Contact Output1, Current or ...	Autonics TK4H-14RN Temp Control, DIN W48XH96mm, 1 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4H-14RR Temp Control, DIN W48XH96mm, 1 Alarm, Relay Contact Output1, Relay Cont ...	Autonics TK4H-24CR Temp Control, DIN W48XH96mm, 2 Alarm, Current or SSR Drive Output 1, Re ...	Autonics TK4H-24RN Temp Control, DIN W48XH96mm, 2 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4H-24RR Temp Control, DIN W48XH96mm, 2 Alarm, Relay Contact Output1, Relay Cont ...	Autonics TK4H-24SN Temp Control, DIN W48XH96mm, 2 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4H-A4RN Temp Control, DIN W48XH96mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4L-14CR Temp Control, DIN W96XH96mm, 1 Alarm, Current or SSR Drive Output 1, Re ...	Autonics TK4L-14RC Temp Control, DIN W96XH96mm, 1 Alarm, Relay Contact Output1, Current or ...	Autonics TK4L-14RN Temp Control, DIN W96XH96mm, 1 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4L-14RR Temp Control, DIN W96XH96mm, 1 Alarm, Relay Contact Output1, Relay Cont ...	Autonics TK4L-14SN Temp Control, DIN W96XH96mm, 1 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4L-24CN Temp Control, DIN W96XH96mm, 2 Alarm, Current or SSR Drive Output, 100- ...	Autonics TK4L-24RC Temp Control, DIN W96XH96mm, 2 Alarm, Relay Contact Output1, Current or ...	Autonics TK4L-24RN Temp Control, DIN W96XH96mm, 2 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4L-24RR Temp Control, DIN W96XH96mm, 2 Alarm, Relay Contact Output1, Relay Cont ...	Autonics TK4L-24SN Temp Control, DIN W96XH96mm, 2 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4L-B4CC Temp Control, DIN W96XH96mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4L-B4CN Temp Control, DIN W96XH96mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4L-B4RN Temp Control, DIN W96XH96mm, 2 Alarm+RS485, Relay Contact Output, 100-2 ...	Autonics TK4L-R4CN Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4M-14RN Temp Control, DIN W72XH72mm, 1 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4M-14RR Temp Control, DIN W72XH72mm, 1 Alarm, Relay Contact Output1, Relay Cont ...	Autonics TK4M-14SN Temp Control, DIN W72XH72mm, 1 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4M-24CN Temp Control, DIN W72XH72mm, 2 Alarm, Current or SSR Drive Output, 100- ...	Autonics TK4M-24CR Temp Control, DIN W72XH72mm, 2 Alarm, Current or SSR Drive Output 1, Re ...	Autonics TK4M-24RR Temp Control, DIN W72XH72mm, 2 Alarm, Relay Contact Output1, Relay Cont ...	Autonics TK4M-24SN Temp Control, DIN W72XH72mm, 2 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4M-A4RN Temp Control, DIN W72XH72mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4M-A4RR Temp Control, DIN W72XH72mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4N-14CN Temp Control, 1/32 DIN, 1 Alarm, Current or SSR Drive Output, 100-240VA ...	Autonics TK4N-14RN Temp Control, 1/32 DIN, 1 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4S-12RN Temperature Controller, 1/16 DIN, 1 Alarm, Relay Contact Output, 24VAC ...	Autonics TK4S-14CN Temp Control, 1/16 DIN, 1 Alarm, Current or SSR Drive Output, 100-240VA ...	Autonics TK4S-14CR Temp Control, 1/16 DIN, 1 Alarm, Current or SSR Drive Output 1, Relay C ...	Autonics TK4S-14RN Temp Control, 1/16 DIN, 1 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4S-14RR Temp Control, 1/16 DIN, 1 Alarm, Relay Contact Output1, Relay Contact O ...	Autonics TK4S-14SC Temp Control, 1/16 DIN, 1 Alarm, SSRP Voltage Output1, Current or SSR D ...	Autonics TK4S-14SN Temp Control, 1/16 DIN, 1 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4S-24CC Temp Control, 1/16 DIN, 2 Alarm+Current or SSR Drive Output, Current or ...	Autonics TK4S-24CN Temp Control, 1/16 DIN, 2 Alarm, Current or SSR Drive Output, 100-240VA ...	Autonics TK4S-24CR Temp Control, 1/16 DIN, 2 Alarm+Current or SSR Drive Output, Relay Cont ...	Autonics TK4S-24RC Temp Control, 1/16 DIN, 2 Alarm+Relay Output, SSRP Voltage Output, 100- ...	Autonics TK4S-24RN Temp Control, 1/16 DIN, 2 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4S-24RR Temp Control, 1/16 DIN, 2 Alarm, Relay Contact Output1, Relay Contact O ...	Autonics TK4S-24SC Temp Control, 1/16 DIN, 2 Alarm, SSRP Voltage Output 1, Current or SSR ...	Autonics TK4S-24SN Temp Control, 1/16 DIN, 2 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4S-24SR Temp Control, 1/16 DIN, 2 Alarm, SSRP Voltage Output1, Relay Contact Ou ...	Autonics TK4S-A4CR Temp Control, 1/16 DIN, 2 Alarm+PV transmission, Current or SSR Drive O ...	Autonics TK4S-A4RN Temp Control, 1/16 DIN, 2 Alarm+PV transmission, Relay Contact Output1, ...	Autonics TK4S-B4CR Temp Control, 1/16 DIN, 2 Alarm+RS485, Current or SSR Drive Output 1, R ...	Autonics TK4S-B4RC Temp Control, 1/16 DIN, 2 Alarm+RS485, Relay Contact Output1, Current o ...	Autonics TK4S-B4RR Temp Control, 1/16 DIN, 2 Alarm+RS485, Relay Contact Output1, Relay Con ...	Autonics TK4S-R4RN Temp Control, 1/16 DIN, 1 Alarm+PV transmission, Relay Contact Output, ...	Autonics TK4S-R4RR Temp Control, 1/16 DIN, 1 Alarm+PV transmission, Current or SSR Drive O ...	Autonics TK4S-T4RN Temperature Controller, 1/16 DIN, 1 Alarm+PV transmission, SSRP Voltage ...	Autonics TK4S-T4RR Temp Control, 1/16 DIN, 1 Alarm+RS485, Relay Contact Output1, Relay Con ...	Autonics TK4S-T4SR Temp Control, 1/16 DIN, 1 Alarm+RS485, SSRP Voltage Output1, Relay Cont ...	Autonics TK4SP-14CN Temp Control, 1/16 DIN, 11-pin, 1 Alarm, Current or SSR Drive Output, ...	Autonics TK4SP-14RR Temp Control, 1/16 DIN, 11-pin, 1 Alarm, Relay Contact Output1, Relay ...	Autonics TK4SP-14SN Temp Control, 1/16 DIN, 11-pin, 1 Alarm, SSRP Voltage Output, 100-240V ...	Autonics TK4SP-14SR Temp Control, 1/16 DIN, 11-pin, 1 Alarm, SSRP Voltage Output1, Relay C ...	Autonics TK4W-14RR Temp Control, DIN W96XH48mm, 1 Alarm, Relay Contact Output1, Relay Cont ...	Autonics TK4W-14SN Temp Control, DIN W96XH48mm, 1 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4W-24CC Temp Control, DIN W96XH48mm, 2 Alarm, Current or SSR Drive Output 1, Cu ...	Autonics TK4W-24CR Temp Control, DIN W96XH48mm, 2 Alarm, Current or SSR Drive Output 1, Re ...	Autonics TK4W-24RN Temp Control, DIN W96XH48mm, 2 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4W-24RR Temp Control, DIN W96XH48mm, 2 Alarm, Relay Contact Output1, Relay Cont ...	Autonics TK4W-A4CR Temp Control, DIN W96XH48mm, 2 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4W-A4RN Temp Control, DIN W96XH48mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4W-B4RN Temp Control, DIN W96XH48mm, 2 Alarm+RS485, Relay Contact Output, 100-2 ...	Autonics TK4W-T4RN Temp Control, DIN W96XH48mm, 1 Alarm+RS485, Relay Contact Output, 100-2 ...	Autonics TK4H-24CC Temp Control, DIN W48XH96mm, 2 Alarm, Current or SSR Drive Output 1, Cu ...	Autonics TK4L-T4RR Temp Control, DIN W96XH96mm, 1 Alarm+RS485, Relay Contact Output1, Rela ...	Autonics TK4M-14CN Temp Control, DIN W72XH72mm, 1 Alarm, Current or SSR Drive Output, 100- ...	Autonics TK4M-24RC Temp Control, DIN W72XH72mm, 2 Alarm, Relay Contact Output1, Current or ...	Autonics TK4M-B4RN Temp Control, DIN W72XH72mm, 2 Alarm+RS485, Relay Contact Output, 100-2 ...	Autonics TK4M-T4SR Temp Control, DIN W72XH72mm, 1 Alarm+RS485, SSRP Voltage Output1, Relay ...	Autonics TK4N-14CC Temp Control, 1/32 DIN, 1 Alarm, Current or SSR Drive Output1, Current ...	Autonics TK4S-14CC Temp Control, 1/16 DIN, 1 Alarm, Current or SSR Drive Output 1, Current ...	Autonics TK4S-14RC Temp Control, 1/16 DIN, 1 Alarm, Relay Contact Output1, Current or SSR ...	Autonics TK4S-B4RN Temp Control, 1/16 DIN, 2 Alarm+RS485, SSRP Voltage Output1, Current or ...	Autonics TK4S-B4SC Temp Control, 1/16 DIN, 2 Alarm+RS485, SSRP Voltage Output1, Current or ...	Autonics TK4S-T4CC Temp Control, 1/16 DIN, 1 Alarm+RS485, Current or SSR Drive Output 1, C ...	Autonics TK4M-24RN Temp Control, DIN W72XH72mm, 2 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4H-24RC Temp Control, DIN W48XH96mm, 2 Alarm, Relay Contact Output1, Current or ...	Autonics TK4S-B4CC Temp Control, 1/16 DIN, 2 Alarm+RS485, Current or SSR Drive Output 1, C ...	Autonics TK4S-T4CN Temp Control, 1/16 DIN, 1 Alarm+RS485, Current Output or SSR Drive Outp ...	Autonics TK4W-14RN Temp Control, DIN W96XH48mm, 1 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4N-14SN Temp Control, 1/32 DIN, 1 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4S-12RR Temp Control, 1/16 DIN, 1 Alarm, Relay Contact Output1, Relay Contact O ...	Autonics TK4L-B4CR Temp Control, DIN W96XH96mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4W-14CN Temp Control, DIN W96XH48mm, 1 Alarm, Current or SSR Drive Output, 100- ...	Autonics TK4N-14SR Temp Control, 1/32 DIN, 1 Alarm, SSR Drive Output1, Relay Output2, 100- ...	Autonics TK4H-24CN Temp Control, DIN W48XH96mm, 2 Alarm, Current or SSR Drive Output, 100- ...	Autonics TK4L-24CC Temp Control, DIN W96XH96mm, 2 Alarm, Current or SSR Drive Output 1, Cu ...	Autonics TK4SP-14RN Temp Control, 1/16 DIN, 11-pin, 1 Alarm, Relay Contact Output, 100-240 ...	Autonics TK4H-22RN Temperature Controller, 1/8 DIN W48XH96mm, 2 Alarm, Relay Contact Outpu ...	Autonics TK4H-24SR Temp Control, DIN W48XH96mm, 2 Alarm, SSRP Voltage Output1, Relay Conta ...	Autonics TK4H-A4SN Temp Control, DIN W48XH96mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4H-B4CN Temp Control, DIN W48XH96mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4H-B4SR Temp Control, DIN W48XH96mm, 2 Alarm+RS485, SSRP Voltage Output1, Relay ...	Autonics TK4H-R4CC Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4H-R4CN Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4H-R4CR Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4H-R4RC Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4H-R4RN Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4H-R4SC Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4H-R4SN Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4H-R4SR Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4H-T4CN Temp Control, DIN W48XH96mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4H-T4RN Temp Control, DIN W48XH96mm, 1 Alarm+RS485, Relay Contact Output, 100-2 ...	Autonics TK4H-T4SN Temp Control, DINW48XH96mm, 1 Alarm+RS485, SSRP Voltage Output, 100-240 ...	Autonics TK4L-14SR Temp Control, DIN W96XH96mm, 1 Alarm, SSRP Voltage Output1, Relay Conta ...	Autonics TK4L-24SC Temp Control, DIN W96XH96mm, 2 Alarm, SSRP Voltage Output1, Current or ...	Autonics TK4L-A4CC Temp Control, DIN W96XH96mm, 2 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4L-A4CR Temp Control, DIN W96XH96mm, 2 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4L-A4RN Temp Control, DIN W96XH96mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4L-A4SC Temp Control, DIN W96XH96mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4L-A4SN Temp Control, DIN W96XH96mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4L-A4SR Temp Control, DIN W96XH96mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4L-B4RC Temp Control, DIN W96XH96mm, 2 Alarm+RS485, Relay Contact Output1, Curr ...	Autonics TK4L-B4RR Temp Control, DIN W96XH96mm, 2 Alarm+RS485, Relay Contact Output1, Rela ...	Autonics TK4L-B4SC Temp Control, DIN W96XH96mm, 2 Alarm+RS485, SSRP Voltage Output1, Curre ...	Autonics TK4L-B4SN Temp Control, DIN W96XH96mm, 2 Alarm+RS485, SSRP Voltage Output, 100-24 ...	Autonics TK4L-B4SR Temp Control, DIN W96XH96mm, 2 Alarm+RS485, SSRP Voltage Output1, Relay ...	Autonics TK4L-R4CC Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4L-R4CR Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4L-R4RC Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4L-R4RN Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4L-R4RR Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4L-R4SC Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4L-R4SN Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4L-R4SR Temp Control, DIN W96XH96mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4L-T4CN Temp Control, DIN W96XH96mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4L-T4CR Temp Control, DIN W96XH96mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4L-T4RN Temp Control, DIN W96XH96mm, 1 Alarm+RS485, Relay Contact Output, 100-2 ...	Autonics TK4L-T4SC Temp Control, DIN W96XH96mm, 1 Alarm+RS485, SSRP Voltage Output1, Curre ...	Autonics TK4L-T4SN Temp Control, DINW96XH96mm, 1 Alarm+RS485, SSRP Voltage Output, 100-240 ...	Autonics TK4L-T4SR Temp Control, DIN W96XH96mm, 1 Alarm+RS485, SSRP Voltage Output1, Relay ...	Autonics TK4M-A4CC Temp Control, DIN W72XH72mm, 2 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4M-A4CR Temp Control, DIN W72XH72mm, 2 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4M-A4RC Temp Control, DIN W72XH72mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4M-A4SC Temp Control, DIN W72XH72mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4M-A4SN Temp Control, DIN W72XH72mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4M-A4SR Temp Control, DIN W72XH72mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4M-B4CC Temp Control, DIN W72XH72mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4M-B4CN Temp Control, DIN W72XH72mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4M-B4CR Temp Control, DIN W72XH72mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4M-B4RC Temp Control, DIN W72XH72mm, 2 Alarm+RS485, Relay Contact Output1, Curr ...	Autonics TK4M-B4RR Temp Control, DIN W72XH72mm, 2 Alarm+RS485, Relay Contact Output1, Rela ...	Autonics TK4M-B4SC Temp Control, DIN W72XH72mm, 2 Alarm+RS485, SSRP Voltage Output1, Curre ...	Autonics TK4M-B4SN Temp Control, DIN W72XH72mm, 2 Alarm+RS485, SSRP Voltage Output, 100-24 ...	Autonics TK4M-B4SR Temp Control, DIN W72XH72mm, 2 Alarm+RS485, SSRP Voltage Output1, Relay ...	Autonics TK4M-R4CC Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4M-R4CN Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4M-R4CR Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4M-R4RC Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4M-R4RN Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4M-R4RR Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4M-R4SC Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4M-R4SN Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4M-R4SR Temp Control, DIN W72XH72mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4M-T4CC Temp Control, DIN W72XH72mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4M-T4CN Temp Control, DIN W72XH72mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4M-T4CR Temp Control, DIN W72XH72mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4M-T4RN Temp Control, DIN W72XH72mm, 1 Alarm+RS485, Relay Contact Output, 100-2 ...	Autonics TK4M-T4RR Temp Control, DIN W72XH72mm, 1 Alarm+RS485, Relay Contact Output1, Rela ...	Autonics TK4M-T4SC Temp Control, DIN W72XH72mm, 1 Alarm+RS485, SSRP Voltage Output1, Curre ...	Autonics TK4M-T4SN Temp Control, DIN W72XH72mm, 1 Alarm+RS485, SSRP Voltage Output, 100-24 ...	Autonics TK4N-T4CC Temperature Controller, 1/32 DIN, 1 Alarm + RS485 Communication Output, ...	Autonics TK4N-T4CR Temperature Controller, 1/32 DIN, 1 Alarm + RS485 Communication Output, ...	Autonics TK4N-T4RC Temperature Controller, 1/32 DIN, 1 Alarm + RS485 Communication Output, ...	Autonics TK4N-T4RR Temperature Controller, 1/32 DIN, 1 Alarm + RS485 Communication Output, ...	Autonics TK4N-T4SC Temperature Controller, 1/32 DIN, 1 Alarm + RS485 Communication Output, ...	Autonics TK4N-T4SR Temperature Controller, 1/32 DIN, 1 Alarm + RS485 Communication Output, ...	Autonics TK4S-22CC Temperature Controller, 1/8 DIN W48XH96mm, 1 Alarm, Current or SSR Driv ...	Autonics TK4S-22CR Temperature Controller, 1/8 DIN W48XH96mm, 1 Alarm, Current or SSR Driv ...	Autonics TK4S-22RC Temperature Controller, 1/8 DIN W48XH96mm, 1 Alarm, Relay Contact Outpu ...	Autonics TK4S-22RR Temp Control, 1/16 DIN, 2 Alarm, Relay Contact Output1, Relay Contact O ...	Autonics TK4S-A4CC Temp Control, 1/16 DIN, 2 Alarm+PV transmission, Current or SSR Drive O ...	Autonics TK4L-12RN Temp Control, DIN W96XH96mm, 1 Alarm, Relay Contact Output, 24VAC 50/60 ...	Autonics TK4N-14RC Temp Control, 1/32 DIN, 1 Alarm, Relay Contact Output1, Current or SSR ...	Autonics TK4L-22RN Temp Control, DIN W96XH96mm, 2 Alarm, Relay Contact Output, 24VAC 50/60 ...	Autonics TK4N-14RR Temp Control, 1/32 DIN, 1 Alarm, Relay Contact Output1, Relay Contact O ...	Autonics TK4N-14SC Temp Control, 1/32 DIN, 1 Alarm, SSR Drive Output1, Current or SSR Driv ...	Autonics TK4N-24CN Temp Control, 1/32 DIN, 2 Alarm, Current or SSR Drive Output, 100-240VA ...	Autonics TK4S-A4RC Temp Control, 1/16 DIN, 2 Alarm+PV transmission, Relay Contact Output1, ...	Autonics TK4S-A4SC Temp Control, 1/16 DIN, 2 Alarm+PV transmission, SSRP voltage output1, ...	Autonics TK4S-A4SR Temp Control, 1/16 DIN, 2 Alarm+PV transmission, SSRP voltage output1, ...	Autonics TK4S-B2RR Temperature Controller, 1/16 DIN, 2 Alarm+RS485, Relay Contact Output 1 ...	Autonics TK4S-B4SN Temp Control, 1/16 DIN, 2 Alarm+RS485, SSRP Voltage Output1, Relay Cont ...	Autonics TK4N-24SN Temp Control, 1/32 DIN, 2 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4N-D4CC Temp Control, 1/32 DIN, 1 Alarm + Digital Input(DI-1,DI-2), Current or ...	Autonics TK4N-D4CN Temp Control, 1/32 DIN, 1 Alarm + Digital Input(DI-1, DI-2), Current or ...	Autonics TK4N-D4CR Temp Control, 1/32 DIN, 1 Alarm + Digital Input(DI-1,DI-2), Current or ...	Autonics TK4N-D4RC Temp Control, 1/32 DIN, 1 Alarm + Digital Input(DI-1,DI-2), Relay Conta ...	Autonics TK4N-24RN Temp Control, 1/32 DIN, 2 Alarm, Relay Contact Output, 100-240VAC	Autonics TK4S-B4SR Temp Control, 1/16 DIN, 2 Alarm+RS485, SSRP Voltage Output1, Relay Cont ...	Autonics TK4S-T4SC Temp Control, 1/16 DIN, 1 Alarm+RS485, SSRP Voltage Output1, Current or ...	Autonics TK4W-22RN Temperature Controller, DIN W96XH48mm, 2 Alarm, Relay Contact Output, 2 ...	Autonics TK4W-A2CC Temperature Controller, DIN W96XH48mm, 2 Alarm+PV Transmission, Current ...	Autonics TK4W-A2CR Temperature Controller, DIN W96XH48mm, 2 Alarm+PV Transmission, Current ...	Autonics TK4W-A2RC Temperature Controller, DIN W96XH48mm, 2 Alarm+PV Transmission, Relay C ...	Autonics TK4W-A4RC Temp Control, DIN W96XH48mm, 2 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4N-D4RN Temp Control, 1/32 DIN, 1 Alarm + Digital Input(DI-1, DI-2), Relay Cont ...	Autonics TK4N-D4RR Temp Control, 1/32 DIN, 1 Alarm + Digital Input(DI-1,DI-2), Relay Conta ...	Autonics TK4N-D4SC Temp Control, 1/32 DIN, 1 Alarm + Digital Input(DI-1,DI-2), SSR Drive O ...	Autonics TK4N-D4SR Temp Control, 1/32 DIN, 1 Alarm + Digital Input(DI-1,DI-2), SR Drive Ou ...	Autonics TK4N-R4CC Temp Control, 1/32 DIN, 1 Alarm + Transmission Output, Current or SSR O ...	Autonics TK4N-R4RC Temp Control, 1/32 DIN, 1 Alarm + Transmission Output, Relay Contact Ou ...	Autonics TK4N-R4CN Temp Control, 1/32 DIN, 1 Alarm + Transmission Output, Current + SSR Dr ...	Autonics TK4N-R4RN Temp Control, 1/32 DIN, 1 Alarm + Transmission Output, Relay Contact Ou ...	Autonics TK4N-R4RR Temp Control, 1/32 DIN, 1 Alarm + Transmission Output, Relay Contact Ou ...	Autonics TK4N-R4SC Temp Control, 1/32 DIN, 1 Alarm + Transmission Output, SSR Drive Output ...	Autonics TK4N-R4SN Temp Control, 1/32 DIN, 1 Alarm + Transmission Output, SSR Drive Output ...	Autonics TK4N-R4SR Temp Control, 1/32 DIN, 1 Alarm + Transmission Output, SSR Drive Output ...	Autonics TK4N-T4RN Temp Control, 1/32 DIN, 1 Alarm + RS485 Communication Output, Relay Con ...	Autonics TK4N-T4SN Temp Control, 1/32 DIN, 1 Alarm + RS485 Communication Output, SSR Drive ...	Autonics TK4N-T4CN Temp Control, 1/32 DIN, 1 Alarm + RS485 Communication Output, Current o ...	Autonics TK4S-12RC Temp Control, 1/16 DIN, 1 Alarm, Relay Contact Output1, Current or SSR ...	Autonics TK4S-22CN Temperature Controller, 1/8 DIN W48XH96mm, 1 Alarm, Current or SSR Driv ...	Autonics TK4S-22RN Temp Control, 1/16 DIN, 2 Alarm, Relay Contact Output, 24 VAC	Autonics TK4S-A4SN Temp Control, 1/16 DIN, 2 Alarm+PV transmission, SSRP voltage output1, ...	Autonics TK4S-D4CN Temp Control, 1/16 DIN,2 Alarm,2 Digital Input, Current or SSR Drive Ou ...	Autonics TK4H-14SN Temp Control, DIN W48XH96mm, 1 Alarm, SSRP Voltage Output, 100-240VAC	Autonics TK4S-D4RN Temp Control, 1/16 DIN,2 Alarm,2 Digital Input, Relay Contact Output, 1 ...	Autonics TK4SP-12RN Temp Control, 1/16 DIN, 11-pin, 1 Alarm, Relay Contact Output, 24-48VD ...	Autonics TK4S-D4SN Temp Control, 1/16 DIN, 2 Alarm,2 Digital Input, SSRP Voltage Output, 1 ...	Autonics TK4SP-14SC Temp Control, 1/16 DIN, 11-pin, 1 Alarm, SSRP Voltage Output1, Current ...	Autonics TK4S-R4SC Temp Control, 1/16 DIN, 1 Alarm+PV transmission, Current or SSR Drive O ...	Autonics TK4S-R4CC Temp Control, 1/16 DIN, 2 Alarm, Relay Contact Output1, Relay Contact O ...	Autonics TK4S-R4SR Temp Control, 1/16 DIN, 1 Alarm+PV transmission, Relay Contact Output1, ...	Autonics TK4W-A4SC Temp Control, DIN W96XH48mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4W-A4SN Temp Control, DIN W96XH48mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4W-A4SR Temp Control, DIN W96XH48mm, 2 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4W-B2CC Temperature Controller, DIN W96XH48mm, 2 Alarm+RS485, Current or SSR Dr ...	Autonics TK4W-B4CC Temp Control, DIN W96XH48mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4W-B4CN Temp Control, DIN W96XH48mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4W-B4CR Temp Control, DIN W96XH48mm, 2 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4W-B4RC Temp Control, DIN W96XH48mm, 2 Alarm+RS485, Relay Contact Output1, Curr ...	Autonics TK4W-B4RR Temp Control, DIN W96XH48mm, 2 Alarm+RS485, Relay Contact Output1, Rela ...	Autonics TK4W-B4SC Temp Control, DIN W96XH48mm, 2 Alarm+RS485, SSRP Voltage Output1, Curre ...	Autonics TK4W-B4SN Temp Control, DIN W96XH48mm, 2 Alarm+RS485, SSRP Voltage Output, 100-24 ...	Autonics TK4W-B4SR Temp Control, DIN W96XH48mm, 2 Alarm+RS485, SSRP Voltage Output1, Relay ...	Autonics TK4W-R2RN Temp Control, DIN W96XH48mm, Alarm output1 + Transmission output, Relay ...	Autonics TK4W-R4CC Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4W-R4CN Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4W-R4CR Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, Current or SSR Dr ...	Autonics TK4W-R4RC Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4W-R4RN Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4W-R4RR Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, Relay Contact Out ...	Autonics TK4W-R4SC Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4W-R4SN Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4W-R4SR Temp Control, DIN W96XH48mm, 1 Alarm+PV transmission, SSRP Voltage Outp ...	Autonics TK4W-T4CC Temp Control, DIN W96XH48mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4W-T4CN Temp Control, DIN W96XH48mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4W-T4CR Temp Control, DIN W96XH48mm, 1 Alarm+RS485, Current or SSR Drive Output ...	Autonics TK4W-T4RC Temp Control, DIN W96XH48mm, 1 Alarm+RS485, Relay Contact Output1, Curr ...	Autonics TK4W-T4RR Temp Control, DIN W96XH48mm, 1 Alarm+RS485, Relay Contact Output1, Rela ...	Autonics TK4W-T4SC Temp Control, DIN W96XH48mm, 1 Alarm+RS485, SSRP Voltage Output1, Curre ...	Autonics TK4W-T4SN Temp Control, DIN W96XH48mm, 1 Alarm+RS485, SSRP Voltage Output, 100-24 ...	Autonics TK4W-T4SR Temp Control, DIN W96XH48mm, 1 Alarm+RS485, SSRP Voltage Output1, Relay ...	Autonics TK4S-12CC Temp Control, 1/16 DIN, 1 Alarm, Current or SSR Drive Output 1, Current ...	Autonics TK4S-T2RN Temp Control, 1/16 DIN, 1 Alarm+RS485, Relay Output1, 24VAC 50/60Hz, 24 ...	Autonics TK4S-R2RN Temp Control, 1/16 DIN, Alarm output1 + Transmission output, Relay Cont ...	Autonics TK4L-T2RR Temp Control, DIN W96XH96mm, 1 Alarm+RS485, Relay Contact Output, 24VAC	Autonics TK4L-T2RN Temp Control, DIN W96XH96mm, 1 Alarm+RS485, Relay Contact Output, 24VAC	Autonics TK4M-12CN Temp Control, DIN W72XH72mm, 1 Alarm, Current or SSR Drive Output, 24VA ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics TK4S-14SR Accessories

Choose a Category

Cables - Misc

for the Autonics TK4S-14SR

Autonics SCM-US Communication Serial cable,9600bps,distance:1.5M,5VDC

Catalog: SCM-US

(0)

In Stock!

Add to Cart

Autonics TK4S-14SR Temperature Controllers Series

Temparature Control, 1/16 DIN, 1 Alarm, SSRP Voltage Output1, Relay Contact Output 2, 100-240VAC
New line-up: AC/DC low voltage type (except TK4N models)
50 ms high-speed sampling rate and ±0.3% display accuracy
Simultaneous heating and cooling control function
Automatic/manual control option

The TK series high accuracy type standard PID temperature controllers feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control in any required application.

Ordering Information

50 ms High-Speed Sampling Rate

Simultaneous Heating & Cooling Control

Switch Between Current Output and SSR Drive Output

SSR Drive Output (SSRP Function) Control Options

Terminal Protection Cover (TK4N)

Application

Autonics TK Series General Specifications
Series		TK4N	TK4SP	TK4S	TK4M	TK4W	TK4H	TK4L
Power supply	AC voltage	100-240VAC 50/60Hz
	AC/DC voltage	—	24VAC 50/60Hz, 24-48VDC
Allowable voltage range		90 to 110% of rated voltage
Power consumption	AC voltage	Max. 6VA	Max. 8VA
	AC/DC voltage	—	Max. 8VA(24VAC 50/60Hz), Max. 5W(24-48VDC)
Display method		7 Segment (PV: red, SV: green), Other display part (green, yellow, red) LED method
Character size	PV (W×H)	4.5×7.2mm	7.0×14.0mm		9.5×20.0mm	8.5×17.0mm	7.0×14.6mm	11.0×22.0mm
	SV (W×H)	3.5×5.8mm	5.0×10.0mm		7.5×15.0mm	6.0×12.0mm	6.0×12.0mm	7.0×14.0mm
Input type	RTD	JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel 120Ω (6 types)
	Thermocouple	K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types)
	Analog	Voltage: 0-100mV, 0-5V, 1-5V, 0-10V (4 types) / Current: 0-20mA, 4-20mA (2 types)
Display accuracy	RTD	• At room temperature (23°C±5°C): (PV ±0.3% or ±1°C, select the higher one) ±1digit^1 • Out of room temperature range: (PV ±0.5% or ±2°C, select the higher one) ±1digit In case of TK4SP Series, ±1°C will be added.
	Thermocouple
	Analog	• At room temperature (23 °C±5 °C): ±0.3% F.S. ±1digit • Out of range of room temperature: ±0.5°C% F.S. ±1digit
	CT input	±5% F.S. ±1digit
Control output	Relay	OUT1, OUT2: 250VAC 3A 1a
	SSR	11VDC±2V 20mA Max.
	Current	DC4-20mA or DC0-20mA selectable (load 500Ω Max.)
Alarm output	Relay	AL1, AL2 Relay: 250VAC 3A 1a *TK4N AL2: 250VAC 0.5A 1a (Max.125VA), TK4SP has only AL1.
Option output	Transmission	DC4-20mA (load 500Ω Max., Accuracy: ±0.3% F.S.)
	Communication	RS485 communication output (Modbus RTU)
Option output	CT input	0.0-50.0A (primary heater current value measuring range) *CT ratio = 1/1000 (except TK4SP)
	Digital input	• Contact Input: ON - Max. 2kΩ, OFF - Min. 90kΩ • Non-contact Input: ON - Residual votage max. 1.0V, OFF - Leakage current max. 0.1mA • Outflow current: Approx. 0.5mA *TK4S/M-1EA (TK4S-D[][][]-2EA, TK4SP-None), TK4N/H/W/L-2EA
Control type	Heating, cooling	ON/OFF, P, PI, PD, PID control
	Heating and cooling
Hysteresis		• Thermocouples / RTD: 1 to 100°C/°F (0.1 to 100.0°C/°F) variable • Analog: 1 to 100digit
Proportional band (P)		0.1 to 999.9°C/°F(0.1 to 999.9%)
Integral time (I)		0 to 9999 sec.
Derivative time (D)		0 to 9999 sec.
Control period (T)		Relay output, SSR drive output: 0.1 to 120.0 sec., Current output or SSR drive output selectable: 1.0 to 120.0 sec.
Manual reset value		0.0 to 100.0%
Sampling period		50ms
Dielectric strength		2,000VAC 50/60Hz for 1min. (between power source terminal and input terminal)
Vibration		0.75mm amplitude at frequency of 5 to 55Hz (for 1min.) in each X, Y, Z, direction for 2 hours
Relay life cycle	Mechanical	OUT1/2: Over 5,000,000 times, AL1/2: Over 20,000,000 times (TK4H/W/L: Over 5,000,000 times)
	Electrical	OUT1/2: Over 200,000 times, AL1/2: Over 100,000 times (TK4H/W/L: Over 200,000 times)
Insulation resistance		Min. 100MΩ (at 500VDC megger)
Noise resistance		±2kV R-phase, S-phase the square wave noise (pulse width: 1us) by the noise simulator
Memory retention		Approx. 10 years (when using non-volatile semiconductor memory type)
Environment	Ambient temperature	-10 to 50°C, storage: -20 to 60°C
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Protection structure		IP65 (Front panel) *TK4SP: IP50 (Front panel)
Insulation type		Double insulation or reinforced insulation (Mark:[], Dielectric strength between the measuring input part and the power part: 2kV)
Weight ^*2		Approx. 140g (Approx. 70g)	Approx. 130g (Approx. 85g)	Approx. 150g (Approx. 105g)	Approx. 210g (Approx. 140g)	Approx. 211g (Approx. 141g)		Approx. 294g (Approx. 198g)
1: • At room temperature (23°C±5°C) • Thermocouple K, J, T, N, E type, below -100°C / Thermocouple L, U, PL_\|\| type, RTD Cu50Ω, DPt50Ω :(PV ±0.3% or ±2°C, select the higher one) ±1digit • Thermocouple C, G, R, S type, below 200°C: (PV ±0.3% or ±3°C, select the higher one) ±1digit • Thermocouple B type, below 400 °C: There is no accuracy standards. • Out of room temperature range • RTD Cu50Ω, DPt50Ω: (PV ±0.5% or ±3°C, select the higher one) ±1digit • Thermocouple R, S, B, C, G type: (PV ±0.5% or ±5 °C, select the higher one) ±1digit • Others, Below -100°C: Within ±5 °C In case of TK4SP Series, ±1°C will be added to the degree standard. 2: The weight includes packaging. The weight in parentheses is for unit only. *Environment resistance is rated at no freezing or condensation.
