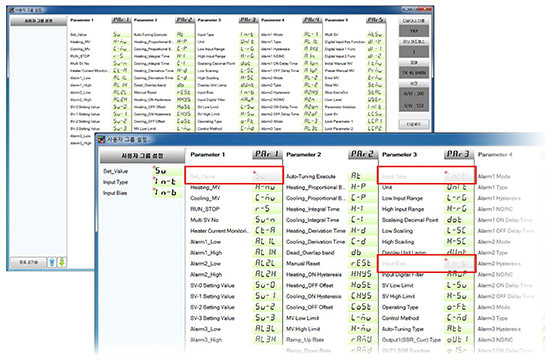

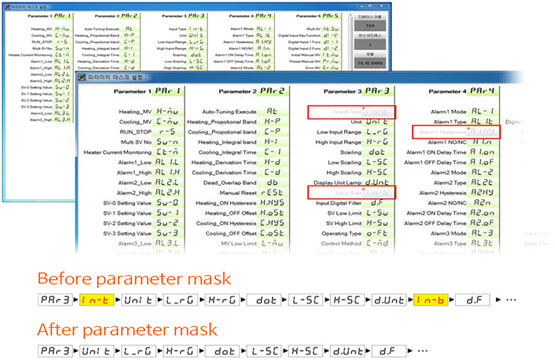

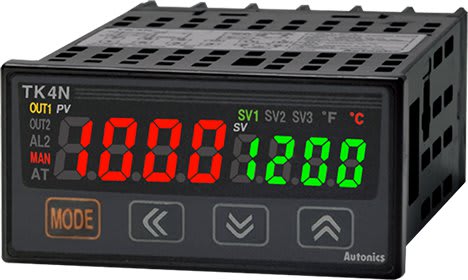

| Display method |
4-digit 7-segment LED |
| Control method |
ON/OFF control, P, PI, PD, PID control |
| Input specification |
Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω
Analog: 0-100mV, 0-5V, 1-5V, 0-10V
0-20mA, 4-20mA |
| Sampling cycle |
50ms |
| Control output 1 |
SSR drive(11VDC ) [ON/OFF, phase, cycle] |
| Option input |
Digital(DI-1/2) |
| Option output |
Alarm 1 |
| Power supply |
100-240VAC~ 50/60Hz |
| Protection structure |
IP65(front panel) |
| Protection structure |
 |
| Display accuracy RTD |
• At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit
• Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| |
| Display accuracy Thermocouple |
• At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit
• Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy Analog |
• At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit
• Out of range of room temperature: ±0.5℃% F.S. ±1-digit |
| Display accuracy CT input |
±5% F.S. ±1-digit |
| Hysteresis(adjustable sensitivity) |
RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit |
| Proportional band |
0.1 to 999.9℃/℉(0.1 to 999.9%) |
| Integral time |
0 to 9999 sec |
| Derivative time |
0 to 9999 sec |
| Control period |
Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset |
0.0 to 100.0% |
| Environment Ambient temperature |
-10 to 50℃, storage: -20 to 60℃ |
| Environment Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Insulation type |
Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 2kV) |
| Weight |
Approx. 140g(approx. 70g) |
