Autonics TCN4S-22R-P Economical Dual Display type, PID Control

Name: Autonics TCN4S-22R-P Economical Dual Display type, PID Control
Brand: Autonics
SKU: AutonicsTCN4S-22R-P
Price: 133.00 USD
Availability: InStock

0 reviews | Model: Autonics TCN4S-22R-P

Autonics TCN4S Dual Display, PID Control Temperature Controller

Compare

Temp Control, 1/16 DIN, Dual display 4 Digit, PID Control, Relay and SSR Output, 2 Alarm Output, Connector Plug Connection, 24VAC/24-48VDC

Dual display 4 Digit, PID Control, Relay and SSR Output, 2 Alarm Output,Connector Plug Connection, 24VAC/24-48VDC
Realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling
Built-in relay output or SSR drive output selectable: Enables to phase control and cycle controlwith SSR drive output (SSRP function)
Dramatically increased visibility using wide display part
Enhanced convenience of wiring and maintenance by connector plug type (TCN4S- -P)
Mounting space saving with compact design: Approx. 38% reduced size compared with existing model (depth-based)

Applications

Temperature Controlling in Tire production catapulting lines

View Product Details

Your Price: $133.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics TCN4S-22R-P Temp Control, 1/16 DIN, Dual display 4 Digit, PID Control, Relay and ...	Autonics TCN4H-24R Temp Control, 1/8DIN, Dual display 4 Digit, PID Control, Relay and SSR ...	Autonics TCN4L-24R Temp Control, 1/4DIN, Dual display 4 Digit, PID Control, Relay and SSR ...	Autonics TCN4M-22R Temp Control, W72 x H72, Dual display 4 Digit, PID Control, Relay and S ...	Autonics TCN4M-24R Temp Control, W72 x H72, Dual display 4 Digit, PID Control, Relay and S ...	Autonics TCN4S-22R Temp Control, 1/16 DIN, Dual display 4 Digit, PID Control, Relay and SS ...	Autonics TCN4H-22R Temp Control, 1/8DIN, Dual display 4 Digit, PID Control, Relay and SSR ...	Autonics TCN4S-24R Temp Control, 1/16 DIN, Dual display 4 Digit, PID Control, Relay and SS ...	Autonics TCN4L-22R Temp Control, 1/4DIN, Dual display 4 Digit, PID Control, Relay and SSR ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

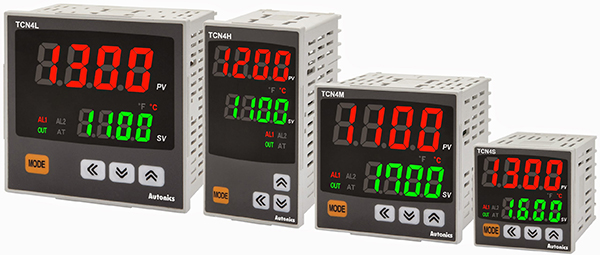

Autonics TCN Series Dual Display PID Control Temperature Controller

Dual Display, PID Control Temperature Controller

TCN Series is economical temperature controllers having dual preset indicator display to increase user convenience. The series realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling; in addition, the series allows users to take advantage of economical controlling with SSRP and relay outputs. The TCN Series is also available in low voltage models for wider user options.

Applications

Temperature Controlling in Tire production catapulting lines

Autonics TCN Series

Connections

*TCN4 Series has selectable control output; Relay output, and SSR drive output. AC/DC voltage type does not have SSRP function.

Dimensions

Panel cut-out

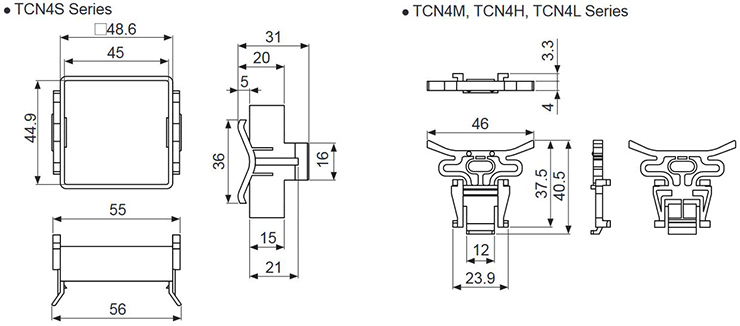

Bracket

Autonics TCN Series		TCN4S	TCN4M	TCN4H	TCN4L
Power supply	AC power	100-240VAC 50/60Hz
	AC/DC power	24VAC 50/60Hz, 24-48VDC
Allowable voltage range		90 to 110% of rated voltage
Power consumption	AC power	Max. 5VA (100-240VAC 50/60Hz)
	AC/DC power	Max. 5VA (24VAC 50/60Hz), Max. 3W (24-48VDC)
Display method		7 Segment (PV: red, SV: green), Other display (green, red) LED
Character size	PV (WxH)	7.0x15.0mm	9.5x20.0mm	7.0x14.6mm	11.0x22.0mm
	SV (WxH)	5.0x9.5mm	7.5x15.0mm	6.0x12.0mm	7.0x14.0mm
Input type	RTD	DPt100Ω, Cu50Ω (allowable line resistance max. 5Ω per a wire)
	Thermocouple	K (CA), J (IC), L (IC), T (CC), R (PR), S (PR)
Display accuracy^*1	RTD	• At room temperature (23 °C ±5°C ): (PV ±0.5% or ±1 °C, select the higher one) ±1digit • Out of room temperature range: (PV ±0.5% or ±2 °C, select the higher one) ±1digit For TCN4S-[ ]-P, add ±1 °C by accuracy standard.
	Thermocouple
Control output	Relay	250VAC 3A 1a
	SSR	12VDC ±2V 20mA Max.
Alarm output		AL1, AL2 Relay output: 250VAC 1A 1a
Control method		ON/OFF control, P, PI, PD, PID control
Hysteresis		1 to 100 °C/°F ( 0.1 to 50.0 °C/°F ) variable
Temperature Controller, 1/16 DIN, Dual display 4 Digit, PID Control, Relay & SSR Output, 2 Alarm Output, 24VAC/24-48 VDC
Type		Economical Dual Display
Power Supply		24 VAC / 24-48 VDC
Dimensions		48 x 48 mm
Control Output		Relay+SSR(AC/DC power), Relay+SSRP(AC power)
Alarm Output		Alarm1+Alarm2

Tech Specs

Temperature / PID Controllers
Type (Controllers)	Digital
Size Rectangular	1/16 DIN
Control Methods (Controllers)	On / Off, PID
Input Types (Controllers/Recorders)	T/C - RTD
Output Types (Controllers/Recorders)	Logic / SSR, Relay
# Digit Display	4
Display (Controllers)	LED
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Dual
Power Supply (Panel)	AC Volts, DC Volts
Test Equipment General Attributes
Safety Approval	CE
Product Weight	100 GRAMS (0.220 LBS)
Shipping Weight	147 GRAMS (0.324 LBS)
Country of Origin	Korea
