Autonics TCN4L-22R Economical Dual Display PID Temperature Controller

Name: Autonics TCN4L-22R Economical Dual Display PID Temperature Controller
Brand: Autonics
SKU: AutonicsTCN4L-22R
Price: 127.00 USD
Availability: InStock

0 reviews | Model: Autonics TCN4L-22R

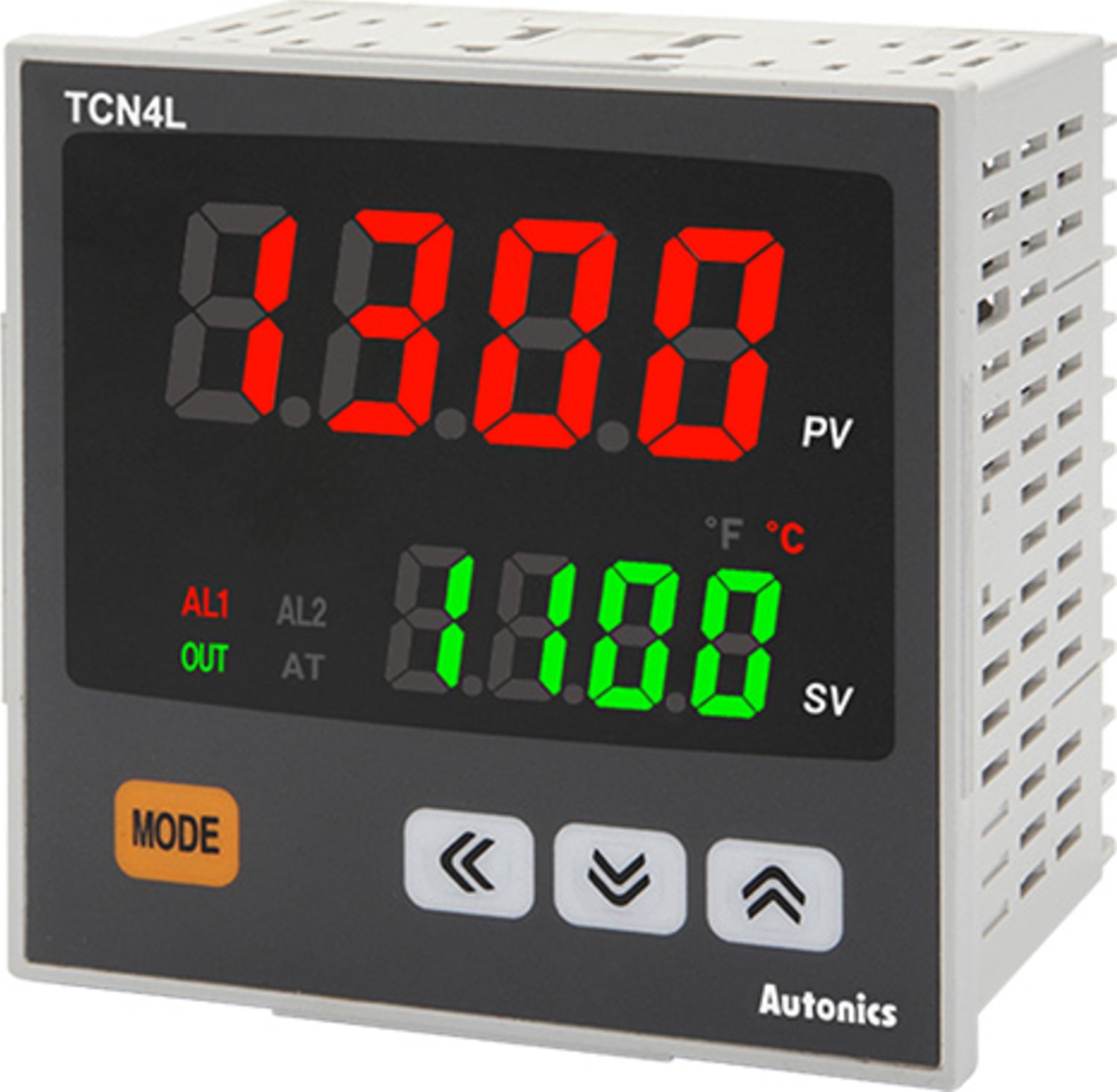

Autonics TCN4L Economical Dual Display PID Temperature Controller

Compare

Temp Control, 1/4DIN, Dual display 4 Digit, PID Control, Relay and SSR Output, 2 Alarm Output, 24 VAC,24-48VDC

Display method: 4-digit 7-segment LED
Control method: ON/OFF control, P, PI, PD, PID control
Input specification: Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC), RTD: DPt100Ω, Cu50Ω
Sampling cycle: 100ms
Control output: Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
Power supply: 24VAC~ 50/60Hz, 24-48VDC
Compact design with large display panels for easier reading
Connector plug types offer easier wiring and maintenance (TCN4S-◻-P)

View Product Details

Your Price: $127.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Autonics TCN4L-22R Temp Control, 1/4DIN, Dual display 4 Digit, PID Control, Relay and SSR ...	Autonics TCN4H-24R Temp Control, 1/8DIN, Dual display 4 Digit, PID Control, Relay and SSR ...	Autonics TCN4L-24R Temp Control, 1/4DIN, Dual display 4 Digit, PID Control, Relay and SSR ...	Autonics TCN4M-22R Temp Control, W72 x H72, Dual display 4 Digit, PID Control, Relay and S ...	Autonics TCN4M-24R Temp Control, W72 x H72, Dual display 4 Digit, PID Control, Relay and S ...	Autonics TCN4S-22R Temp Control, 1/16 DIN, Dual display 4 Digit, PID Control, Relay and SS ...	Autonics TCN4H-22R Temp Control, 1/8DIN, Dual display 4 Digit, PID Control, Relay and SSR ...	Autonics TCN4S-24R Temp Control, 1/16 DIN, Dual display 4 Digit, PID Control, Relay and SS ...	Autonics TCN4S-22R-P Temp Control, 1/16 DIN, Dual display 4 Digit, PID Control, Relay and ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics TCN4L-22R Economical Dual Display PID Temperature Controller

Display method: 4-digit 7-segment LED
Sampling cycle: 100ms
Control method: ON/OFF control, P, PI, PD, PID control
Control output: Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]

The TCN Series dual display PID temperature controllers offer excellent performance and cost-efficiency. The controllers offer a high-speed sampling rate of 100 ms and ±0.5% display accuracy. Relay output and SSR drive output are both supported. The TCN series models can simultaneously display PV and SV. The bright LED displays with large characters provide easy and clear value readings.

Applications

Food/beverage Manufacturing

Dual-speed PID temperature controllers are used to control the temperature of industrial food agitators.

Container Sealing Machines

Temperature controllers and solid state relays are used to control temperature of food container sealing machines.

Display method	4-digit 7-segment LED
Control method	ON/OFF control, P, PI, PD, PID control
Input specification	Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω
Sampling cycle	100ms
Control output	Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
Option output	Alarm 1/2
Power supply	24VAC~ 50/60Hz, 24-48VDC
Display accuracy_RTD	At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple	At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Hysteresis(adjustable sensitivity)	1 to 100℃/℉(0.1 to 50.0℃/℉) variable
Proportional band	0.1 to 999.9℃/℉
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	0.5 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
Weight	Approx. 275g(approx. 179g)

Temperature / PID Controllers
Type (Controllers)	Digital
Control Methods (Controllers)	PID
Input Types (Controllers/Recorders)	T/C - RTD
Output Types (Controllers/Recorders)	Logic / SSR, Relay
# Alarm Outputs (Controllers)	2
Display (Controllers)	LED
Special Application Controllers	Food Industry, Freezing / Defrosting
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Control / Alarm Setpoints	Yes
Test Equipment General Attributes
Safety Approval	CE
Product Weight	0.60 LBS
