| Economical PID Control |
| Series |

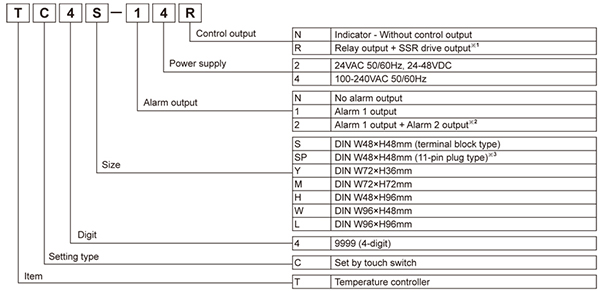

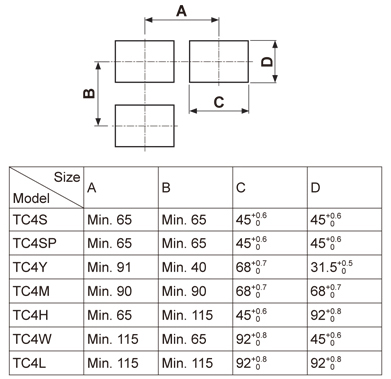

TC4S |
TC4SP |

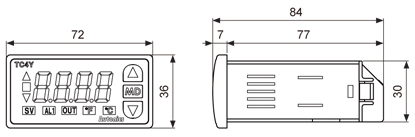

TC4Y |
TC4M |
TC4W |
TC4H |
TC4L |
| Control output |
Relay |
250VAC 3A 1a |
| SSR |
12VDC ±2V 20mA Max. |
| Alarm output |
AL1, AL2 Relay: 250VAC 1A 1a (※ TC4SP, TC4Y have AL1 only.) |
| Control method |
ON/OFF and P, PI, PD, PID control |
| Hysteresis |
1 to 100 °C/°F ( 0.1 to 50.0 °C/°F ) variable |
| Proportional band (P) |
0.1 to 999.9°C/°F |
| Integral time (I) |
0 to 9999 sec. |
| Derivative time (D) |
0 to 9999 sec. |
| Control period (T) |
0.5 to 120.0 sec. |
| Manual reset |
0.0 to 100.0% |
| Sampling period |
100ms |
| Dielectric strength |
AC power |
2,000VAC 50/60Hz for 1min. (between input terminal and power terminal) |
| AC/DC power |
1,000VAC 50/60Hz for 1min. (between input terminal and power terminal) |
| Vibration |
0.75mm amplitude at frequency of 5 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours |
| Relay life cycle |
Mechanical |
OUT: Over 5,000,000 operations, AL1/2: Over 5,000,000 operations |
| Electrical |
OUT: Over 200,000 operations (250VAC 3A resistive load)
AL1/2: Over 300,000 operations (250VAC 1A resistive load) |
| Insulation resistance |
Min. 100MΩ (at 500VDC megger) |
| Noise immunity |
Square-wave noise by noise simulator (pulse width 1us) ±2kV R-phase and S-phase |
| Memory retention |
Approx. 10 years (when using non-volatile semiconductor memory type) |
| Environment |
Ambient temperature |
-10 to 50 °C, Storage: -20 to 60 °C |
| Ambient humidity |
35 to 85%RH, Storage: 35 to 85%RH |
| Insulation type |
Double insulation or reinforced insulation (mark: [], Dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Weight※2 |
Approx. 141g
(approx. 94g) |
Approx. 123g
(approx. 76g) |
Approx. 174g
(approx. 85g) |
Approx. 204g
(approx. 133g) |
Approx. 194g
(approx. 122g) |
Approx. 194g
(approx. 122g) |
Approx. 254g
(approx. 155g) |
