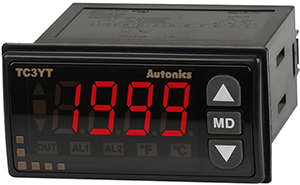

Autonics TC3YT-B4R16 Temperature Controller, W72 X H36 mm, on/off - Proportional, 3 Digit Display, Relay Output 16A, J, K, RTD input, 100-240 VAC

Name: Autonics TC3YT-B4R16 Temperature Controller, W72 X H36 mm, on/off - Proportional, 3 Digit Display, Relay Output 16A, J, K, RTD input, 100-240 VAC
Brand: Autonics
SKU: AutonicsTC3YT-B4R16
Price: 99.00 USD
Availability: InStock

0 reviews | Model: Autonics TC3YT-B4R16

Autonics TC3YT Simple Operation Type Series

Compare

Temp Control, W72 X H36 mm, on/off - proportional, 3 digit display, relay output 16A, J, K, RTD input, 100-240 VAC

Temp Control, W72 X H36 mm, on/off - proportional, 3 digit display, relay output 16A, J, K, RTD input, 100-240 VAC
Simple operation type
ON/OFF and proportional control
Input correction, offset correction, manual reset, cooling/heating operation functions
PV deviation indicator

View Product Details

Your Price: $99.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Autonics TC3YT-B4R16 Simple Operation Type Series

Temp Control, W72 X H36 mm, on/off - proportional, 3 digit display, relay output 16A, J, K, RTD input, 100-240 VAC
Simple operation type
ON/OFF and proportional control
Input correction, offset correction, manual reset, cooling/heating operation functions
PV deviation indicator

Temperature Controller, W72 X H36 mm, on/off - proportional, 3 digit display, relay output 16A, J, K, RTD input, 100-240 VAC. Input correction, offset correction, manual reset, cooling/heating operation functions.

Product Information

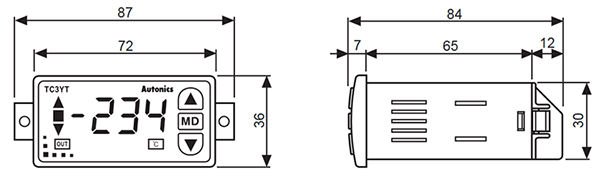

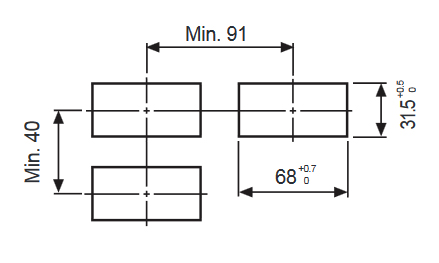

Dimensions Panel Cut-Out

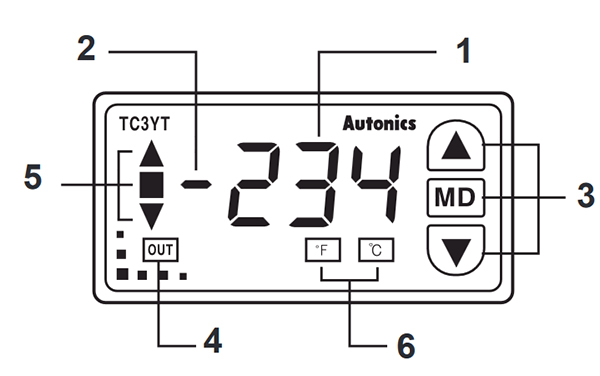

Unit Description

1. PV(Process value) display(Red)

2. Minus display(Red)

3. Controlling a set value(MD, UP, DOWN)

4. Display an operation of control output(Red)

5. Display a deviation between PV(Process value) and SV(Set value) : , (Red) / (Green)

6. PV(Process value) °C / °F unit display(Yellow)

General Specifications
Model		TC3YT-B4R3	TC3YT-B4R16
Power supply		100-240VAC 50/60Hz
Allowable voltage range		90 to 110% of rated voltage
Power consumption		Approx. 4VA
Display method		7Segment Red LED Display [Deviation "■" signal(Green), unit display(Yellow)]
Character size		W7.4 × H15mm
Input type*¹		TC:K(CA), J(IC), RTD: DPt100 Ω (DIN)
Control output		Relay output 250VAC 3A 1c	Relay output 250VAC 16A 1c
Control method		ON/OFF and proportional control (common use)
Hysteresis		1 to 100 °C
Proportional band		0 to 100 °C
Offset correction		0 to 100 °C
Control period		1 to 120sec
Display method		±1digit with a bigger one of ±0.5% of PV or ±1 °C
Setting type		Setting by front push buttons
Sampling period		500ms
Dielectric strength		2000VAC 60Hz for 1 minute(between external terminal and case)
Vibration		0.75mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 1 hour
Relay life cycle	Mechanical	Min.10,000,000 operations
	Malfunction	Min.100,000 operations(250VAC 3A resistive load)	Min.100,000 operations(250VAC 16A resistive load)
Insulation resistance		Min. 100MΩ(at 500VDC megger)
Noise strength		±2kV R-phase and S-phase (pulse width: 1μs)
Memory retention		Approx. 10 years (When using non-volatile semiconductor memory type)
Environment	Ambient temperature	-10 to 50 °C , storage: -20 to 60 °C
	Ambient humidity	35 to 85%RH
Protection		IP65
Approval
Unit weight		Approx. 99g	Approx. 103g
1:NTC sensor input is optional. Environment resistance is rated at no freezing or condensation.
