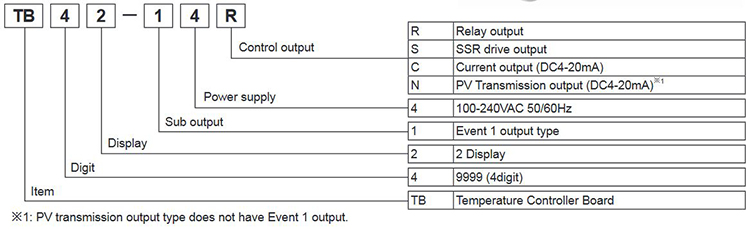

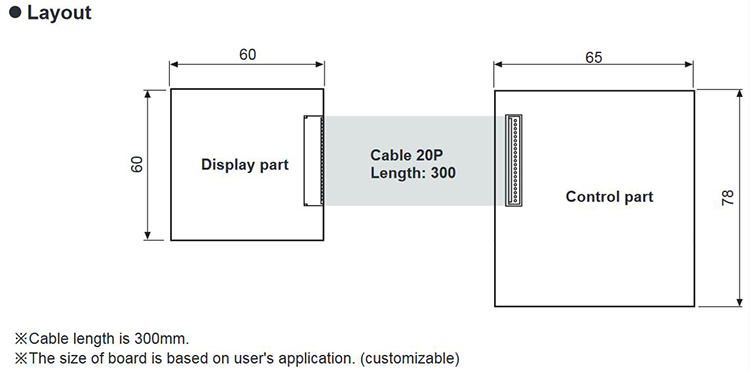

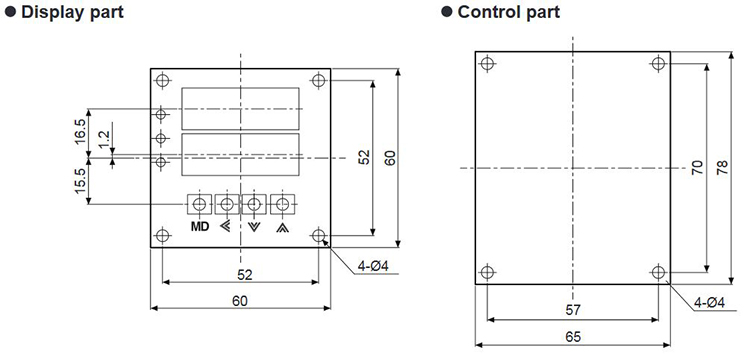

| Power supply |
100-240VAC 50/60Hz |
| Allowable voltage range |
90 to 110 of rated voltage |
| Power consumption |
Max. 5VA |

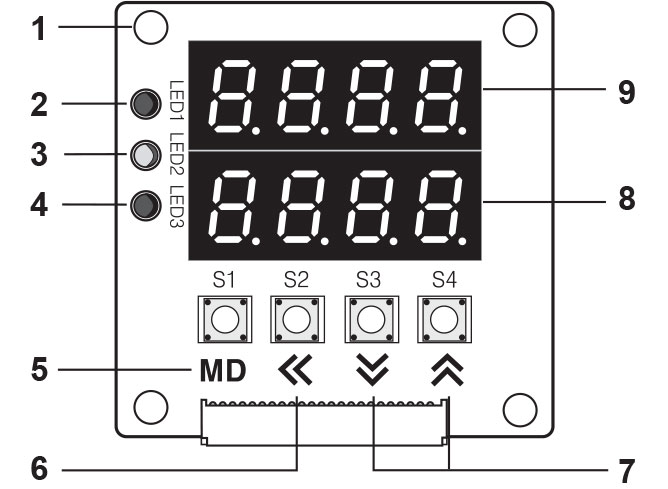

| Display method |
7 Segment (PV: green, SV: red) LED method |
| Character size (W×H) |
8×10mm |

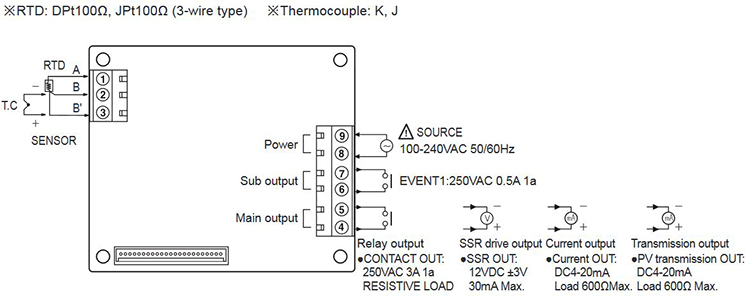

| Input Type |
RTD |
DPt100Ω [Allowable line resistance is max. 5Ω per a wire] |
| Thermocouple |
K (CA), J (IC) [Tolerance outer resistance is max. 100Ω] |
| Control Output |
Relay |
250VAC 3A 1a |
--- |
--- |
--- |
| SSR |
--- |
12VDC ±3V 30mA Max. |
--- |
--- |
| Current |
--- |
--- |
DC4-20mA (max. load 600Ω) |
--- |
| Transmission |
--- |
--- |
--- |
DC4-20mA (max. load 600Ω) |
| Sub output |
- Event 1 output: Relay output (250VAC 0.5A 1a) • Event 2 output: OK monitoring display by LED
|
| Control method |
ON/OFF control, P, PI, PD, PIDF, PIDS control |
| Setting type |
Front push buttons |
| Display accuracy |
F.S ± 0.3% or 3°C, select the higher one |
| Hysteresis |
1 to 100°C (0.1 to 100.0°C) variable (at ON/OFF control) |
| Proportional band (P) |
0.0 to 100.0% |
| Integral time (I) |
0 to 3600 sec. |
| Derivative time (D) |
0 to 3600 sec. |
| Control cycle (T) |
1 to 120 sec. |
| Sampling period |
0.5 sec. |
| Dielectric strength |
2,000VAC 50/60Hz for 1 minute (Between input and power terminal) |
| Vibration |
0.75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours |
| Relay Life Cycle |
Main Output |
Mechanical: Min. 10,000,000, Electrical: Min. 100,000 (250VAC 3A resistive load) |
| Sub Output |
Mechanical: Min. 20,000,000, Electrical: Min. 200,000 (250VAC 0.5A resistive load) |
| Insulation Resistance |
Min. 100MΩ (at 500VDC megger) |
| Noise Resistance |
±2kV the square wave noise (pulse width: 1µs) by the noise simulator |
| Memory Retention |
Approx. 10 years (when using non-volatile semiconductor memory type) |
| Environment |
Ambient Temperature |
-10 to 50°C, storage: -20 to 60°C |
| Ambient Humidity |
35 to 85%RH, storage: 35 to 85%RH |
| Unit Weight |
Approx. 113.5g |
