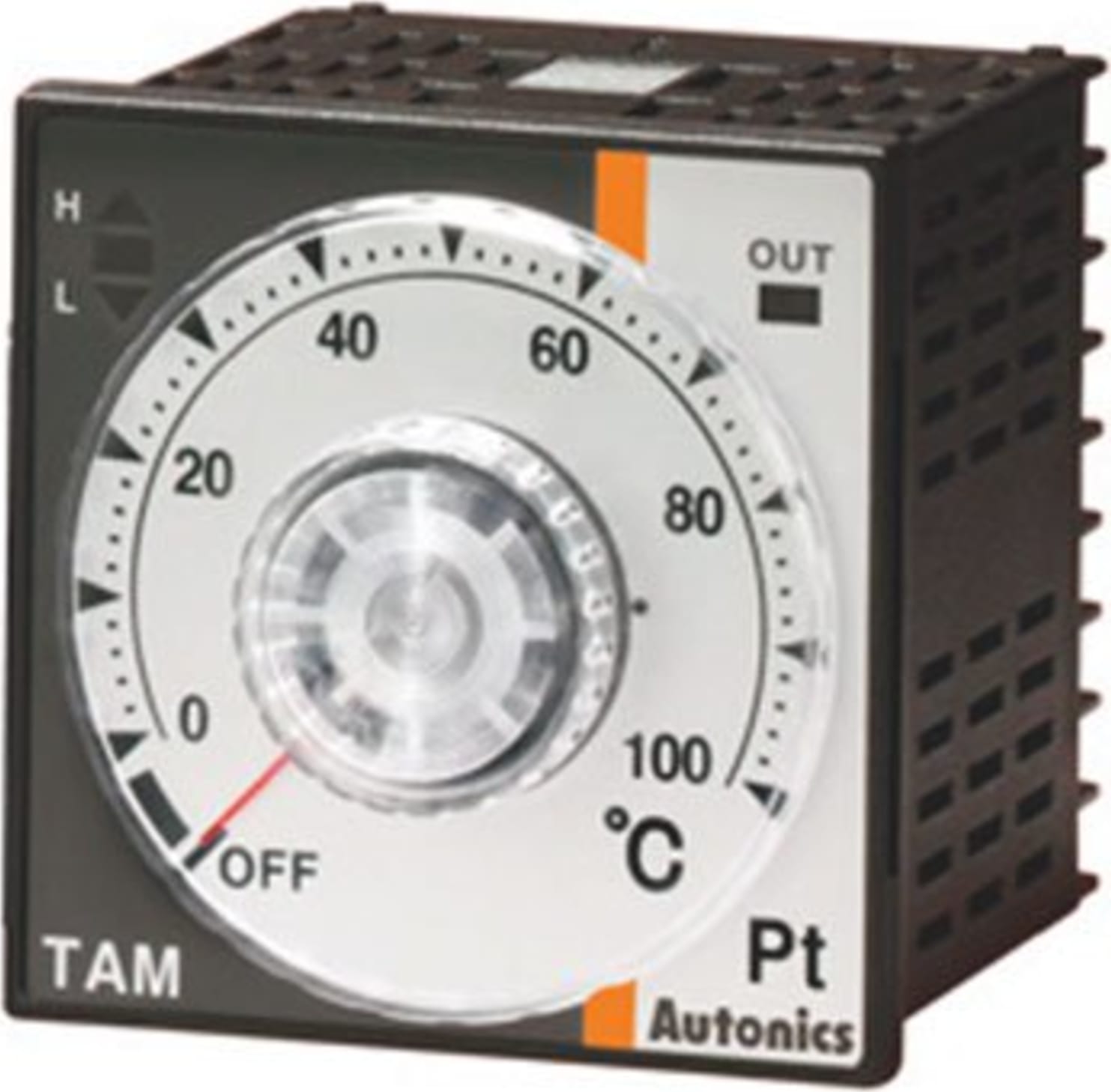

| TA Series Specifications |
| Series |
TAS |
TAM |
TAL |
| Power Supply |
100-240VAC 50/60Hz |
| Allowable voltage range |
90 to 110% of rated voltage |
| Power consumption |
Max. 4VA |
| Size |
DIN W48×H48mm |
DIN W72×H72mm |
DIN W96×H96mm |
| Display method |
Deviation LED (red, green), Output LED (red) |
| Setting type |
Dial setting |
| Setting accuracy*1 |
F.S. ±2% (room temperature 23℃±5℃) |
| Input Type |
| RTD |
DPt100Ω (allowable line resistance max. 5Ω per a wire) |
| Thermocouples |
K(CA), J(IC) |
| Control |
| ON/OFF Control |
Hysteresis: 2℃ fixed |
| PID Control |
Control period: Relay output - 20 sec / SSR drive output - 2 sec |
| Control Output |
| Relay |
250VAC 3A 1c |
| SSR |
12VDC±2V 20mA Max. |
| Functions |
PV deviation indicatable, Error indicatable |
| Sampling period |
100ms |
| Dielectric strength |
2,000VAC 50/60Hz for 1 min (between input terminal and power terminal) |
| Vibration |
0.75mm amplitude at frequency of 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Relay Life Cycle |
| Mechanical |
Min. 10,000,000 operations (18,000 operations/hr) |
| Electrical |
Min. 100,000 operations (900 operations/hr) |
| Insulation resistance |
Over 100MΩ (at 500VDC megger) |
| Noise immunity |
±2kV R-phase, S-phase the square wave noise (pulse width: 1us) by the noise simulator |
| Memory retention |
Approx. 10 years (when using non-volatile semiconductor memory type) |
| Environment |
| Ambient temperature |
-10 to 50℃, storage: -20 to 60℃ |
| Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH |
| Insulation type |
Double insulation or reinforced insulation (mark: Dielectric strength between the measuring input part and the power part: 2kV) |
| Weight*2 |
Approx. 112g (approx. 74g) |
Approx. 176g (approx. 114g) |
Approx. 237g (approx. 152g) |
