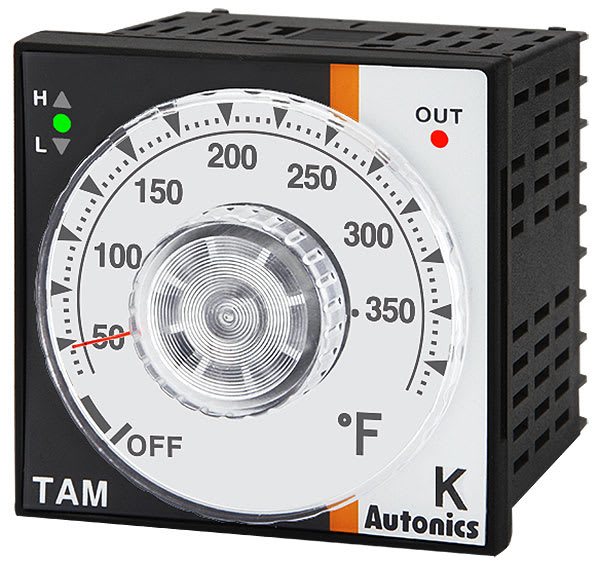

Autonics TAM-B4SK2F - Analog Non-Indicating Type PID Temperature Controller

Name: Autonics TAM-B4SK2F - Analog Non-Indicating Type PID Temperature Controller
Brand: Autonics
SKU: AutonicsTAM-B4SK2F
Price: 69.00 USD
Availability: InStock

0 reviews | Model: Autonics TAM-B4SK2F

Compare

Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermocouple, 32 to 392 F, 100-240 VAC

Size: DIN W72xH72mm
Display method: Non-display
Control method: ON/OFF control, PID control
Input specification: Thermocouple: K(CA)
Temperature unit: °F
Control output: SSR drive (12VDC) [ON/OFF]
Power supply: 100-240VAC~ 50/60Hz

View Product Details

Your Price: $69.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics TAM-B4SK2F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4RJ3C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, J Ther ...	Autonics TAM-B4RJ4C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, J Ther ...	Autonics TAM-B4RJ2C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, J Ther ...	Autonics TAM-B4RJ2F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, J Ther ...	Autonics TAM-B4RJ3F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, J Ther ...	Autonics TAM-B4RJ4F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, J Ther ...	Autonics TAM-B4RK1C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK1F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK2C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK2F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK4C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK4F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK6C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK6F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK8C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RK8F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RKCC Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RKCF Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, K Ther ...	Autonics TAM-B4RP0C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, RTD In ...	Autonics TAM-B4RP0F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, RTD In ...	Autonics TAM-B4RP1C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, RTD In ...	Autonics TAM-B4RP1F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, RTD In ...	Autonics TAM-B4RP2C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, RTD In ...	Autonics TAM-B4RP2F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, RTD In ...	Autonics TAM-B4RP4C Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, RTD In ...	Autonics TAM-B4RP4F Temp Control, DIN W72XH72mm, Analog, PID Control, Relay Output, RTD In ...	Autonics TAM-B4SJ2C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, J Thermo ...	Autonics TAM-B4SJ2F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, J Thermo ...	Autonics TAM-B4SJ3C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, J Thermo ...	Autonics TAM-B4SJ3F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, J Thermo ...	Autonics TAM-B4SJ4C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, J Thermo ...	Autonics TAM-B4SJ4F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, J Thermo ...	Autonics TAM-B4SP1F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, RTD Inpu ...	Autonics TAM-B4SK1C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SK1F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SK2C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SK4C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SK4F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SP2C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, RTD Inpu ...	Autonics TAM-B4SP2F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, RTD Inpu ...	Autonics TAM-B4SP4C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, RTD Inpu ...	Autonics TAM-B4SP4F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, RTD Inpu ...	Autonics TAM-B4SK6C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SK6F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SK8C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SK8F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SKCC Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SKCF Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, K Thermo ...	Autonics TAM-B4SP0C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, RTD Inpu ...	Autonics TAM-B4SP0F Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, RTD Inpu ...	Autonics TAM-B4SP1C Temp Control, DIN W72XH72mm, Analog, PID Control, SSR Output, RTD Inpu ...
Price
In Stock
Type (Controllers)	Analog			Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog
Size Rectangular	Other			Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other
Control Methods (Controllers)	On / Off, PID			On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID	On / Off, PID
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics TAM-B4SK2F - Analog Non-Indicating Type PID Temperature Controller

TA Series

Size: DIN W72xH72mm
Display method: Non-display
Control method: ON/OFF control, PID control
Input specification: Thermocouple: K(CA)
Temperature unit: °F
Control output: SSR drive (12VDC) [ON/OFF]
Power supply: 100-240VAC~ 50/60Hz

The TA series temperature controllers offer simple and accurate temperature control with analog dial. The controllers are capable of auto-tuning PID temperature control and ON/OFF control, toggled through an external switch. The LED deviation and control output indicators provide clear status display.

Auto-tuning PID temperature control
PID and ON/OFF control : toggle via external switch
Deviation indicators (green, red LED)
Control output indicator (red LED)
Stop control output function using analog dial
Sensor disconnect display function
Built-in microprocessor

TA Series Specifications
Series	TAS	TAM	TAL
Power Supply	100-240VAC 50/60Hz
Allowable voltage range	90 to 110% of rated voltage
Power consumption	Max. 4VA
Size	DIN W48×H48mm	DIN W72×H72mm	DIN W96×H96mm
Display method	Deviation LED (red, green), Output LED (red)
Setting type	Dial setting
Setting accuracy^*1	F.S. ±2% (room temperature 23℃±5℃)
Input Type
RTD	DPt100Ω (allowable line resistance max. 5Ω per a wire)
Thermocouples	K(CA), J(IC)
Control
ON/OFF Control	Hysteresis: 2℃ fixed
PID Control	Control period: Relay output - 20 sec / SSR drive output - 2 sec
Control Output
Relay	250VAC 3A 1c
SSR	12VDC±2V 20mA Max.
Functions	PV deviation indicatable, Error indicatable
Sampling period	100ms
Dielectric strength	2,000VAC 50/60Hz for 1 min (between input terminal and power terminal)
Vibration	0.75mm amplitude at frequency of 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Relay Life Cycle
Mechanical	Min. 10,000,000 operations (18,000 operations/hr)
Electrical	Min. 100,000 operations (900 operations/hr)
Insulation resistance	Over 100MΩ (at 500VDC megger)
Noise immunity	±2kV R-phase, S-phase the square wave noise (pulse width: 1us) by the noise simulator
Memory retention	Approx. 10 years (when using non-volatile semiconductor memory type)
Environment
Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Insulation type	Double insulation or reinforced insulation (mark: Dielectric strength between the measuring input part and the power part: 2kV)
Weight^*2	Approx. 112g (approx. 74g)	Approx. 176g (approx. 114g)	Approx. 237g (approx. 152g)

*1: Out of room temperature range: Below 100℃ model is F.S. ±4%, Over 100℃ model is F.S. ±3%
*2: The weight includes packaging. The weight in parenthesis is for unit only.
*Environment resistance is rated at no freezing or condensation.

Temperature / PID Controllers
Type (Controllers)	Analog
Size Rectangular	Other Size Rectangular DIN W72×H72mm
Control Methods (Controllers)	On / Off, PID
Input Types (Controllers/Recorders)	T/C - RTD
Output Types (Controllers/Recorders)	Relay
Max # Control Outputs	12VDC
Sampling Interval (Controllers/Recorders)	100 ms (100 MILISECONDS)
Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Rectangular/Square
Input (Panel Meters)	Temperature
Test Equipment General Attributes
Safety Approval	CE, RoHS, UL
Product Weight	0.24 LBS
Country of Origin	Korea
