Autonics T4WM-N3NP0C - 5-Channel Digital Temperature Indicator

Name: Autonics T4WM-N3NP0C - 5-Channel Digital Temperature Indicator
Brand: Autonics
SKU: AutonicsT4WM-N3NP0C
Price: 215.00 USD
Availability: InStock

0 reviews | Model: Autonics T4WM-N3NP0C

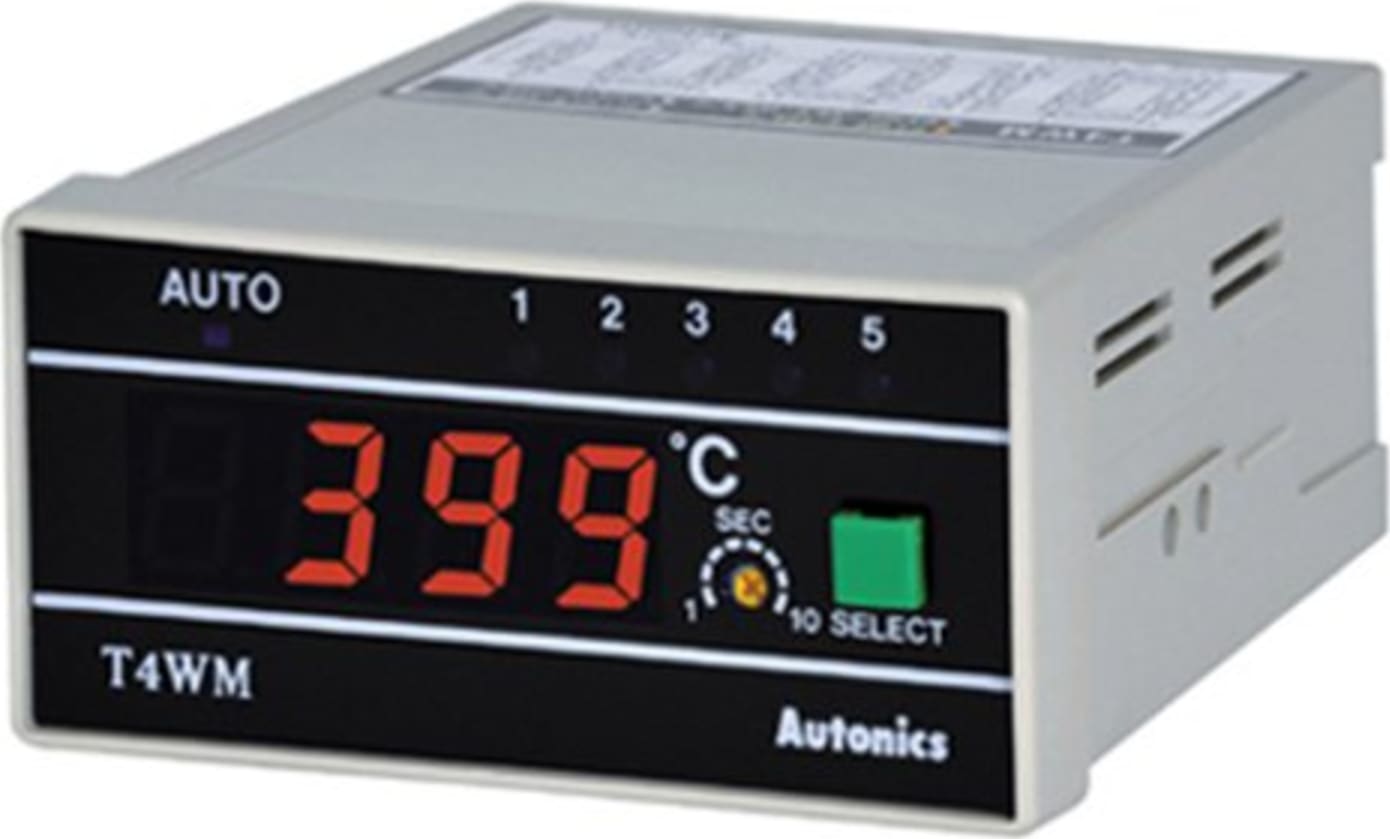

Autonics T4WM 5 Point Input Type Temperature Indicator Series

Compare

Temperature Indicator, W96xH48mm, 5 Inputs, RTD Input, -99.9 to 199.9 C, 110 and 220 VAC

Temperature Indicator, W96xH48mm, 5 Inputs, RTD Input, -99.9 to 199.9 C, 110 and 220 VAC
Indication type only
High accuracy measurement: F.S. ±0.5%
5-Point temperature measurement
Automatic or manual display of temperature in each point

View Product Details

Your Price: $215.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics T4WM-N3NP0C Temperature Indicator, W96xH48mm, 5 Inputs, RTD Input, -99.9 to 199.9 ...
Price
In Stock
Compare	Add to compare

Recommended for you

Autonics T4WM-N3NP0C - 5-Channel Digital Temperature Indicator

T4WM Series

Digital temperature indicators
High accuracy measurement and display: ±0.5%
5-channel temperature display
Auto/manual channel switching

The T4WM digital temperature indicators can display up to 5 input channels from separate sensors. The units feature high accuracy measurement and display of ±0.5% and users can select auto or manual channel switching based on preference. Auto switching time interval can be set up to 10 seconds.

Series		T4WM
Power supply		110/220VAC 50/60Hz
Allowable voltage range		90 to 110% of rated voltage
Power consumption		Max. 3VA
Display method		7 Segment LED method
Character size (W×H)		9.8×14.2mm
Display accuracy		F.S. ±0.5% rdg ±1digit
Input sensor		Thermocouples: K (CA), J (IC) / RTD: DPt100Ω
Input line resistance		Thermocouples: Max. 100Ω / RTD: Allowable line resistance max. 5Ω per a wire
Connectable sensors		5EA (thermocouple, RTD are not used as mixed)
Channel switch		Selectable Auto/Manual switching
Auto switching time		Variable 1 to 10 sec. (by built-in VR)
Insulation resistance		Min. 100MΩ (at 500VDC megger)
Dielectric strength		2,000VAC 50/60Hz for 1 min.
Noise strength		±1kV the square wave noise (pulse width: 1µs) by the noise simulator
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 1 hour
	Malfunction	0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 10 min.
Shock	Mechanical	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
	Malfunction	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Environment	Ambient Temp.	-10 to 50°C, storage:-25 to 65°C
	Ambient Humi.	35 to 85%RH
Unit Weight		Approx. 322g
