Autonics T3NI-N4NPOC-N Temperature Indicator, W48xH24mm, RTD Thermocouple Input, -99 to 199 C, 12-24VDC

Name: Autonics T3NI-N4NPOC-N Temperature Indicator, W48xH24mm, RTD Thermocouple Input, -99 to 199 C, 12-24VDC
Brand: Autonics
SKU: AutonicsT3NI-N4NPOC-N
Price: 94.95 USD
Availability: InStock

0 reviews | Model: Autonics T3NI-N4NPOC-N

Compare

Temperature Indicator, W48xH24mm, RTD Input, -99 to 199 C, 12-24 VDC

Display method: 3-digit 7-segment LED
Input specification: RTD DPt100Ω
Sampling cycle: 100ms
Control output: Indicator
Display range: 0 to 200°C

View Product Details

List Price: $94.95

In Stock:

View Payment Options

Recommended for you

Autonics T3/T4 Series Temperature Indicator

Digital Temperature Indicators

The T3/T4 series digital temperature indicators provide accurate temperature display with simple operation. The indicators feature highly accurate temperature measurement and are available in various sizes for installation flexibility. Upgraded features include a revamped design and reduced size.

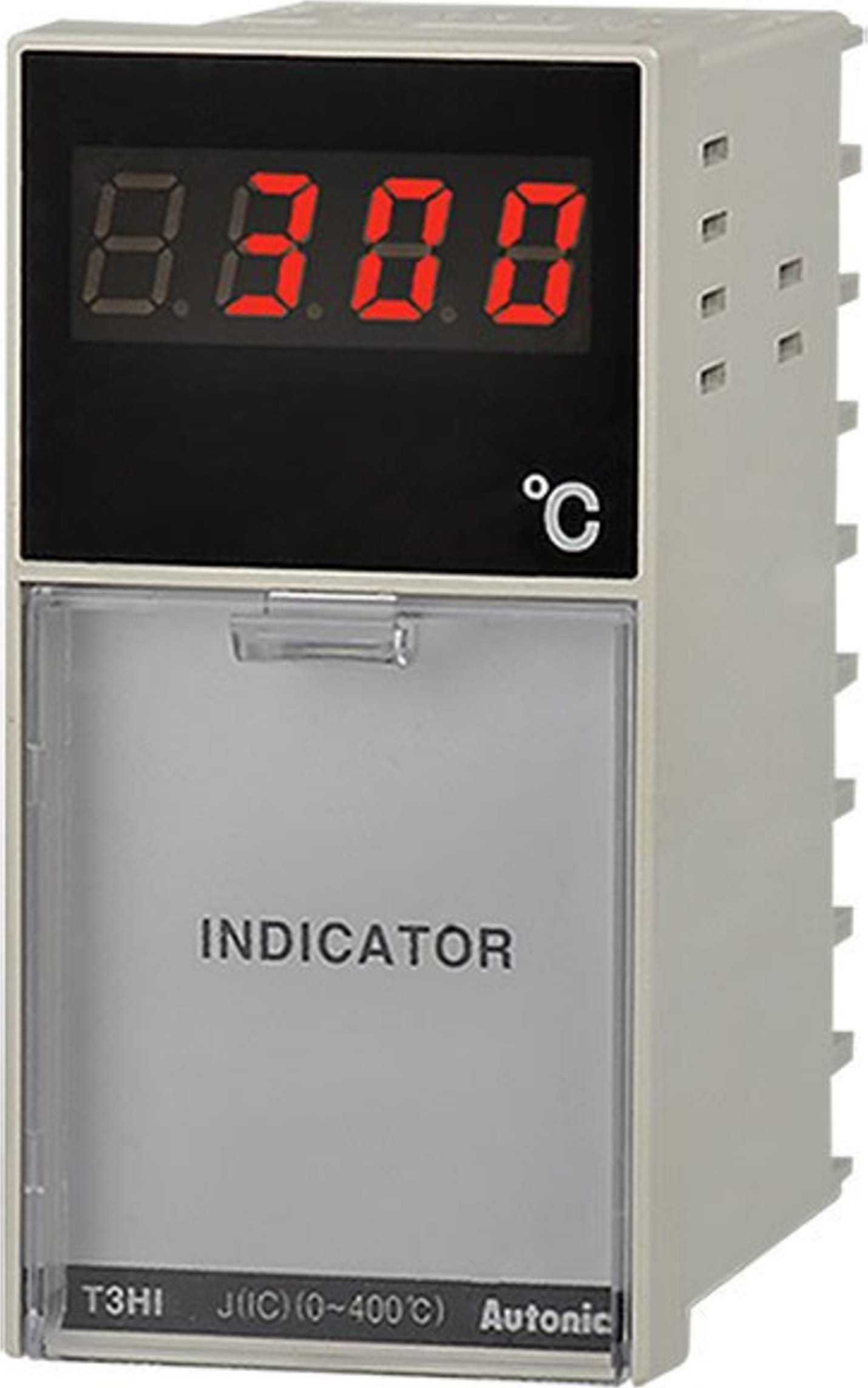

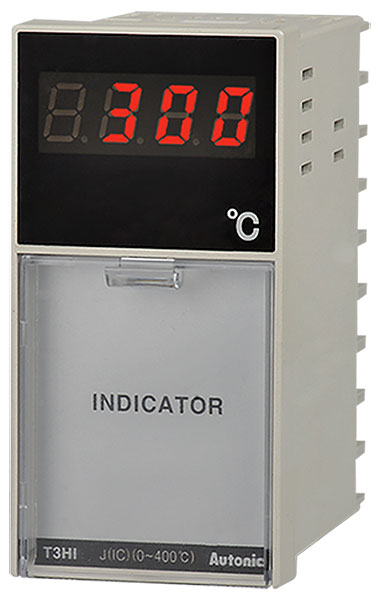

*Image for reference only, may not be the exact model

Ordering Information

※1: Name plate and connections are different from previous T3/T4 Series.
※2: Sockets (PG-08, PS-08(N)) are sold separately.
※3: Input type and temperature range by Series

Connections

※Use teminals of size specified below.

• T3NI	• T4YI
• T4WI
• T3SI	• T4MI
• T3HI, T4LI

Dimensions

• T3NI

• T4YI

• T4WI

• T3SI

• T3HI

• T4MI

• T4LI

• Bracket

• Terminal cover (sold separately)

• Panel cut-out

unit: mm

Size	A	B	C	D
Series	A	B	C	D
T3NI	Min. 55	Min. 37	45^+0.5	22.2^+0.3
T4YI	Min. 91	Min. 40	65^+0.7	31.5^+0.6
T4WI	Min. 116	Min. 52	92^+0.8	45^+0.6
T3SI	Min. 65	Min. 65	45^+0.6	45^+0.6
T3HI	Min. 65	Min. 115	45^+0.6	92^+0.8
T4MI	Min. 90	Min. 90	68^+0.7	68^+0.7
T4LI	Min. 115	Min. 115	92^+0.8	92^+0.8

Autonics T3/T4 (Indicator) Series General Specifications
Model		T3NI	T4YI	T4WI	T3SI	T3HI	T4MI	T4LI
Power supply		12-24VDC	100-240VAC 50/60Hz	110-220VAC 50/60Hz	100-240VAC 50/60Hz	100-240VAC~ 50/60Hz
Allowable voltage range		90 ~ 110% of rated voltage
Power consumption		Max. 1W	Max. 3VA
Display method		7 Segment LED Display
Character size (W×H)		3.8×7.6mm	8.0×14.2mm		3.8×7.6mm	6.0×10.0mm		8.0×14.2mm
Input type	RTD	DPt100Ω (allowable line resistance max. 5Ω per a wire)
	TC	K(CA), J(IC)					K(CA), J(IC), R(PR)
Display accuracy^※1	RTD	●At room temperature (23ºC ± 5ºC): (PV ± 0.5% or ±1ºC, select the higher one)±1-digit ●Out of room temperature range: (PV± 0.5% or ±2ºC, select the higher one)±1-digit
	TC
Sampling period		100ms
Dielectric strength		1,000VAC 50/60Hz for 1 min (between input terminal and power terminal)	2,000VAC 50/60Hz for 1 min (between input terminal and power terminal)
Vibration		0.75mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Insulation resistance		Over 100MΩ (at 500VDC megger)
Noise immunity		Square-wave noise by noise simulator (pulse width 1㎲) ±500V R-phase and S-phase	Square-wave noise by noise simulator (pulse width 1㎲) ±2kV R-phase and S-phase
Environment	Ambient temp.	-10 to 50℃, storage: -20 to 6°C
	Ambient humi.	35 to 85% RH, storage: 35 to 85% RH
Weight^※2		Approx. 48g (approx. 25g)	Approx. 181g (approx. 123g)	Approx. 231g (approx. 140g)	Approx. 120g (approx. 80g)	Approx. 203g (approx. 137g)	Approx. 202g (approx. 137g)	Approx. 274g (approx. 185g)

※1: In case of the T3NI, T3SI Series and the decimal point display models

At room temperature (23ºC±5ºC): (PV ±0.5% or ±2℃, select the higher one)±1-digit

Out of room temperature range: (PV ±0.5% or ±3℃, select the higher one)±1-digit
※2: The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.

Tech Specs

Temperature / PID Controllers
Type (Controllers)	Digital
Input Types (Controllers/Recorders)	T/C - RTD
# Digit Display	3
Sampling Interval (Controllers/Recorders)	100 ms (100 MILISECONDS)
Display (Controllers)	LED
Test Equipment General Attributes
Product Weight	0.30 LBS
Country of Origin	Korea
